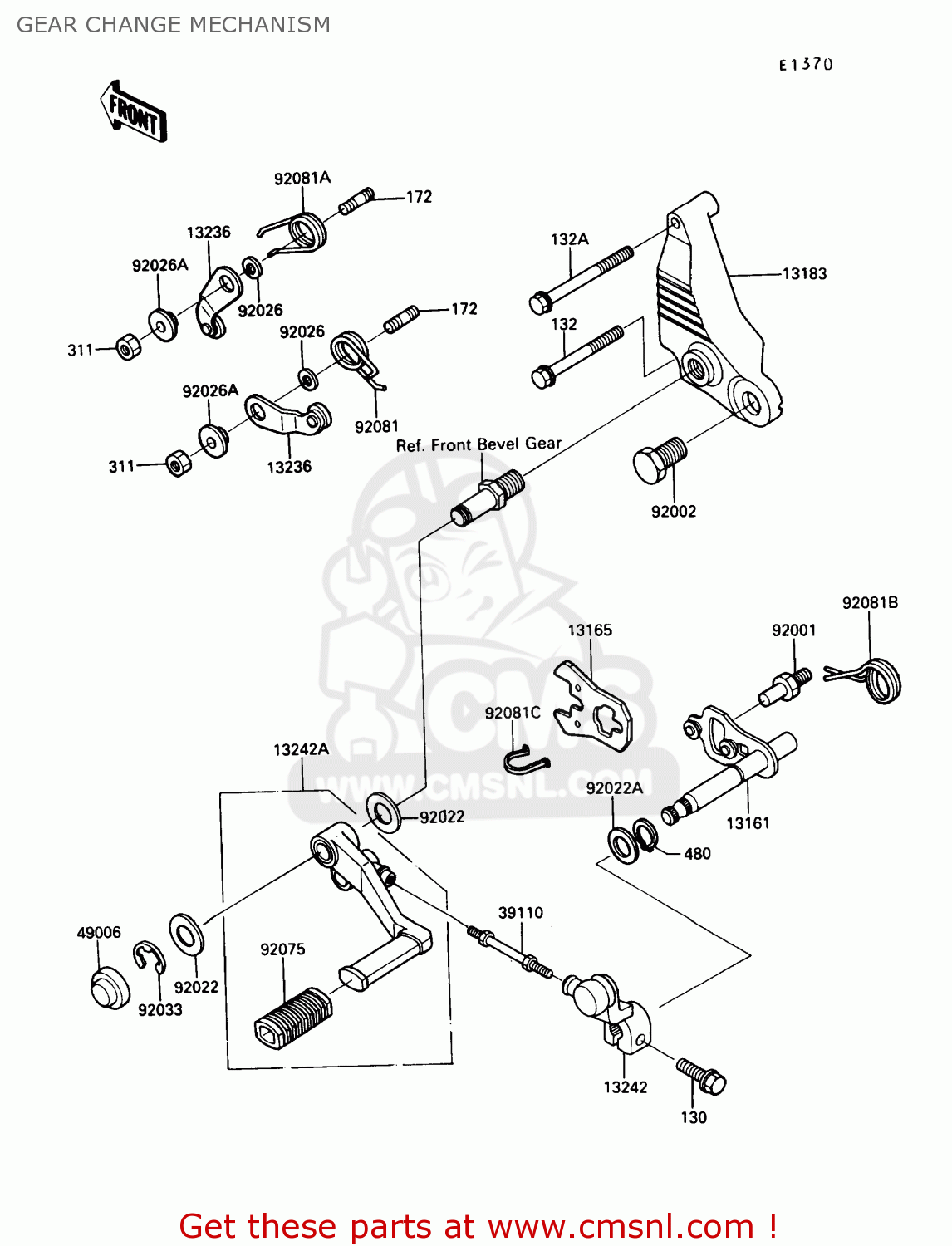

GEAR CHANGE MECHANISM

ref

part #

description

quantity

130

130S0620
ref: 130

BOLT-FLANGED,6X20,BLA

€ 2.50

132

132J0660
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132J0670
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

172

172G0614
ref: 172

STUD,6X14

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611123
ref: 13161

LEVER-COMP-CHANGE SHA

€ 81.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13183

131691663
ref: 13183

PLATE,CHANGE PEDAL

€ 43.50

13236

132361103
ref: 13236

LEVER-COMP,GEAR POSIT

€ 13.00

13242

132421195
ref: 13242

LEVER-ASSY-CHANGE

€ 22.00

13242A

132421213
ref: 13242A

LEVER-ASSY-CHANGE,PED

€ 51.00

39110

391101071
ref: 39110

ROD-ASSY-TIE,CHANGE P

€ 8.00

49006

490061061
ref: 49006

BOOT,CHANGE LEVER

€ 6.00

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021816
ref: 92002

BOLT

€ 6.50

92022

920221593
ref: 92022

WASHER,12.5X22X1.2

€ 3.00

92022A

920221772
ref: 92022A

WASHER

€ 3.00

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92033

920331178
ref: 92033

RING-SNAP,TYPE-E,10MM

€ 2.50

92075

920751175
ref: 92075

DAMPER,CHANGE PEDAL

€ 3.00

92081

920811645
ref: 92081

SPRING

€ 9.00

92081A

920811742
ref: 92081A

SPRING

€ 7.00

92081B

920811750
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.50

92081C

920811829
ref: 92081C

SPRING,CHANGE LEVER

€ 6.00
