Genuine ZG Kawasaki Parts delivered quickly!
home
OIL PUMP/OIL FILTER
ZG1000A11 CONCOURS 1996 CANADA

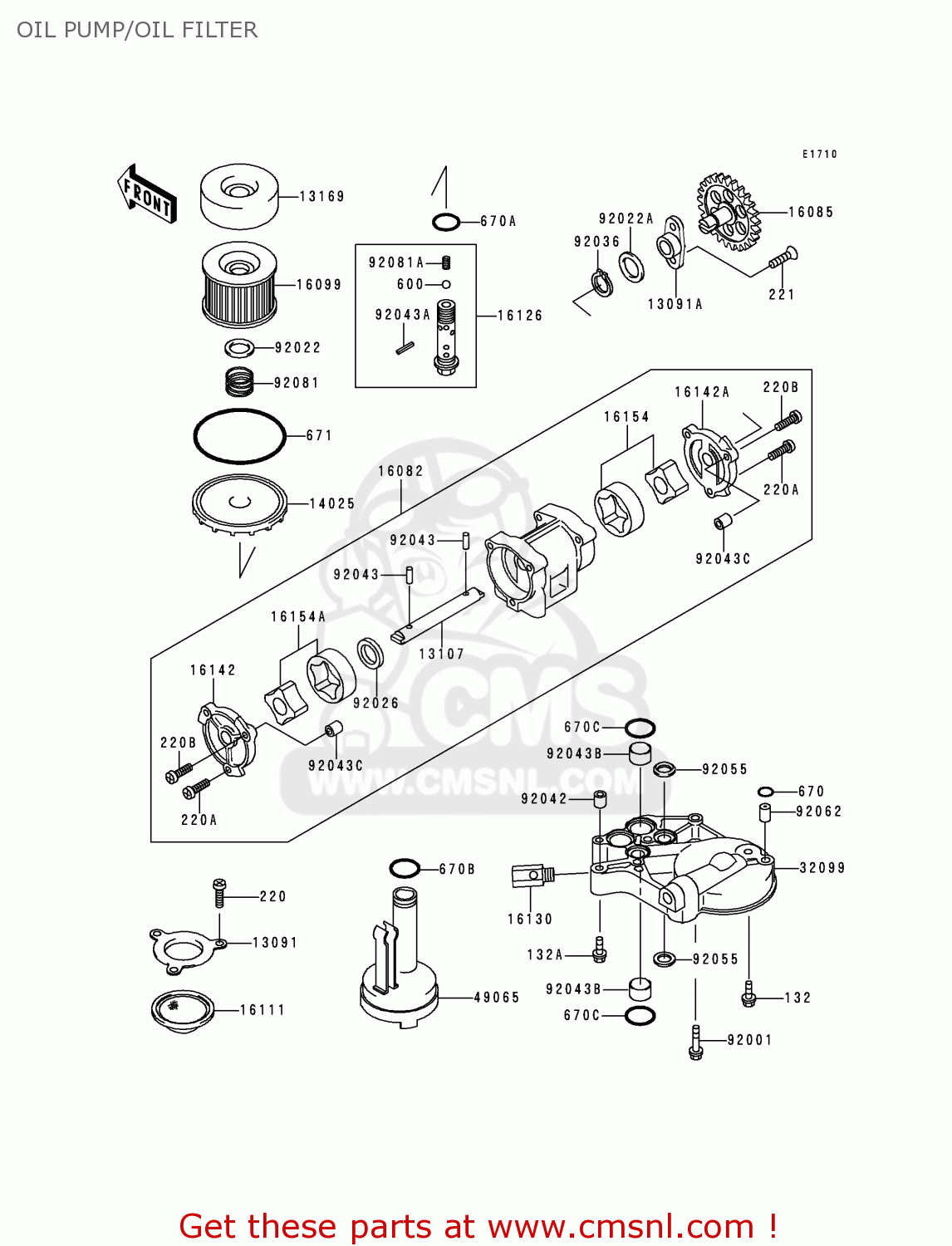

Oil pump/oil filter diagram ZG1000A11 CONCOURS 1996 CANADA
OIL PUMP/OIL FILTER ZG1000A11 CONCOURS 1996 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
132A
132G0645
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
220B
220B0620
ref: 220B
SCREW-PAN HEAD,6X20
€ 2.50
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
670
670B1508
ref: 670
O RING,8MM
€ 1.00
670A
670B2016
ref: 670A
O RING,16MM
€ 1.00
13091
130911274
ref: 13091
HOLDER,OIL FILTER
€ 9.50
13091A
130911333
ref: 13091A
HOLDER,PUMP GEAR
€ 21.00
13107
131071105
ref: 13107
SHAFT,OIL PUMP
€ 60.50
13169
131691313
ref: 13169
PLATE,OIL FILTER
€ 7.00
14025
140251422
ref: 14025
COVER,OIL FILTER,F.BL
€ 31.00
16082
160821060
ref: 16082
PUMP-ASSY-OIL
€ 189.00
16085
160851103
ref: 16085
GEAR,OIL PUMP,35T
€ 84.00
16099
16099003
ref: 16099
FILTER,OIL
€ 6.50
16111
16111003
ref: 16111
STRAINER,OIL
€ 10.00
16126
161261108
ref: 16126
VALVE,OIL FILTER
€ 29.00
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
161421052
ref: 16142
COVER-PUMP,LH
€ 31.50
16142A
161421054
ref: 16142A
COVER-PUMP,RH
€ 30.00
16154
161541007
ref: 16154
ROTOR ASSY,OIL PUMP
€ 51.50
16154A
161541053
ref: 16154A
ROTOR-PUMP
€ 42.00
32099
320991083
ref: 32099
CASE,OIL FILTER
€ 89.00
49065
490651066
ref: 49065
FILTER-OIL
€ 22.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92022
920221012
ref: 92022
WASHER,20.5X30X1
€ 3.00
92022A
920221495
ref: 92022A
WASHER,14X20X1
€ 2.50
92026
920261230
ref: 92026
SPACER,OIL PUMP
€ 2.50
92036
920361052
ref: 92036
RING-SNAP,PUMP GEAR
€ 4.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920431061
ref: 92043
PIN,DOWEL,5X17.8
€ 3.00
92043A
92043111
ref: 92043A
SPRING PIN
€ 4.00
92043B
920431213
ref: 92043B
PIN,18X20X12
€ 4.00
92043C
920431302
ref: 92043C
PIN,DOWEL,8X10
€ 1.00
92055
92055077
ref: 92055
O RING
€ 4.00
92062
920621055
ref: 92062
NOZZLE
€ 6.50
92081
920811018
ref: 92081
SPRING,OIL FILTER
€ 3.00
92081A
92081109
ref: 92081A
SPRING
€ 7.50
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
670C
670D2020
ref: 670C
O RING,20MM
€ 4.00
671
671B2590
ref: 671
O RING,90MM
€ 6.50
