METER(S)
ZG1000A11 CONCOURS 1996 CANADA

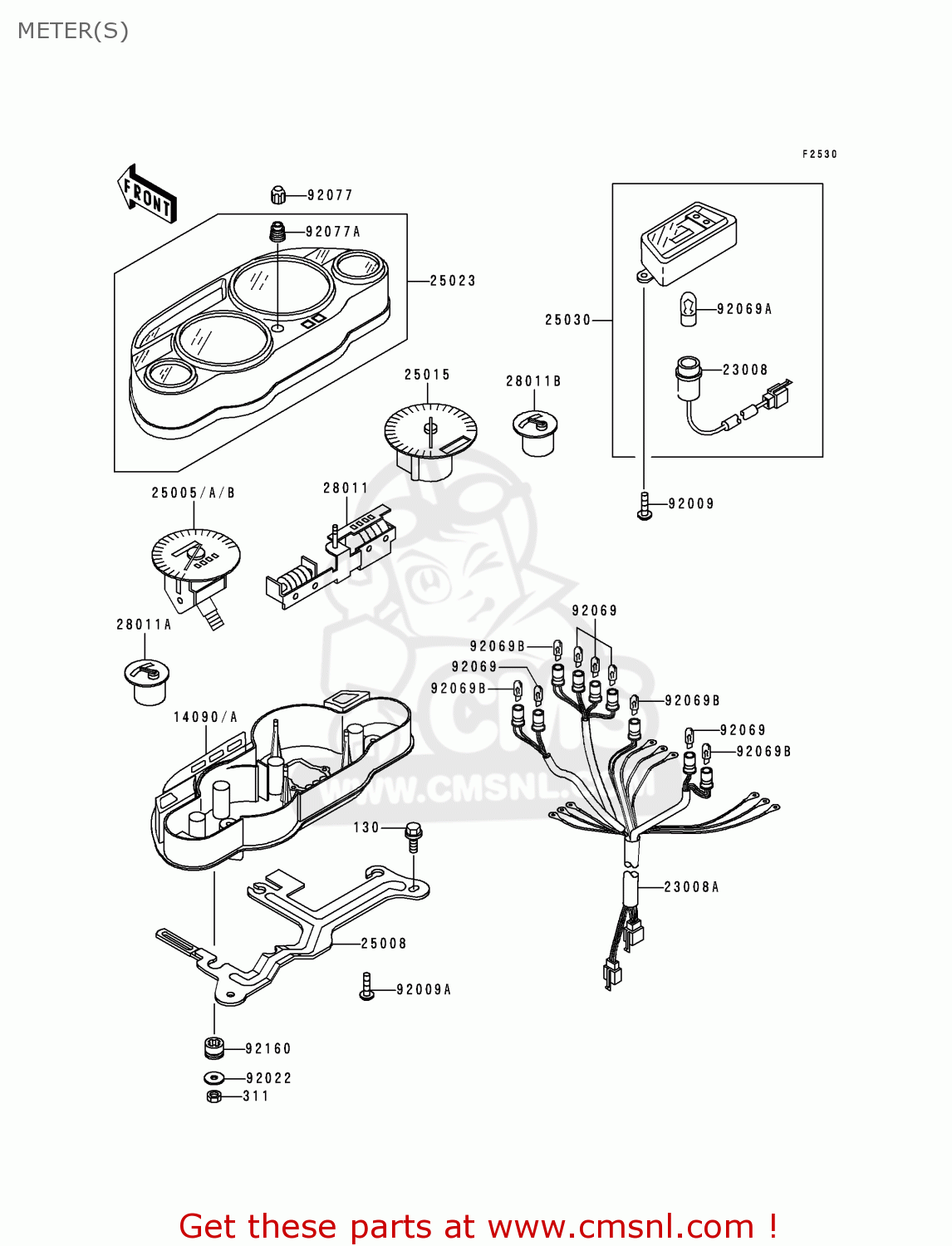

Meter(s) diagram ZG1000A11 CONCOURS 1996 CANADA
METER(S) ZG1000A11 CONCOURS 1996 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
14090
140901286
ref: 14090
COVER,METER HOUSING
€ 122.50
23008
230081529
ref: 23008
SOCKET-ASSY,DEGITAL C
€ 22.50
23008A
230081534
ref: 23008A
SOCKET-ASSY,METER
€ 115.00
25005A
250051558
ref: 25005A
SPEEDOMETER,KPH
€ 329.00
25008
250081199
ref: 25008
BRACKET-METER
€ 62.50
25015
250151329
ref: 25015
TACHOMETER,X1000R/MIN
€ 305.50
25023
250231201
ref: 25023
COVER-METER CASE,UPP
€ 104.50
25030
250301002
ref: 25030
CLOCK,DEGITAL
€ 562.50
28011
280111130
ref: 28011
METER,TRIP
€ 91.50
28011A
280111145
ref: 28011A
METER,FUEL
€ 86.50
28011B
280111146
ref: 28011B
METER,TEMP
€ 95.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091503
ref: 92009A
SCREW,TAPPING,4X14
€ 2.50
92022
920221369
ref: 92022
WASHER,6.2X18X1.2
€ 0.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92069B
920691059
ref: 92069B
BULB,12V 1.7W
€ 2.50
92077
920771094
ref: 92077
KNOB,TRIP RESET
€ 5.00
92077A
920771112
ref: 92077A
KNOB,TRIP RESET
€ 4.00
92160
921601461
ref: 92160
DAMPER
€ 5.00
