MUFFLER(S)
ZG1000A11 CONCOURS 1996 CANADA

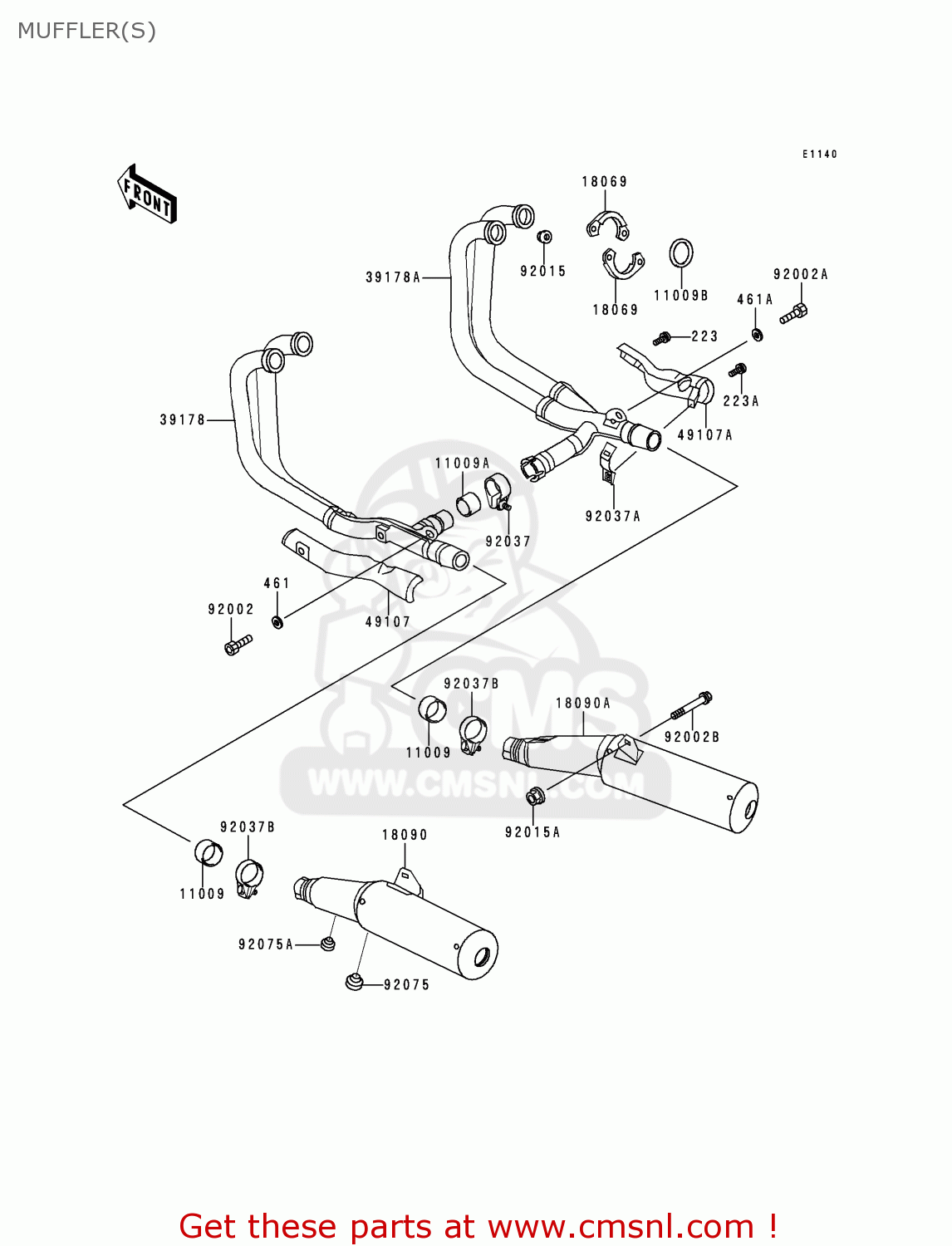

Muffler(s) diagram ZG1000A11 CONCOURS 1996 CANADA
MUFFLER(S) ZG1000A11 CONCOURS 1996 CANADA
×
prices are in EUR
ref
part #
description
quantity
223
223C0612
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
223A
223C0620
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461K1000
ref: 461A
461K1000
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
€ 20.50
11009A
110091668
ref: 11009A
GASKET,EXHAUST MANIFO (NAS)
€ 20.00
11009B
110091840
ref: 11009B
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
18069
180691122
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
18090
180901354
ref: 18090
MUFFLER BODY,COMPLETE,LH
€ 473.50
18090A
180901355
ref: 18090A
MUFFLER BODY,COMPLETE,RH
€ 473.50
39178
391781105
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 402.50
39178A
391781106
ref: 39178A
MANIFOLD-COMP-EXHAUST
€ 454.50
49107
491071053
ref: 49107
COVER-EXHAUST PIPE,LH
€ 73.00
49107A
491071058
ref: 49107A
COVER-EXHAUST PIPE,RH
€ 73.00
92002
920021477
ref: 92002
BOLT,SOCKET,8X20
€ 4.00
92002A
920021683
ref: 92002A
BOLT,SOCKET,10X25
€ 6.00
92002B
920021817
ref: 92002B
BOLT
€ 4.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151387
ref: 92015A
NUT,FLANGED,10MM
€ 2.50
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
€ 13.50
92037A
920371506
ref: 92037A
CLAMP,EXHAUST PIPE CO
€ 10.50
92037B
920371537
ref: 92037B
CLAMP,POWER CHAMBER
€ 14.50
92075
920751002
ref: 92075
DAMPER RUBBER,MAIN ST
€ 4.00
92075A
92075281
ref: 92075A
DAMPER,9X24X14
€ 4.00
