GEAR CHANGE MECHANISM

ZG1000A11 CONCOURS 1996 CANADA

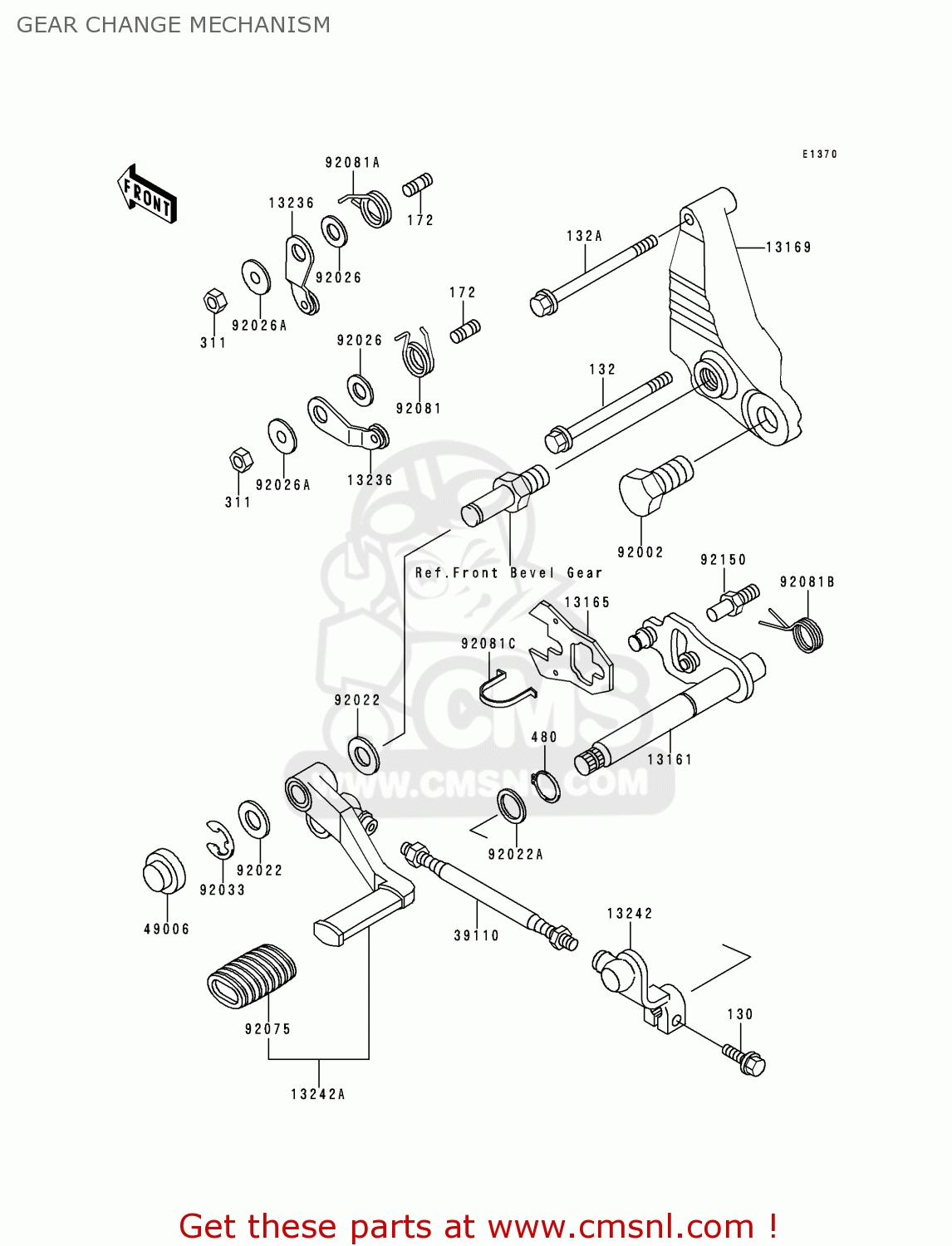

Gear change mechanism diagram ZG1000A11 CONCOURS 1996 CANADA

GEAR CHANGE MECHANISM ZG1000A11 CONCOURS 1996 CANADA
GEAR CHANGE MECHANISM ZG1000A11 CONCOURS 1996 CANADA
GEAR CHANGE MECHANISM ZG1000A11 CONCOURS 1996 CANADA
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
132
132J0660
ref: 132
BOLT-FLANGED-SMALL
132J0660
€ 3.50
132A
132J0670
ref: 132A
BOLT-FLANGED-SMALL
132J0670
€ 3.00
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611123
ref: 13161
LEVER-COMP-CHANGE SHA
131611123
€ 81.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13169
131691663
ref: 13169
PLATE,CHANGE PEDAL
131691663
€ 43.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13242
132421195
ref: 13242
LEVER-ASSY-CHANGE
132421195
€ 22.00
13242A
132421213
ref: 13242A
LEVER-ASSY-CHANGE,PED
132421213
€ 51.00
39110
391101071
ref: 39110
ROD-ASSY-TIE,CHANGE P
391101071
€ 8.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
490061061
€ 6.00
92002
920021816
ref: 92002
BOLT
920021816
€ 6.50
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
920221593
€ 3.00
92022A
920221772
ref: 92022A
WASHER
920221772
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
920331178
€ 2.50
92075
920751175
ref: 92075
DAMPER,CHANGE PEDAL
920751175
€ 3.00
92081
920811645
ref: 92081
SPRING
920811645
€ 9.00
92081A
920811742
ref: 92081A
SPRING
920811742
€ 7.00
92081B
920811750
ref: 92081B
SPRING,CHANGE PEDAL R
920811750
€ 7.50
92081C
920811829
ref: 92081C
SPRING,CHANGE LEVER
920811829
€ 6.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
