FRONT BEVEL GEAR
ZG1000A11 CONCOURS 1996 CANADA

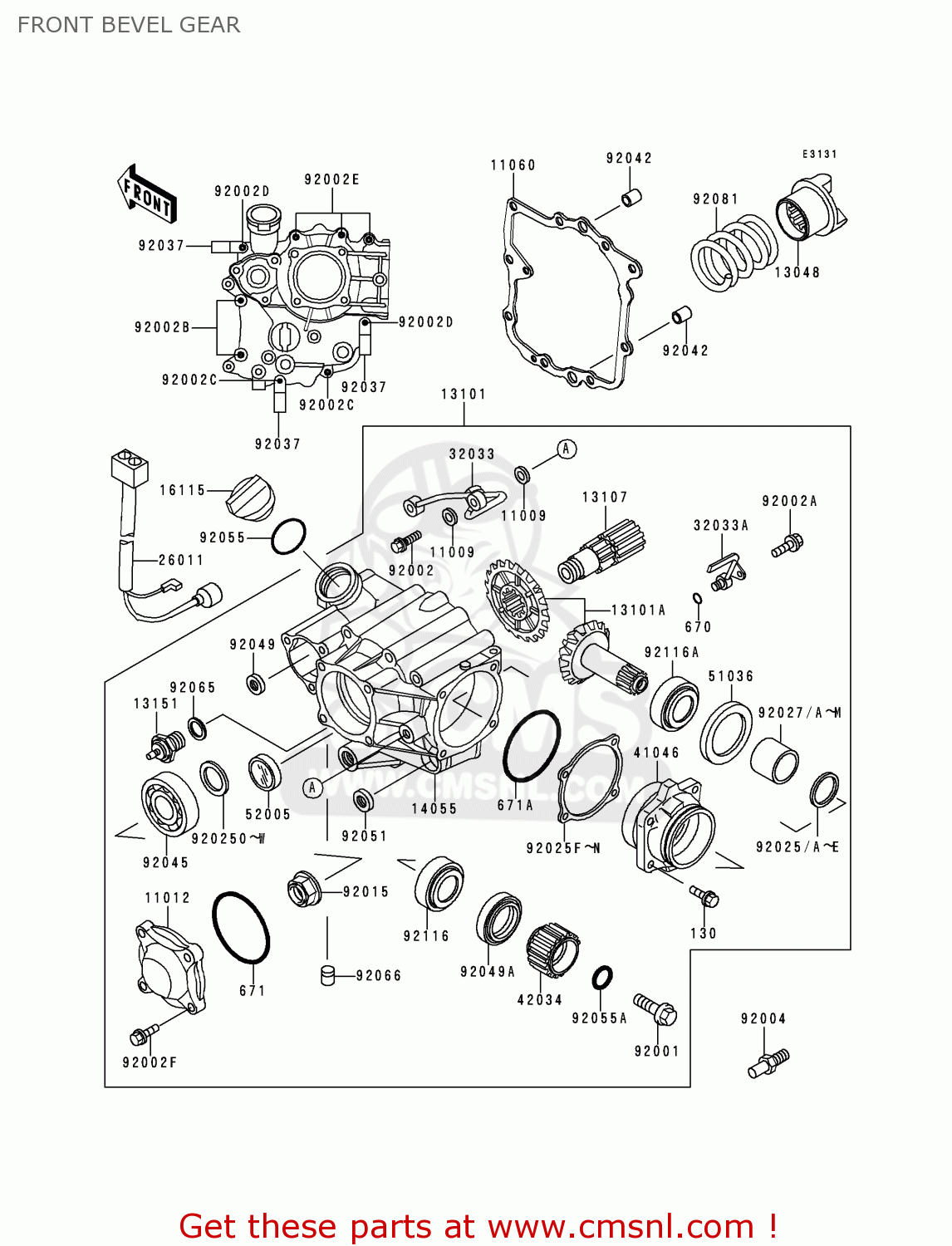

Front bevel gear diagram ZG1000A11 CONCOURS 1996 CANADA
FRONT BEVEL GEAR ZG1000A11 CONCOURS 1996 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11012
110121884
ref: 11012
CAP,BEARING
€ 46.00
11060
110601404
ref: 11060
GASKET,BEVEL GEAR CAS (NAS)
€ 24.00
13048
130481069
ref: 13048
CAM-DAMPER
€ 87.00
13101
131011218
ref: 13101
GEAR-ASSY,FRONT BEVEL
€ 2,472.00
13101A
131015062
ref: 13101A
GEAR-ASSY,FRONT BEVEL
€ 883.50
13107
131071190
ref: 13107
SHAFT,BEVEL GEAR,FR
€ 202.50
13151
131511080
ref: 13151
SWITCH-COMP,NEUTRAL
€ 9.00
14055
140551065
ref: 14055
CASE-GEAR,BEVEL,FR
€ 812.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
26011
260111351
ref: 26011
WIRE-LEAD
€ 19.50
32033
320331706
ref: 32033
PIPE,OIL
€ 49.00
32033A
320331707
ref: 32033A
PIPE,OIL
€ 20.50
41046
410461067
ref: 41046
HOUSING-BEARING
€ 178.50
42034
420341091
ref: 42034
COUPLING,FR DRIVEN
€ 96.00
51036
510361002
ref: 51036
CAP
€ 3.50
52005
520051057
ref: 52005
GAUGE,OIL LEVEL
€ 17.50
92001
920011169
ref: 92001
BOLT,12X42
€ 15.50
92002
920021429
ref: 92002
BOLT,8X20
€ 7.00
92002A
920021449
ref: 92002A
BOLT,6X10
€ 2.50
92002B
920021582
ref: 92002B
BOLT,6X25
€ 3.00
92002C
920021583
ref: 92002C
BOLT,6X50
€ 2.00
92002D
920021584
ref: 92002D
BOLT,6X60
€ 3.50
92002E
920021585
ref: 92002E
BOLT,6X105
€ 2.50
92002F
920021612
ref: 92002F
BOLT
€ 3.00
92004
920041109
ref: 92004
STUD
€ 12.50
92015
920151543
ref: 92015
NUT
€ 12.00
92025
920251072
ref: 92025
SHIM,1.70T
€ 6.50
92025A
920251073
ref: 92025A
SHIM,1.72T
€ 6.50
92025B
920251074
ref: 92025B
SHIM,1.74T
€ 6.50
92025C
920251075
ref: 92025C
SHIM,1.76T
€ 6.50
92025D
920251076
ref: 92025D
SHIM,1.78T
€ 6.50
92025E
920251077
ref: 92025E
SHIM,1.80T
€ 6.50
92025F
920251606
ref: 92025F
SHIM,T=0.10
€ 5.50
92025G
920251607
ref: 92025G
SHIM,T=0.15
€ 6.00
92025H
920251608
ref: 92025H
SHIM,T=0.50
€ 6.00
92025I
920251609
ref: 92025I
SHIM,T=0.60
€ 7.00
92025J
920251610
ref: 92025J
SHIM,T=0.70
€ 7.00
92025K
920251611
ref: 92025K
SHIM,T=0.80
€ 6.50
92025L
920251612
ref: 92025L
SHIM,T=0.90
€ 7.00
130
130S0625
ref: 130
BOLT-FLANGED,6X25,BLA
€ 2.00
670
670B1506
ref: 670
O RING,6MM
€ 1.00
92025M
920251613
ref: 92025M
SHIM,T=1.00
€ 7.00
92025N
920251614
ref: 92025N
SHIM,T=1.20
€ 6.00
92025O
920251688
ref: 92025O
SHIM,25.3X36X0.15
€ 5.50
92025P
920251689
ref: 92025P
SHIM,25.3X36X0.50
€ 5.50
92025Q
920251690
ref: 92025Q
SHIM,25.3X36X0.60
€ 5.50
92025R
920251691
ref: 92025R
SHIM,25.3X36X0.70
€ 5.50
92025S
920251692
ref: 92025S
SHIM,25.3X36X0.80
€ 5.50
92025T
920251693
ref: 92025T
SHIM,25.3X36X0.90
€ 5.50
92025U
920251694
ref: 92025U
SHIM,25.3X36X1.0
€ 5.50
92025V
920251695
ref: 92025V
SHIM,25.3X36X1.1
€ 5.50
92025W
920251696
ref: 92025W
SHIM,25.3X36X1.2
€ 5.50
92027
920271152
ref: 92027
COLLAR,25.2X29.8X22.8
€ 12.00
92027A
920271153
ref: 92027A
COLLAR,25.2X29.8X22.9
€ 12.00
92027B
920271154
ref: 92027B
COLLAR,25.2X29.8X23
€ 12.00
92027C
920271155
ref: 92027C
COLLAR,25.2X29.8X23.1
€ 12.50
92027D
920271156
ref: 92027D
COLLAR,25.2X29.8X23.2
€ 13.00
92027E
920271157
ref: 92027E
COLLAR,25.2X29.8X23.3
€ 12.00
92027F
920271158
ref: 92027F
COLLAR,25.2X29.8X23.4
€ 12.00
92027G
920271159
ref: 92027G
COLLAR,25.2X29.8X23.5
€ 12.00
92027H
920271160
ref: 92027H
COLLAR,25.2X29.8X23.6
€ 12.00
92027I
920271161
ref: 92027I
COLLAR,25.2X29.8X23.7
€ 12.00
92027J
920271162
ref: 92027J
COLLAR,25.2X29.8X23.8
€ 12.00
92027K
920271163
ref: 92027K
COLLAR,25.2X29.8X23.9
€ 12.00
92027L
920271164
ref: 92027L
COLLAR,25.2X29.8X24
€ 12.00
92027M
920271165
ref: 92027M
COLLAR,25.2X29.8X24.1
€ 12.00
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92045
920451160
ref: 92045
BEARING-BALL
€ 124.50
92049
920491017
ref: 92049
SEAL-OIL,SD-8187
€ 6.50
92049A
920491038
ref: 92049A
OIL SEAL,TC35527
€ 12.50
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551044
ref: 92055A
RING-O,ID=18.64
€ 3.00
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92081
920811859
ref: 92081
SPRING,CAM DAMPER
€ 40.00
92116
921161003
ref: 92116
BEARING,R,4T-30205
€ 41.00
92116A
921161006
ref: 92116A
BEARING-ROLLER,4T3030
€ 52.00
671
671B2565
ref: 671
O RING,65MM
€ 6.00
671A
671B2570
ref: 671A
O RING,70MM
€ 4.50
