TRANSMISSION
Z550G9 GT550 1994 UNITED KINGDOM

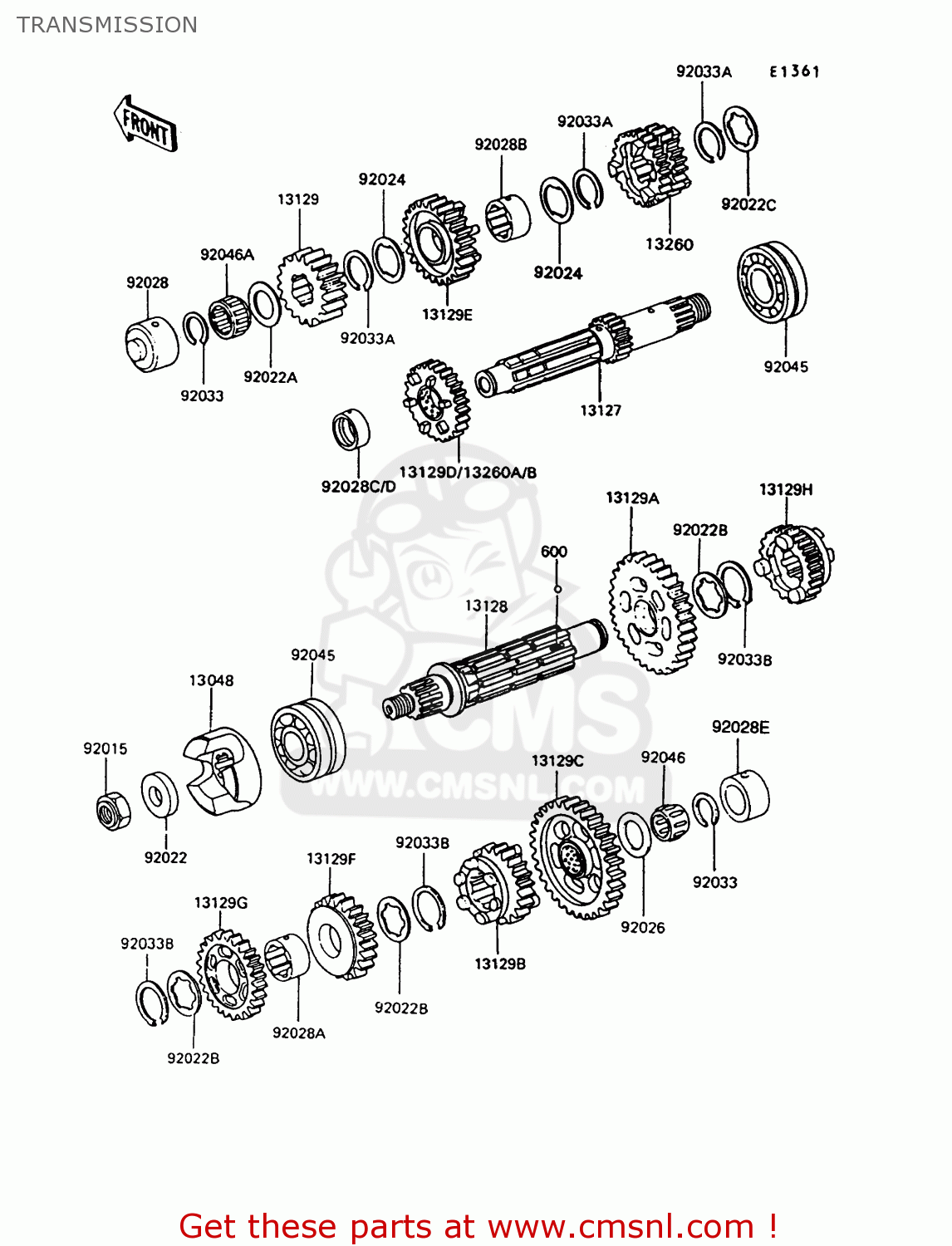

Transmission diagram Z550G9 GT550 1994 UNITED KINGDOM
TRANSMISSION Z550G9 GT550 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13048
130481014
ref: 13048
CAM-DAMPER,OUTPUT SHA
€ 67.00
13127
131271151
ref: 13127
SHAFT-TRANSMISSION IN
€ 190.00
13128
131281043
ref: 13128
SHAFT-TRANSMISSION OU
€ 206.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291083
ref: 13129B
GEAR,OUTPUT 5TH,25T
€ 114.50
13129C
131291564
ref: 13129C
GEAR,OUTPUT LOW,36T
€ 120.50
13129E
131291658
ref: 13129E
GEAR,INPUT TOP,27T
€ 107.00
13129F
131291659
ref: 13129F
GEAR,OUTPUT 3RD,29T
€ 44.00
13129G
131291660
ref: 13129G
GEAR,OUTPUT 4TH,27T
€ 113.50
13129H
131291662
ref: 13129H
GEAR,OUTPUT TOP,23T
€ 45.00
13260
132601195
ref: 13260
GEAR,INPUT 3RD&4TH,21
€ 103.00
13260A
132601203
ref: 13260A
GEAR,INPUT 5TH,26T
€ 101.50
92015
920151067
ref: 92015
NUT,LOCK,14MM
€ 6.00
92022
920221115
ref: 92022
WASHER,14.1X31X5
€ 8.00
92022A
92022112
ref: 92022A
WASHER,20.5X30X1,STEE
€ 6.00
92022B
920221139
ref: 92022B
WASHER,TOOTHED,28.3X3
€ 4.00
92022C
920221861
ref: 92022C
WASHER,TOOTHED,25.3X3
€ 4.00
92024
92024033
ref: 92024
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92028
920281199
ref: 92028
BUSHING,INPUT SHAFT
€ 52.00
92028A
920281364
ref: 92028A
BUSHING,OUTPUT 3RD&4T
€ 22.00
92028B
920281552
ref: 92028B
BUSHING,INPUT TOP GEA
€ 17.50
92028C
920281639
ref: 92028C
BUSHING
€ 14.00
92028E
92028180
ref: 92028E
BUSHING,OUTPUT SFT
€ 21.50
92033
92033015
ref: 92033
CIRCLIP
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
920331037
ref: 92033B
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461030
ref: 92046
BEARING-NEEDLE,VS20/1
€ 23.00
92046A
920461045
ref: 92046A
BEARING-NEEDLE,20V271
€ 25.00
