STARTER MOTOR
Z550G9 GT550 1994 UNITED KINGDOM

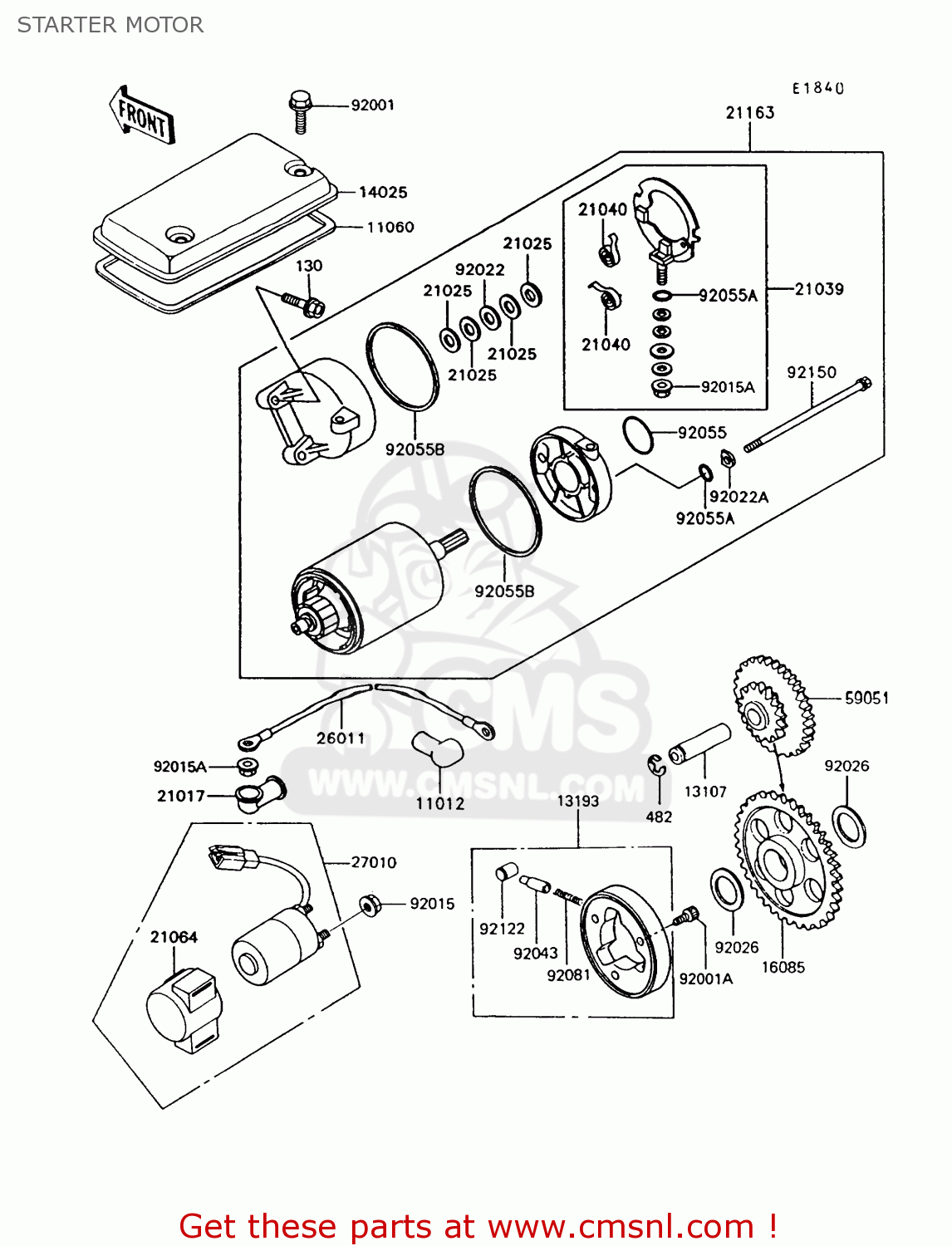

Starter motor diagram Z550G9 GT550 1994 UNITED KINGDOM
STARTER MOTOR Z550G9 GT550 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
11060
110601498
ref: 11060
GASKET,STARTER MOTOR (NAS)
€ 8.00
13107
131071006
ref: 13107
SHAFT,STARTER IDLE
€ 7.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
14025
140251050
ref: 14025
COVER,STARTER MOTOR
€ 16.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
€ 97.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21064
21064002
ref: 21064
DAMPER,MAGNETIC SWITC
€ 13.50
21163
211631150
ref: 21163
STARTER-ELECTRIC
€ 589.50
26011
260111135
ref: 26011
WIRE-LEAD,STARTER MOT
€ 51.50
27010
270101071
ref: 27010
SWITCH,MAGNETIC
€ 86.00
59051
590511011
ref: 59051
GEAR-SPUR,STARTER IDL
€ 102.50
92001
920011151
ref: 92001
BOLT,6X10
€ 3.00
92001A
920011424
ref: 92001A
BOLT,SOCKET,8X10
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92022A
920221458
ref: 92022A
WASHER,LOCK,T=2.0
€ 3.50
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551276
ref: 92055
RING-O
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
92150
921501243
ref: 92150
BOLT
€ 6.00
