CARBURETOR PARTS
Z550G9 GT550 1994 UNITED KINGDOM

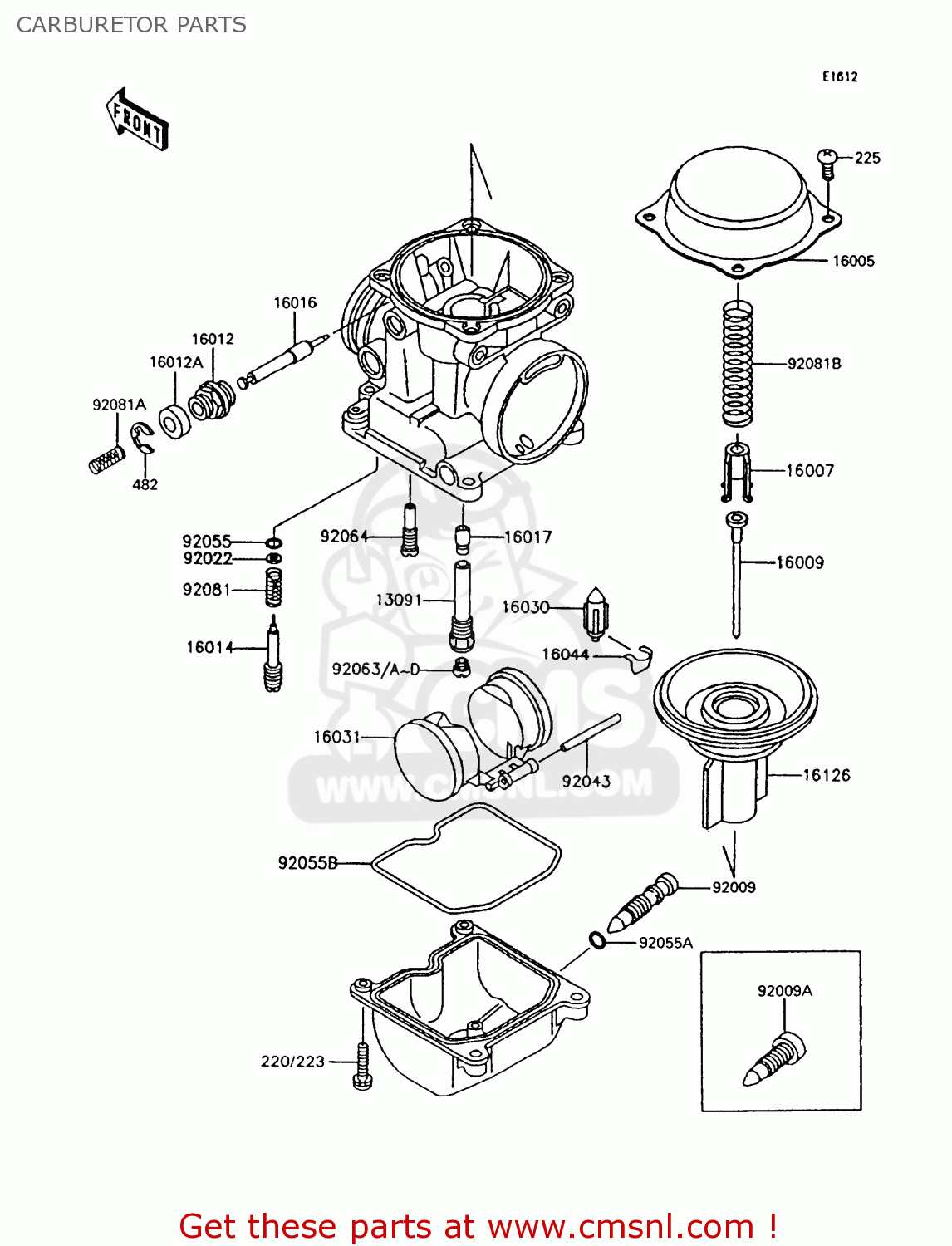

Carburetor parts diagram Z550G9 GT550 1994 UNITED KINGDOM
CARBURETOR PARTS Z550G9 GT550 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
482
482L4000
ref: 482
CIRCLIP-TYPE-E,4MM
€ 0.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091651
ref: 16009
NEEDLE-JET,N76Q
€ 20.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161077
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171292
ref: 16017
JET-NEEDLE
€ 36.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261198
ref: 16126
VALVE,VACUUM
€ 176.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631001
ref: 92063
JET-MAIN,#95
€ 10.00
92063A
920631003
ref: 92063A
MAIN JET, 2ND, # 90
€ 9.50
92063B
920631004
ref: 92063B
JET-MAIN,#92
€ 10.00
92063C
920631005
ref: 92063C
JET-MAIN,#98
€ 10.00
92063D
920631024
ref: 92063D
JET-MAIN,#88
€ 10.00
92064
920641035
ref: 92064
JET-PILOT,#35
€ 12.50
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
€ 3.50
92081A
920811618
ref: 92081A
SPRING,STARTER PLUNGE
€ 4.50
92081B
920811775
ref: 92081B
SPRING,VACUUM VALVE
€ 17.00
