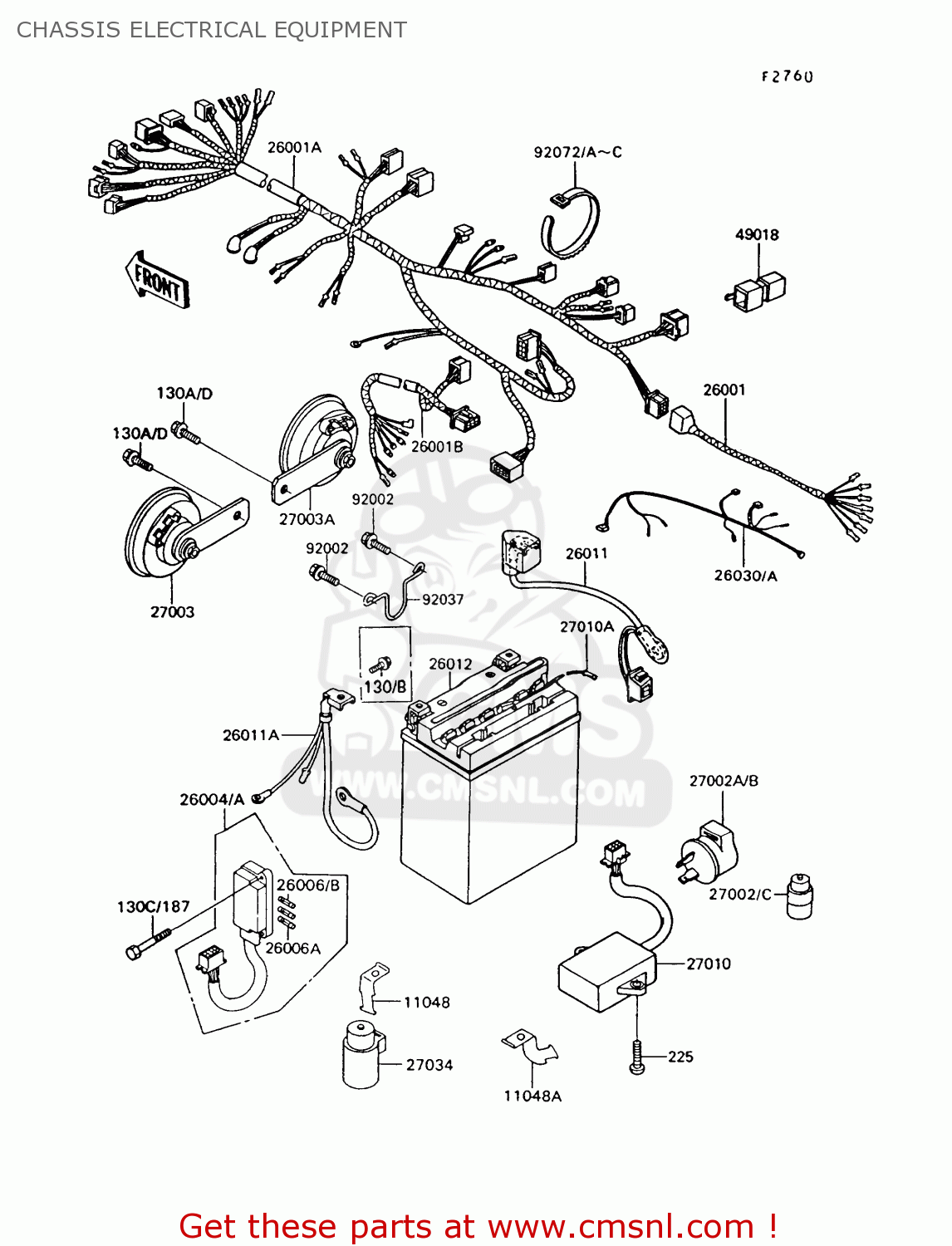

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130B

130G0610
ref: 130B

BOLT-FLANGED,6X10

€ 0.50

130C

130G0620
ref: 130C

BOLT,FLANGED,6X20

€ 2.50

130D

130J0812
ref: 130D

BOLT-FLANGED

€ 0.50

11048A

110481134
ref: 11048A

BRACKET,OPEN TYPE REL

€ 12.50

26001

260011348
ref: 26001

HARNESS,RR

€ 29.00

26001A

260011622
ref: 26001A

HARNESS,MAIN

€ 204.00

26001B

260011623
ref: 26001B

HARNESS,ENGINE SUB

€ 34.00

26004A

260041092
ref: 26004A

FUSE-ASSY

€ 59.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26006B

26006007
ref: 26006B

FUSE 15A

€ 2.50

26011

260111181
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 23.50

26011A

260111182
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 23.50

26012

260121211
ref: 26012

BATTERY,12V 12AH,FB12

€ 96.00

26030A

260301298
ref: 26030A

HARNESS,ICING

€ 51.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021053
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 33.50

27002C

270021088
ref: 27002C

RELAY-ASSY

€ 26.50

27003

270031370
ref: 27003

HORN,LH

€ 62.00

27003A

270031371
ref: 27003A

HORN,RH

€ 62.00

27010

270101077
ref: 27010

SWITCH,TURN SIGNAL OP

€ 55.00

27010A

270101085
ref: 27010A

SWITCH,BATTERY

€ 32.50

49018

490181052
ref: 49018

DIODE

€ 35.50

92002

920021204
ref: 92002

BOLT,FLANGED,6X14

€ 2.00

92037

920371383
ref: 92037

CLAMP,MAIN HARNESS

€ 6.50

92072B

920721195
ref: 92072B

BAND,L=185

€ 1.00

92072C

920721197
ref: 92072C

BAND

€ 5.00

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50
