GEAR CHANGE MECHANISM
Z550G9 GT550 1994 UNITED KINGDOM

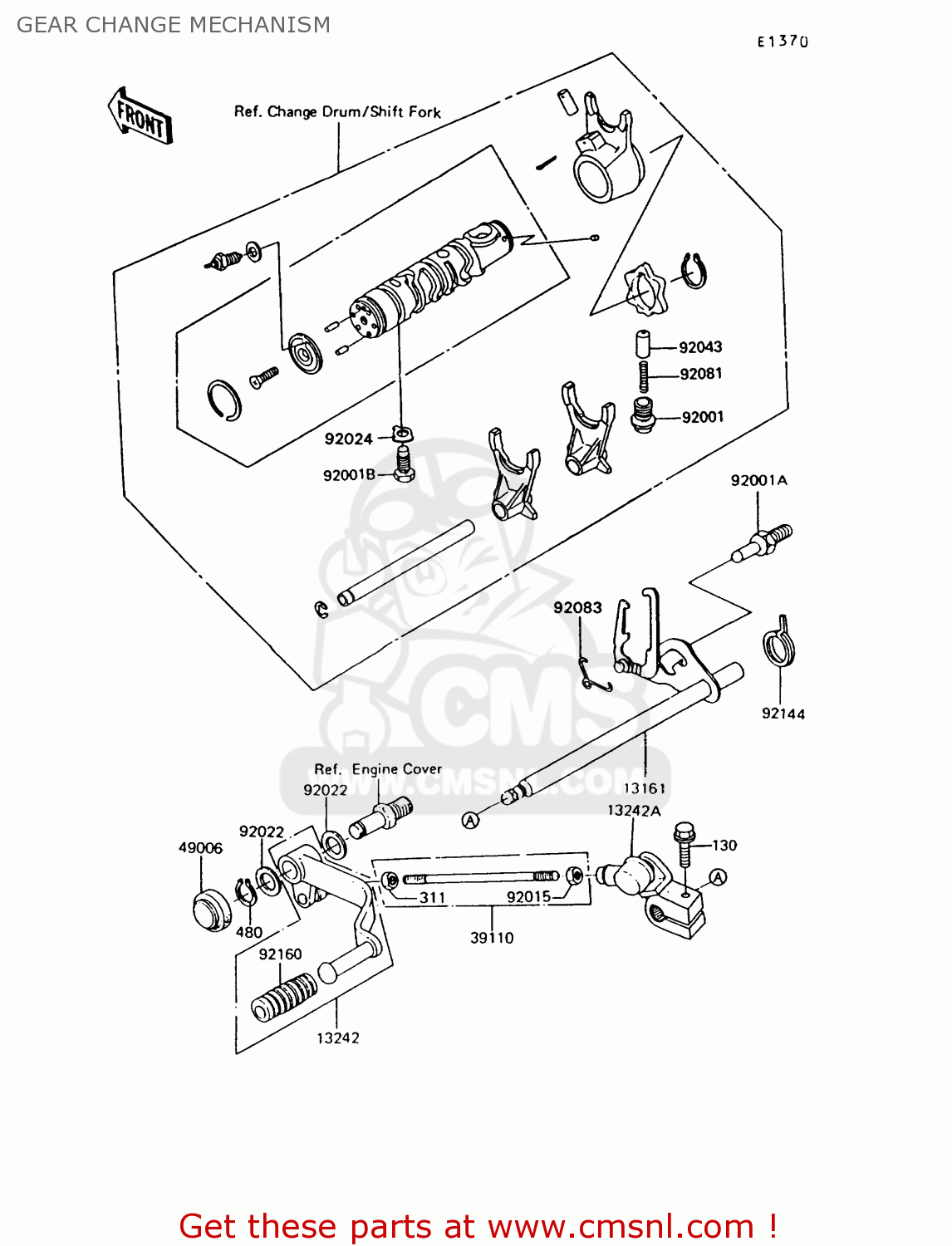

Gear change mechanism diagram Z550G9 GT550 1994 UNITED KINGDOM
GEAR CHANGE MECHANISM Z550G9 GT550 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
311
311J0600
ref: 311
NUT-HEX
€ 1.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
13161
13161042
ref: 13161
LEVER-COMP-CHANGE SHA
€ 102.50
13242
132421054
ref: 13242
LEVER-ASSY-CHANGE,PED
€ 30.50
13242A
132421074
ref: 13242A
LEVER-ASSY-CHANGE,BLA
€ 20.00
39110
391101007
ref: 39110
ROD-ASSY-TIE,CHANGE
€ 7.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92001
920011037
ref: 92001
BOLT,NEUTAL POSITION
€ 9.50
92001A
920011455
ref: 92001A
BOLT
€ 3.00
92001B
92001174
ref: 92001B
BOLT, HEX HEAD, 10X26
€ 4.50
92015
920151178
ref: 92015
NUT
€ 2.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92024
92024074
ref: 92024
WASHER,LOCK,10MM
€ 2.50
92043
92043076
ref: 92043
PIN-NEUTRAL PISTON
€ 8.00
92081
92081112
ref: 92081
SPRING
€ 4.00
92083
92083018
ref: 92083
SPRING-KICK PAWL
€ 6.00
92144
921441074
ref: 92144
SPRING,CHANGE PEDAL R
€ 6.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
