SUSPENSION/SHOCK ABSORBER

Z550G2 GT550 1984 UNITED KINGDOM FR FG

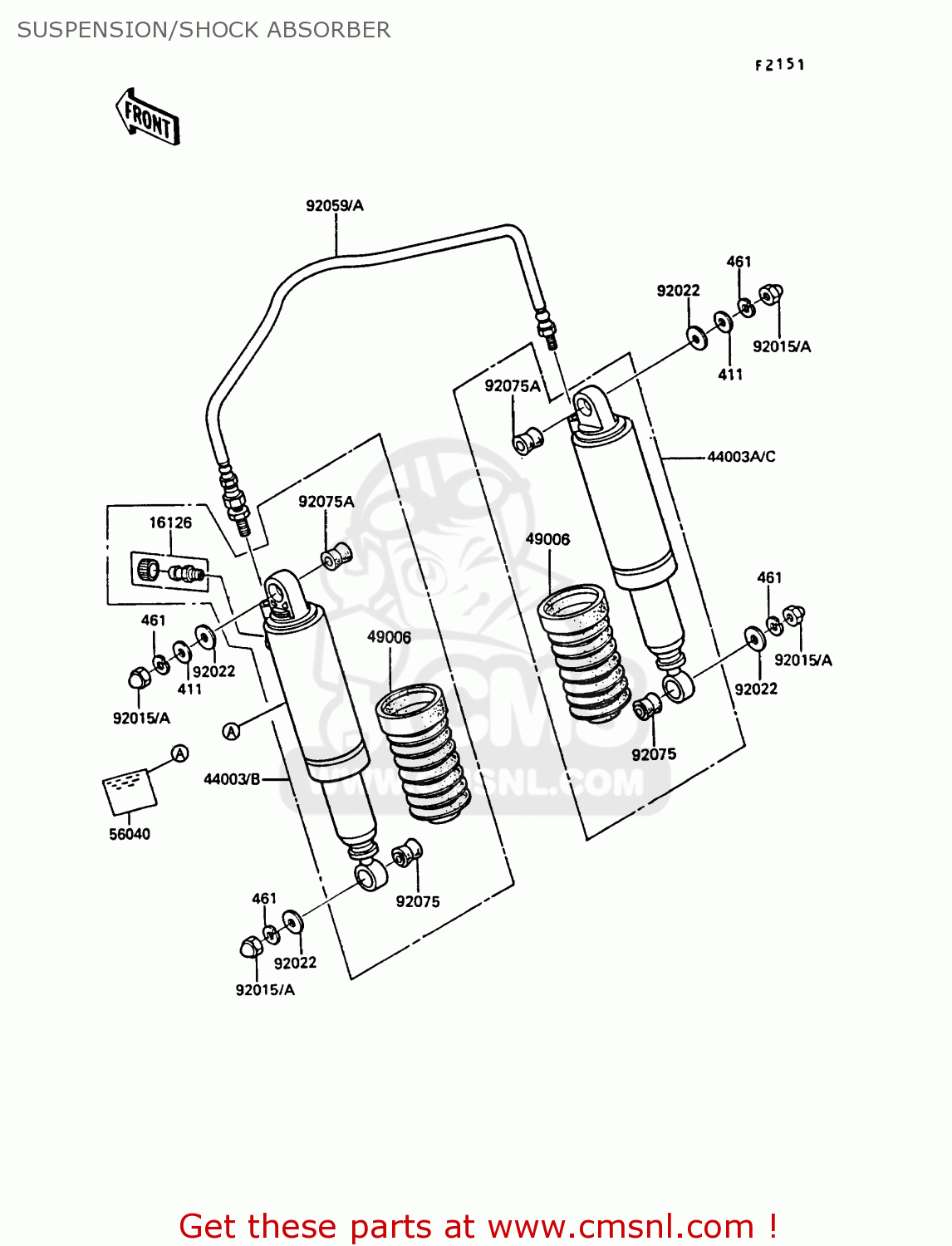

Suspension/shock absorber diagram Z550G2 GT550 1984 UNITED KINGDOM FR FG

prices are in EUR

ref

part #

description

quantity

411

411F1000
ref: 411

WASHER-PLAIN,10MM,BLA

€ 2.50

461

461K1000
ref: 461

461K1000

16126

161261052
ref: 16126

VALVE,AIR

€ 22.00

44003B

440031512
ref: 44003B

DAMPER-ASSY,REAR SHOC

€ 518.50

44003C

440031513
ref: 44003C

DAMPER-ASSY,REAR SHOC

€ 544.50

49006

490061092
ref: 49006

BOOT,SHOCKABSORBER,BL

€ 40.50

56040

560401119
ref: 56040

LABEL-WARNING,SHOCKAB

€ 2.50

92015A

920151360
ref: 92015A

NUT,10MM

€ 3.00

92022

920221396
ref: 92022

WASHER,10.5X26X2.3,BL

€ 2.00

92059A

920591454
ref: 92059A

TUBE,REAR SHOCKABSORB

€ 91.00

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92075A

920751262
ref: 92075A

DAMPER,SHOCKABSORBER,

€ 6.50

SUSPENSION/SHOCK ABSORBER

all assemblies
