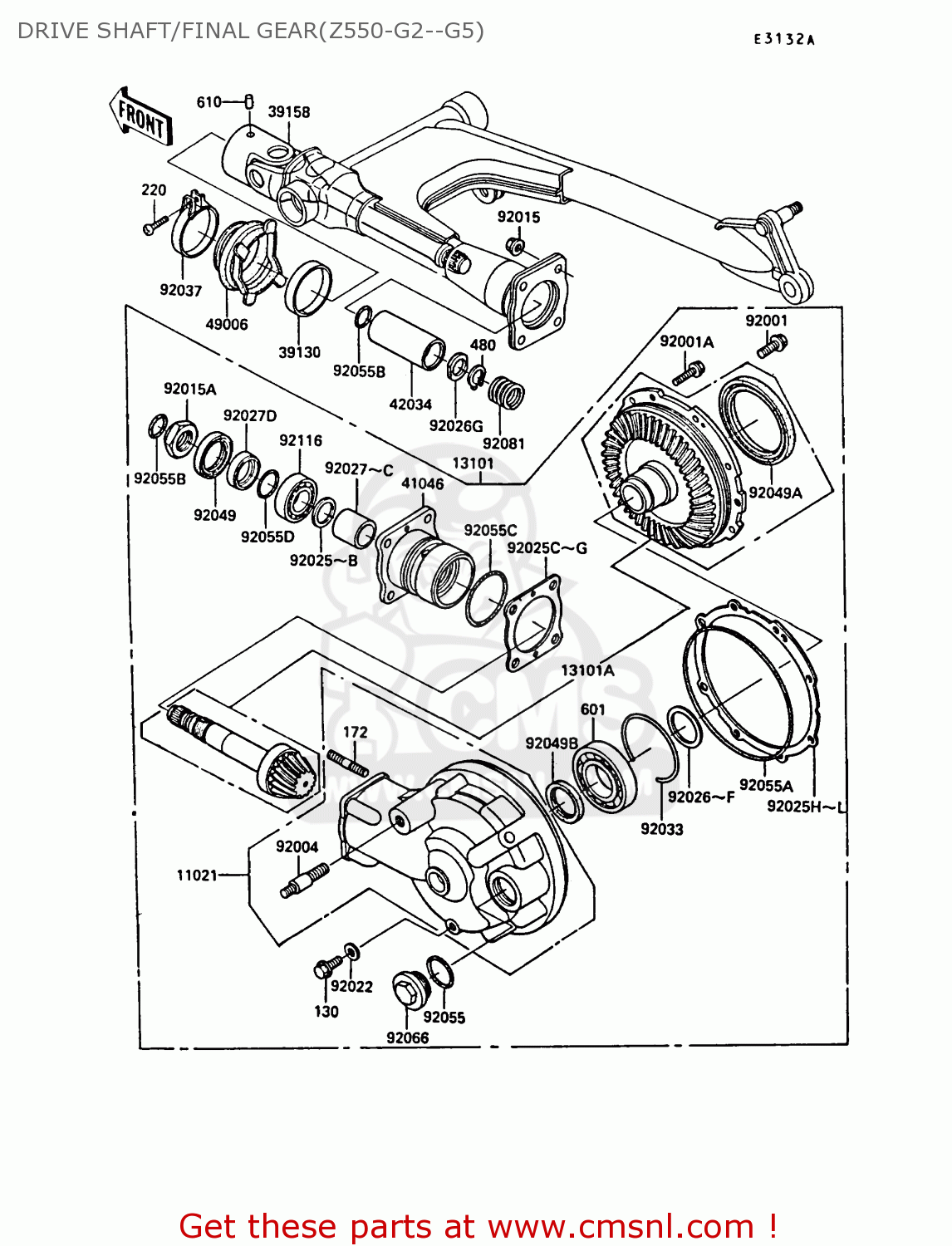

DRIVE SHAFT/FINAL GEAR(Z550-G2--G5)

ref

part #

description

quantity

11021

11021101821
ref: 11021

CASE-ASSY,FINAL GEAR

€ 850.00

13101

13101103121
ref: 13101

GEAR-ASSY,FINAL

€ 1,891.00

13101A

131015038
ref: 13101A

GEAR-ASSY,FINAL BEVEL

€ 1,463.00

39130

391301002
ref: 39130

SPRING,LEAF

€ 3.00

39158

391581007
ref: 39158

SHAFT-ASSY-DRIVE

€ 332.00

41046

410461019
ref: 41046

HOUSING-BEARING

€ 127.00

42034

420341035
ref: 42034

COUPLING,DRIVE SHAFT,

€ 113.50

49006

490061059
ref: 49006

BOOT,PROPELLER SHAFT

€ 22.50

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92001A

920011778
ref: 92001A

BOLT,FLANGED,10X23

€ 3.50

92004

920041047
ref: 92004

STUD,RR SHOCKABSORBER

€ 10.00

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92015A

920151241
ref: 92015A

NUT,25MM

€ 11.50

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92025

920251074
ref: 92025

SHIM,1.74T

€ 6.50

92025A

920251075
ref: 92025A

SHIM,1.76T

€ 6.50

92025B

920251076
ref: 92025B

SHIM,1.78T

€ 6.50

92025C

920251312
ref: 92025C

SHIM,T=0.15

€ 7.00

92025D

920251316
ref: 92025D

SHIM,T=0.8

€ 7.00

92025E

920251317
ref: 92025E

SHIM,T=0.9

€ 6.50

92025F

920251318
ref: 92025F

SHIM,T=1.0

€ 6.50

92025G

920251319
ref: 92025G

SHIM,T=1.2

€ 6.00

92025H

920251369
ref: 92025H

SHIM,T=0.15

€ 14.50

92025I

920251370
ref: 92025I

SHIM,T=0.80

€ 11.00

92025J

920251371
ref: 92025J

SHIM,T=0.90

€ 14.50

92025K

920251372
ref: 92025K

SHIM,T=1.00

€ 14.50

92025L

920251373
ref: 92025L

SHIM,T=1.20

€ 14.50

92026

920261122
ref: 92026

SPACER,T=1.95

€ 7.00

92026A

920261123
ref: 92026A

SPACER,T=2.00

€ 9.00

92026B

920261124
ref: 92026B

SPACER,T=2.05

€ 9.00

92026C

920261125
ref: 92026C

SPACER,T=2.10

€ 7.00

92026D

920261126
ref: 92026D

SPACER,T=2.15

€ 6.50

92026E

920261127
ref: 92026E

SPACER,T=2.20

€ 7.00

92026F

920261128
ref: 92026F

SPACER,T=2.25

€ 7.00

92026G

920261129
ref: 92026G

SPACER,DRIVE SHAFT

€ 5.00

92027

920271536
ref: 92027

COLLAR,L=34.3

€ 36.50

92027A

920271537
ref: 92027A

COLLAR,L=34.4

€ 29.50

92027B

920271538
ref: 92027B

COLLAR,L=34.5

€ 35.50

92027C

920271539
ref: 92027C

COLLAR,L=34.6

€ 36.50

92027D

920271540
ref: 92027D

COLLAR,25X35X9

€ 12.00

130

130X0812
ref: 130

BOLT-FLANGED

€ 2.50

172

172G0830
ref: 172

STUD,8X30

€ 1.50

220

220B0430
ref: 220

SCREW-PAN-CROS

€ 0.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

601

601A6007
ref: 601

BEARING-BALL,#6007

€ 29.50

610

610A0406
ref: 610

ROLLER,4X6

€ 2.50

92033

920331093
ref: 92033

RING-SNAP,70MM

€ 3.00

92037

920371112
ref: 92037

CLAMP,BOOT FITTING

€ 11.50

92049

920491025
ref: 92049

OIL SEAL,S-35477HS

€ 10.00

92049A

920491085
ref: 92049A

SEAL-OIL,SC759510

€ 21.00

92049B

920491155
ref: 92049B

SEAL-OIL,SC32435.5

€ 10.00

92055

920551005
ref: 92055

RING-O,35.8X3.0

€ 3.50

92055A

920551039
ref: 92055A

RING-O,ID=150.4

€ 9.50

92055B

920551044
ref: 92055B

RING-O,ID=18.64

€ 3.00

92055C

920551120
ref: 92055C

RING-0,55MM

€ 3.50

92055D

920551160
ref: 92055D

RING-0,24.7MM

€ 3.00

92066

92066100621
ref: 92066

PLUG,OIL FILLER CAP,F

€ 9.50

92081

920811717
ref: 92081

SPRING,DRIVE SHAFT

€ 4.50

92116

921161004
ref: 92116

BEARING-ROLLER,4T3200

€ 53.50

all assemblies
