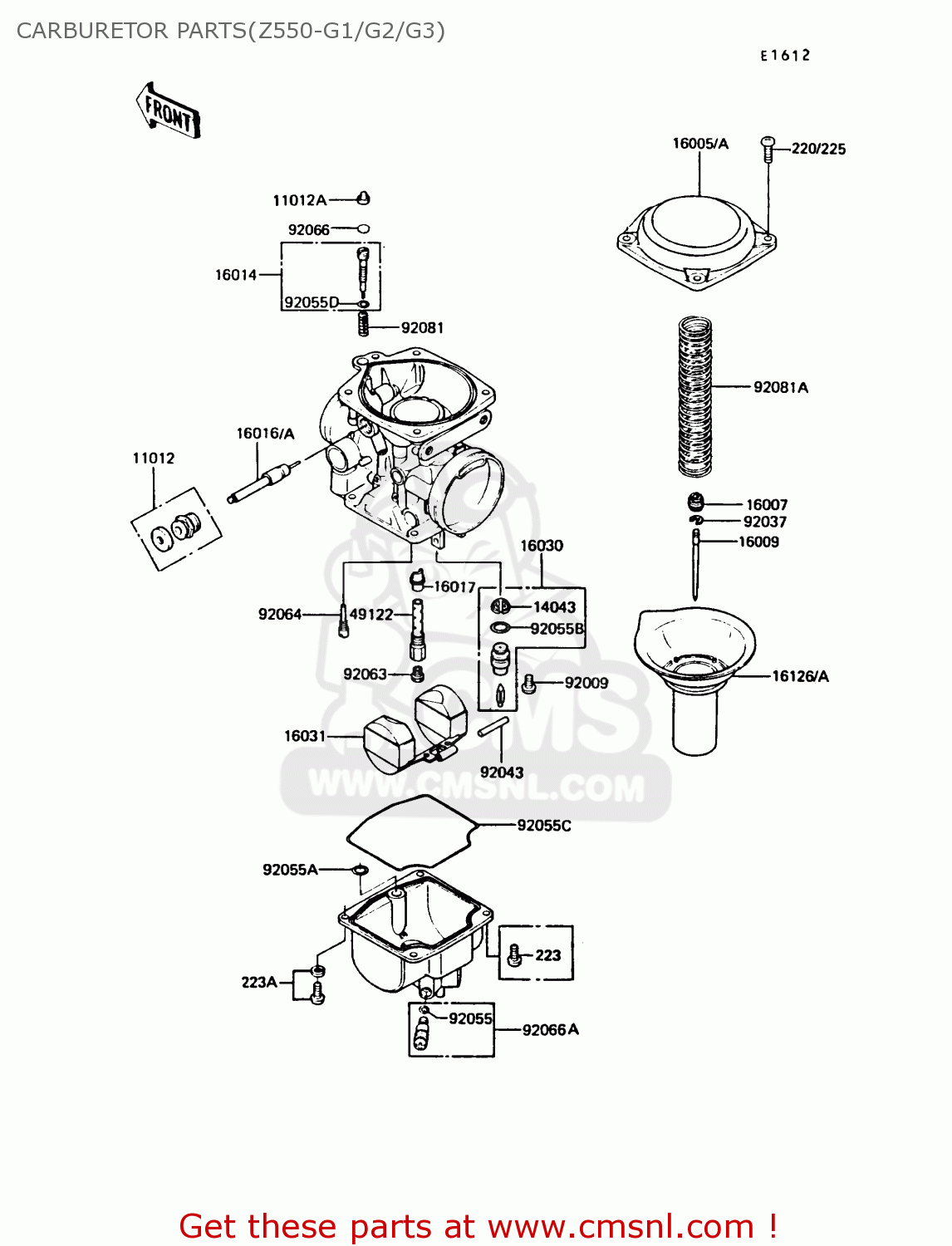

CARBURETOR PARTS(Z550-G1/G2/G3)

ref

part #

description

quantity

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

223

223B0412
ref: 223

SCREW-PAN-WS-CROS

€ 3.00

11012

110121243
ref: 11012

CAP

€ 8.50

11012A

110121265
ref: 11012A

CAP,PILOT AIR SCREW

€ 2.00

14043

140431011
ref: 14043

FILTER,FLOAT VALVE

€ 9.00

16005A

160051021
ref: 16005A

TOP-CHAMBER,CR PLATED

€ 17.00

16007

160071051
ref: 16007

SEAT-SPRING

€ 6.50

16009

160091125
ref: 16009

NEEDLE-JET,#4A01

€ 21.00

16014

160141032
ref: 16014

SCREW-PILOT AIR

€ 13.00

16016A

160161062
ref: 16016A

PLUNGER

€ 28.00

16017

160171116
ref: 16017

JET-NEEDLE

€ 13.50

16030

160301024
ref: 16030

VALVE-FLOAT

€ 49.50

16031

160311018
ref: 16031

FLOAT

€ 46.50

16126

161261047
ref: 16126
FRUK

VALVE,VACUUM

€ 136.50

16126A

161261059
ref: 16126A
WG

VALVE,VACUUM

€ 63.00

49122

491221012
ref: 49122

PIPE-BLEEDER

€ 19.50

92009

920091168
ref: 92009

SCREW,FLOAT VALVE

€ 2.50

92037

920371303
ref: 92037

CLAMP

€ 2.00

92043

920431112
ref: 92043

PIN,FLOAT

€ 2.50

92055

920551071
ref: 92055

RING-O,OVERFLOW

€ 4.50

92055A

920551126
ref: 92055A

RING-O

€ 6.00

92055B

920551127
ref: 92055B

RING-O

€ 4.00

92055C

920551128
ref: 92055C

RING-O,FLOAT CHAMBER

€ 19.00

92055D

920551134
ref: 92055D

RING-O

€ 4.50

92063

920631131
ref: 92063

JET-MAIN,#116

€ 8.50

92064

920641055
ref: 92064

JET-PILOT,#32

€ 10.00

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92066A

920661065
ref: 92066A

SCREW,DRAIN

€ 9.50

92081

920811441
ref: 92081

SPRING

€ 3.50

92081A

920811461
ref: 92081A

SPRING

€ 12.50
