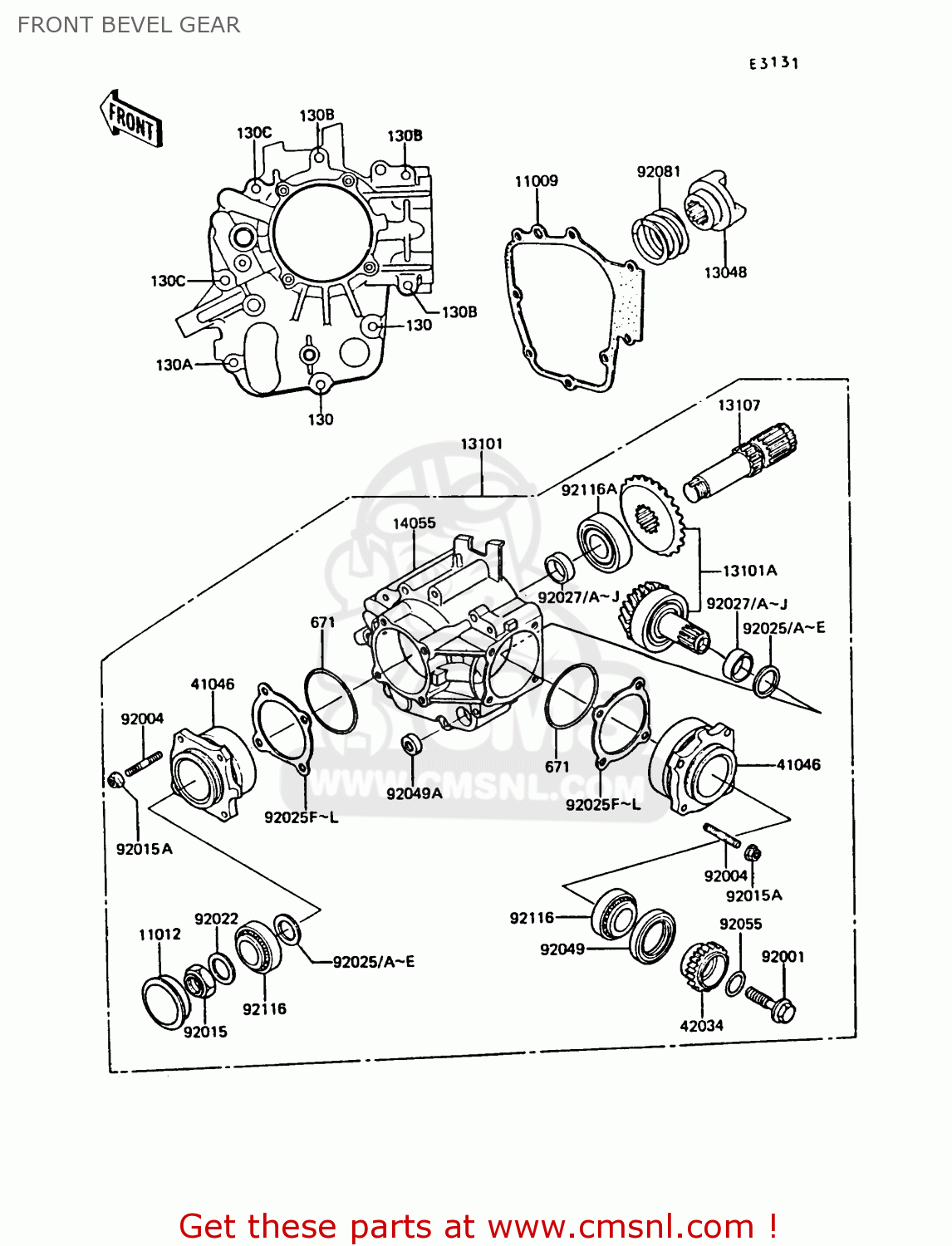

FRONT BEVEL GEAR

ref

part #

description

quantity

11009

110091293
ref: 11009

GASKET,GEAR CASE (MCA)

€ 7.50

11012

110121071
ref: 11012

CAP

€ 21.50

13048

130481013
ref: 13048

CAM-DAMPER,BEVEL GEAR

€ 76.00

13101

131011029
ref: 13101

GEAR-ASSY,BEVEL,FR

€ 1,668.50

13101A

131015034
ref: 13101A

GEAR-ASSY,FRONT BEVEL

€ 682.00

13107

131071032
ref: 13107

SHAFT,BEVEL GEAR,FR

€ 114.50

14055

140551010
ref: 14055

CASE-GEAR,BEVEL,FR

€ 647.00

41046

410461014
ref: 41046

HOUSING-BEARING,FR

€ 185.50

42034

420341091
ref: 42034

COUPLING,FR DRIVEN

€ 96.00

92001

920011169
ref: 92001

BOLT,12X42

€ 15.50

92004

92004059
ref: 92004

STUD

€ 4.00

92015

920151065
ref: 92015

NUT,20MM

€ 6.00

92015A

920151078
ref: 92015A

NUT,6M/M

€ 1.50

92022

920221116
ref: 92022

WASHER,20.3X36X2.3

€ 5.50

92025

920251072
ref: 92025

SHIM,1.70T

€ 6.50

92025A

920251073
ref: 92025A

SHIM,1.72T

€ 6.50

92025B

920251074
ref: 92025B

SHIM,1.74T

€ 6.50

92025C

920251075
ref: 92025C

SHIM,1.76T

€ 6.50

92025D

920251076
ref: 92025D

SHIM,1.78T

€ 6.50

92025E

920251077
ref: 92025E

SHIM,1.80T

€ 6.50

92025F

920251258
ref: 92025F

SHIM,T=0.10

€ 7.50

92025G

920251259
ref: 92025G

SHIM,T=0.15

€ 8.00

92025H

920251260
ref: 92025H

SHIM,T=0.20

€ 7.00

92025I

920251261
ref: 92025I

SHIM,T=0.30

€ 6.50

92025J

920251262
ref: 92025J

SHIM,T=0.60

€ 7.00

92025K

920251263
ref: 92025K

SHIM,T=0,90

€ 6.50

92025L

920251264
ref: 92025L

SHIM,T=1.20

€ 8.00

92027

920271401
ref: 92027

COLLAR,25.2X29.8X10.2

€ 7.50

92027A

920271402
ref: 92027A

COLLAR,25.2X29.8X10.3

€ 7.50

92027B

920271403
ref: 92027B

COLLAR,25.2X29.8X10.4

€ 7.50

92027C

920271404
ref: 92027C

COLLAR,25.2X29.8X10.5

€ 7.50

92027D

920271405
ref: 92027D

COLLAR,25.2X29.8X10.6

€ 7.50

92027E

920271406
ref: 92027E

COLLAR,25.2X29.8X10.7

€ 7.50

92027F

920271407
ref: 92027F

COLLAR,25.2X29.8X10.8

€ 7.50

92027G

920271408
ref: 92027G

COLLAR,25.2X29.8X10.9

€ 7.50

92027H

920271409
ref: 92027H

COLLAR,25.2X29.8X11.0

€ 7.50

92027I

920271410
ref: 92027I

COLLAR,25.2X29.8X11.1

€ 7.50

92027J

920271411
ref: 92027J

COLLAR,25.2X29.8X11.2

€ 7.50

92049

920491038
ref: 92049

OIL SEAL,TC35527

€ 12.50

92049A

92051005A
ref: 92049A

OIL SEAL,TB13225.5

€ 5.50

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

130A

130G0640
ref: 130A

BOLT,FLANGED,6X40

€ 0.50

130B

130G0675
ref: 130B

BOLT-FLANGED,6X75

€ 1.50

130C

130G0690
ref: 130C

BOLT,FLANGED,6X90

€ 1.00

671

671B2565
ref: 671

O RING,65MM

€ 6.00

92055

920551044
ref: 92055

RING-O,ID=18.64

€ 3.00

92081

920811425
ref: 92081

SPRING,CAM DAMPER

€ 20.50

92116

921161003
ref: 92116

BEARING,R,4T-30205

€ 41.00

92116A

921161006
ref: 92116A

BEARING-ROLLER,4T3030

€ 52.00
