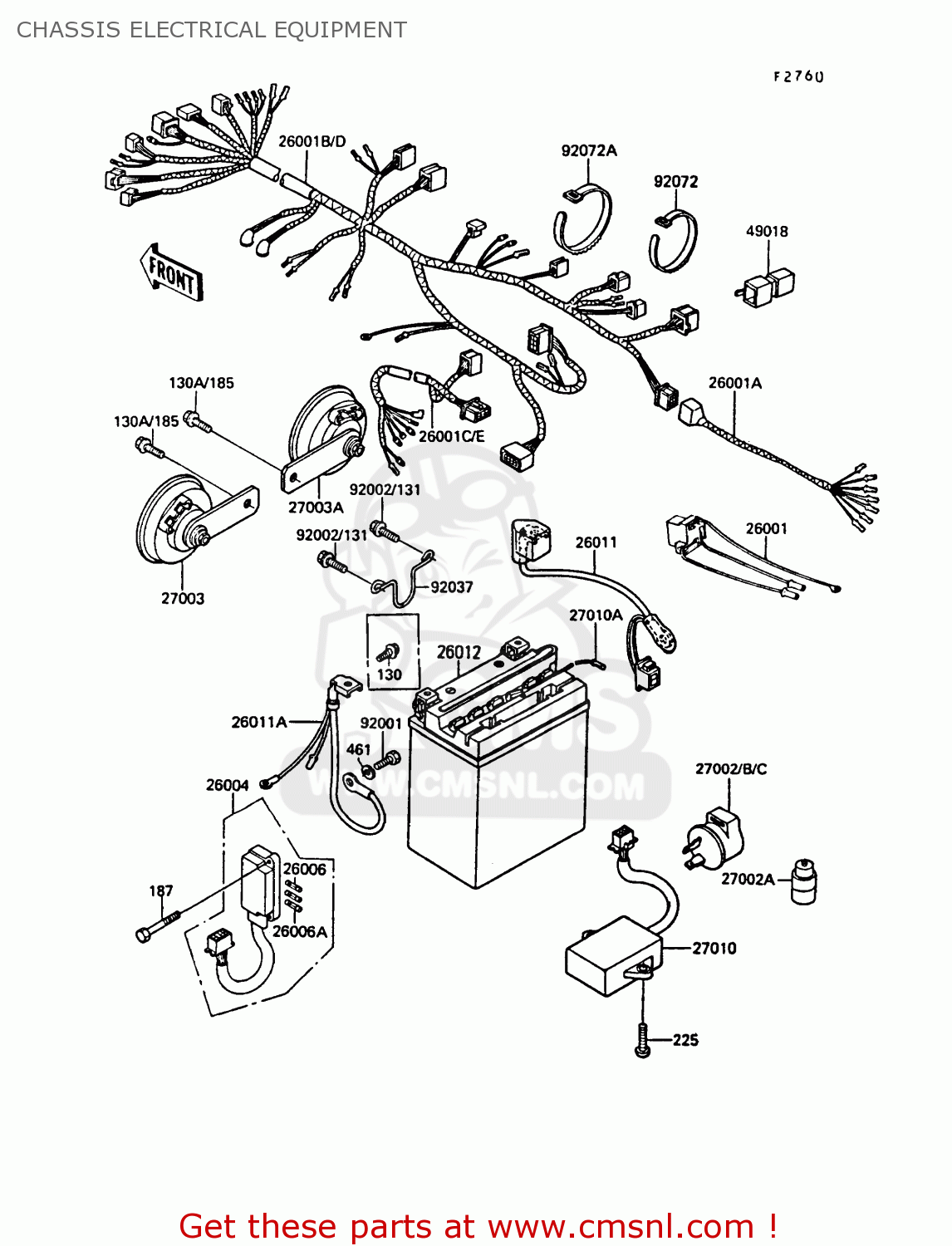

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0608
ref: 130

BOLT,FLANGED,6X8

€ 0.50

130A

130C0812
ref: 130A

BOLT-FLANGED,8X12,BLA

€ 0.50

187

187B0622
ref: 187

BOLT-UPSET-WSP

€ 2.50

225

225B0620
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

26001A

260011348
ref: 26001A

HARNESS,RR

€ 29.00

26001D

260011622
ref: 26001D

HARNESS,MAIN

€ 204.00

26001E

260011623
ref: 26001E

HARNESS,ENGINE SUB

€ 34.00

26004

260041020
ref: 26004

FUSE-ASSY

€ 59.00

26006

26006003
ref: 26006

FUSE 10A

€ 3.00

26006A

26006005
ref: 26006A

FUSE 20A

€ 3.50

26011

260111181
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 23.50

26011A

260111182
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 23.50

26012

260121211
ref: 26012

BATTERY,12V 12AH,FB12

€ 96.00

27002A

270021051
ref: 27002A

RELAY-ASSY

€ 32.00

27002B

270021053
ref: 27002B
FRUK

RELAY-ASSY,TURN SIGNA

€ 33.50

27002C

270021060
ref: 27002C
WG

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031057
ref: 27003

HORN,LH

€ 62.00

27003A

270031058
ref: 27003A

HORN,RH

€ 32.50

27010

270101077
ref: 27010

SWITCH,TURN SIGNAL OP

€ 55.00

27010A

270101085
ref: 27010A

SWITCH,BATTERY

€ 32.50

49018

490181052
ref: 49018

DIODE

€ 35.50

92002

920021204
ref: 92002

BOLT,FLANGED,6X14

€ 2.00

92037

920371383
ref: 92037

CLAMP,MAIN HARNESS

€ 6.50

92072

92072031
ref: 92072

BAND,MIDDLE

€ 3.00

92072A

92072032
ref: 92072A

BAND,LONG

€ 3.00

all assemblies
