TRANSMISSION

VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

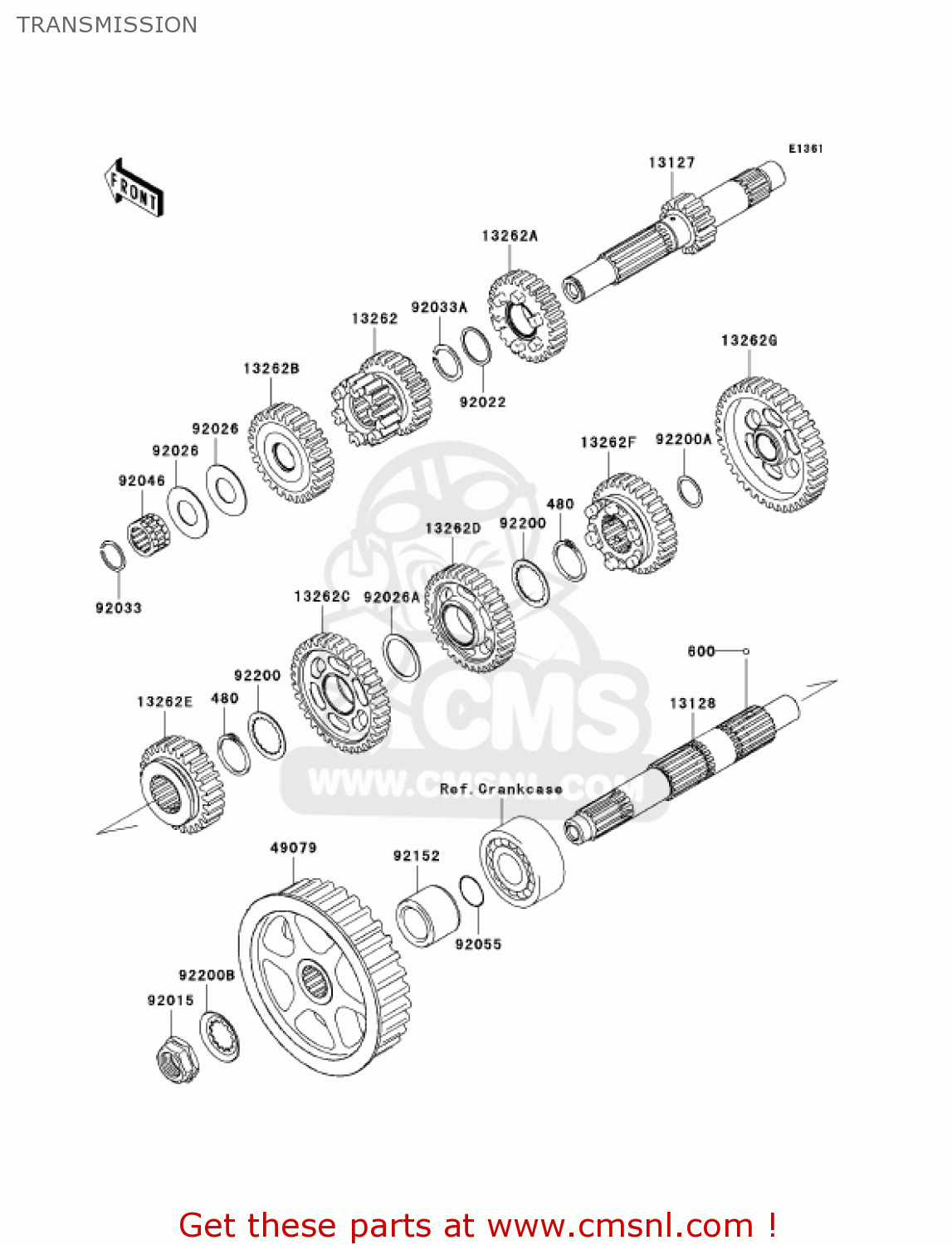

Transmission diagram VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

TRANSMISSION VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
TRANSMISSION VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
TRANSMISSION VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
480
480J2900
ref: 480
CIRCLIP
480J2900
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
600A0500
€ 0.50
13127
131270038
ref: 13127
SHAFT-TRANSMISSION IN
€ 265.50
13128
131280025
ref: 13128
SHAFT-TRANSMISSION OU
€ 218.50
13262
132620315
ref: 13262
GEAR,INPUT 2ND&3RD,18
€ 123.00
13262A
132620316
ref: 13262A
GEAR,INPUT 4TH,28T
€ 130.50
13262B
132620317
ref: 13262B
GEAR,INPUT 5TH,27T
€ 123.00
13262C
132620319
ref: 13262C
GEAR,OUTPUT 2ND,34T
€ 123.00
13262D
132620320
ref: 13262D
GEAR,OUTPUT 3RD,34T
€ 123.00
13262E
132620322
ref: 13262E
GEAR,OUTPUT 5TH,26T
€ 123.00
13262F
132620415
ref: 13262F
GEAR,OUTPUT 4TH,31T
€ 123.00
13262G
132620419
ref: 13262G
GEAR,OUTPUT LOW,39T
€ 123.00
49079
490790016
ref: 49079
PULLEY-BELT
490790016
€ 94.00
92015
920151963
ref: 92015
NUT,20MM
920151963
€ 10.50
92022
92022161
ref: 92022
WASHER-THRUST,25MM
92022161
€ 7.00
92026
920260083
ref: 92026
SPACER,20X41X1
€ 3.50
92026A
92026079
ref: 92026A
WASHER,30X38X1
92026079
€ 6.00
92033
92033015
ref: 92033
CIRCLIP
92033015
€ 2.50
92033A
92033026
ref: 92033A
CIRCLIP
92033026
€ 6.00
92046
920461303
ref: 92046
BEARING-NEEDLE,PK20X2
920461303
€ 22.00
92055
92055035
ref: 92055
O RING
92055035
€ 3.00
92152
921520335
ref: 92152
COLLAR
921520335
€ 2.50
92200
922000222
ref: 92200
WASHER,30.3X38X1.0
922000222
€ 3.50
92200A
922000291
ref: 92200A
WASHER,20.2X25.0X0.5
922000291
€ 1.50
92200B
922001065
ref: 92200B
WASHER
922001065
€ 4.50
