REAR WHEEL/CHAIN

VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

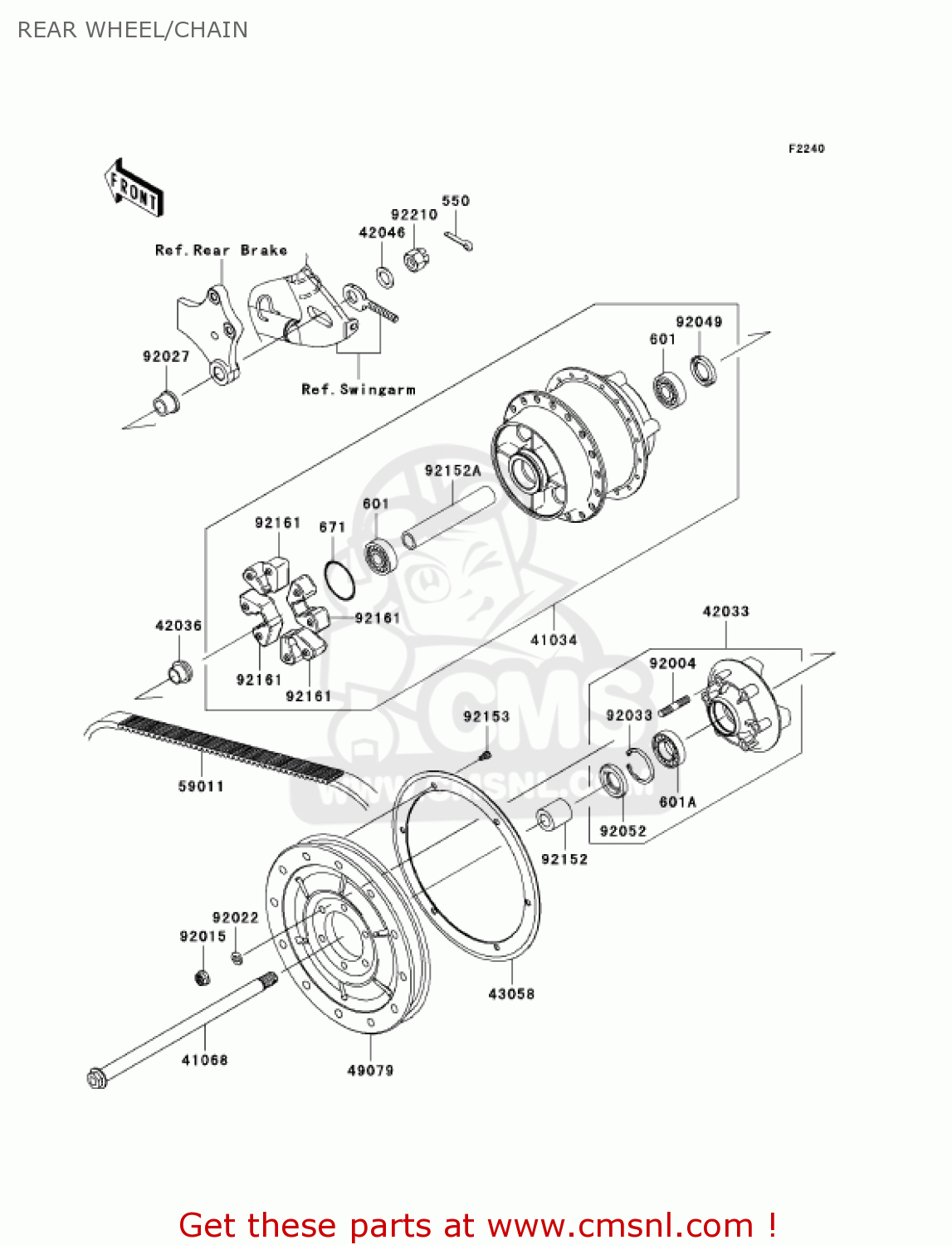

Rear wheel/chain diagram VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

REAR WHEEL/CHAIN VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
REAR WHEEL/CHAIN VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
REAR WHEEL/CHAIN VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
601B6204UU
€ 28.00
601A
601B6205UU
ref: 601A
BEARING-BALL
601B6205UU
€ 27.50
671
671B2560
ref: 671
O RING,60MM
671B2560
€ 1.50
41034
410340039
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 538.00
41068
410680057
ref: 41068
AXLE,RR
€ 68.00
42033
420330022
ref: 42033
COUPLING-ASSY,RR HUB
€ 152.50
42036
420361251
ref: 42036
SLEEVE,RR HUB,L=23
420361251
€ 18.00
42046
42046003
ref: 42046
WASHER,21X33X2.6
42046003
€ 2.50
43058
430580011
ref: 43058
RING,REAR PULLEY
430580011
€ 35.50
49079
490790011
ref: 49079
PULLEY-BELT
490790011
€ 723.00
59011
590110013
ref: 59011
BELT,DRIVE,153T
€ 388.50
92004
920040016
ref: 92004
STUD,10X35
920040016
€ 5.50
92015
920151335
ref: 92015
NUT,FLANGED,10MM
920151335
€ 1.50
92022
920221820
ref: 92022
WASHER,10.5X19X3.2
€ 2.50
92027
920271902
ref: 92027
COLLAR,RR AXLE,L=21.5
920271902
€ 17.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92152
921520350
ref: 92152
COLLAR,RR AXLE,LH,L=3
921520350
€ 22.00
92152A
921520351
ref: 92152A
COLLAR,REAR BRAKE DRU
€ 17.50
92153
921531525
ref: 92153
BOLT,SOCKET,6X12
€ 1.00
92161
921610342
ref: 92161
DAMPER,SHOCK,RR HUB
921610342
€ 19.00
92210
922101134
ref: 92210
NUT
922101134
€ 4.50
