GEAR CHANGE MECHANISM

VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

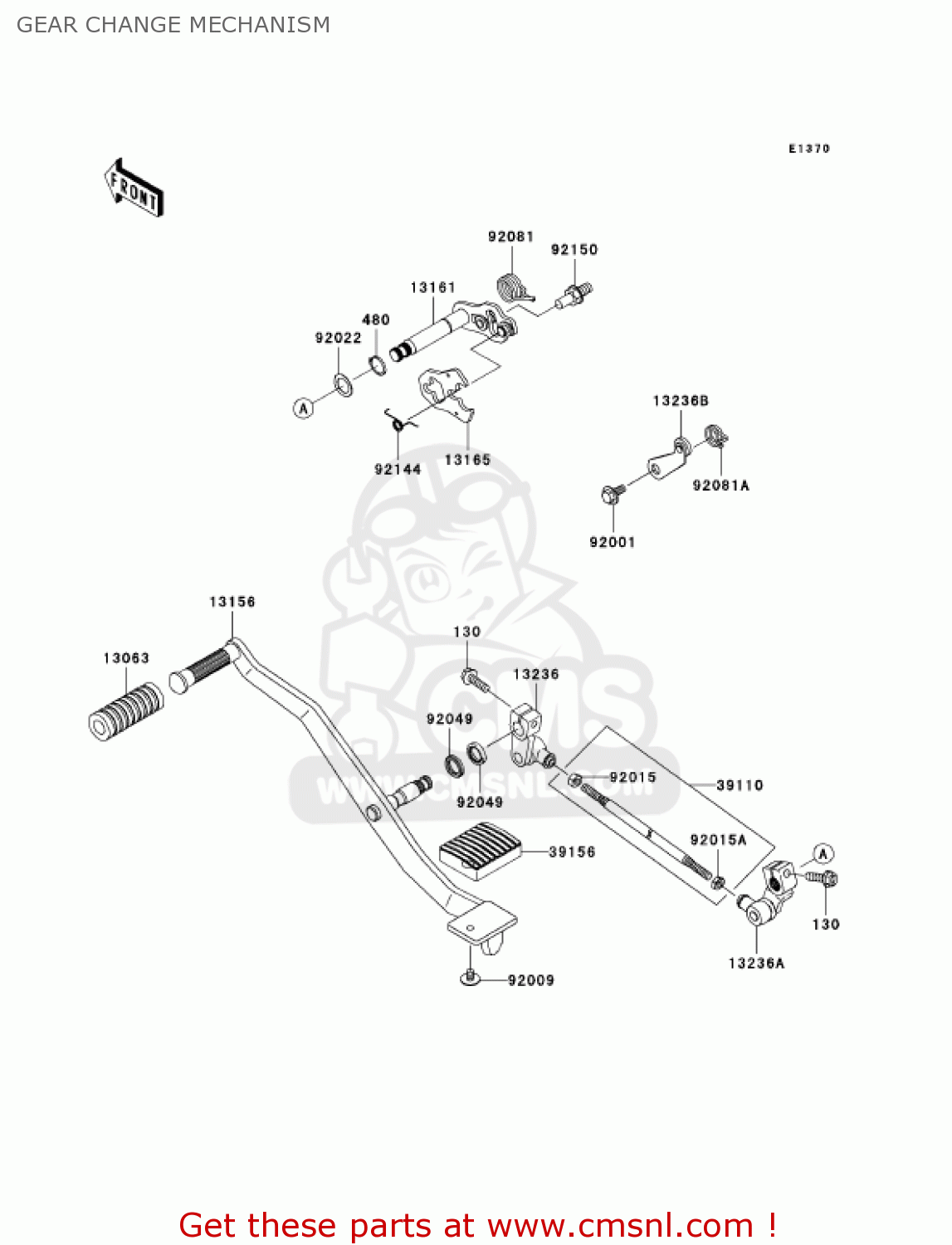

Gear change mechanism diagram VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

prices are in EUR

ref

part #

description

quantity

130

130W0620
ref: 130

BOLT-FLANGED

€ 2.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13156

131560063
ref: 13156

LEVER-CHANGE

€ 137.00

13161

131610046
ref: 13161

LEVER-COMP-CHANGE SHA

€ 64.50

13165

131651151
ref: 13165

PAWL,CHANGE LEVER

€ 9.50

13236

132360100
ref: 13236

LEVER-COMP

€ 38.50

13236A

132360119
ref: 13236A

LEVER-COMP

€ 41.50

13236B

132361126
ref: 13236B

LEVER-COMP,POSITION

€ 9.00

39110

391101124
ref: 39110

ROD-ASSY-TIE

€ 13.50

39156

391561641
ref: 39156

PAD

€ 9.50

92001

920011715
ref: 92001

BOLT

€ 7.00

92009

920091677
ref: 92009

SCREW,6X8,BLACK

€ 2.50

92015

920151443
ref: 92015

NUT

€ 2.50

92015A

920151444
ref: 92015A

NUT

€ 3.00

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92049

920491398
ref: 92049

SEAL-OIL,VB13193

€ 4.00

92081

920811750
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.50

92081A

920811777
ref: 92081A

SPRING,RETURN

€ 6.00

92144

921441029
ref: 92144

SPRING

€ 5.00

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00
