CRANKCASE BOLT PATTERN

VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

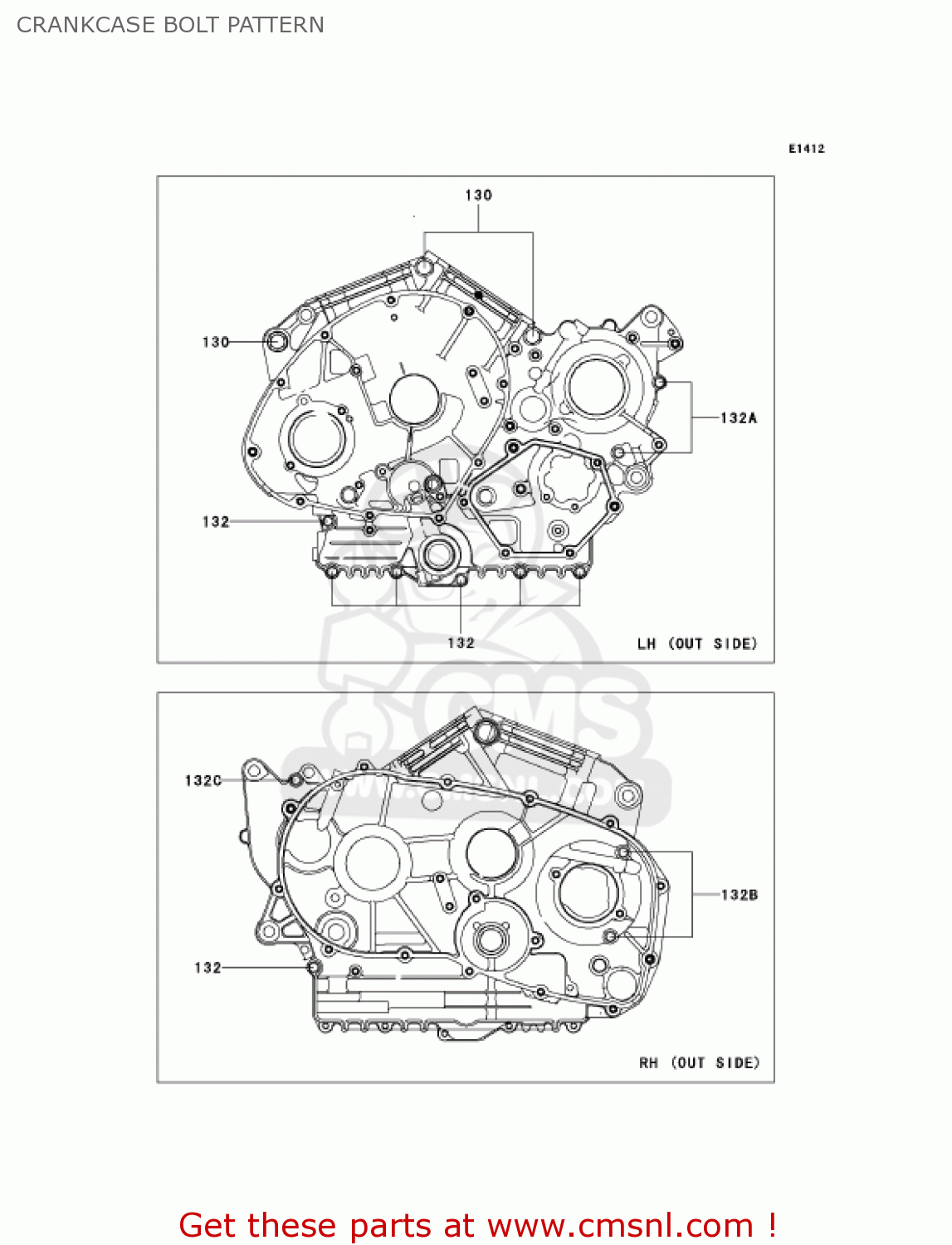

Crankcase bolt pattern diagram VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

CRANKCASE BOLT PATTERN VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

CRANKCASE BOLT PATTERN VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

prices are in EUR

ref

part #

description

quantity

130L1090

130L1090
ref: 130L1090

BOLT-FLANGED,10X90

€ 2.50

132L0630

132L0630
ref: 132L0630

BOLT-FLANGED-SMALL

€ 2.00

132L0660

132L0660
ref: 132L0660

BOLT-FLANGED-SMALL,6X

€ 1.50

132L0670

132L0670
ref: 132L0670

BOLT-FLANGED-SMALL,6X

€ 1.50

132L0685

132L0685
ref: 132L0685

BOLT-FLANGED-SMALL,6X

€ 1.50
