FRONT FORK

VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

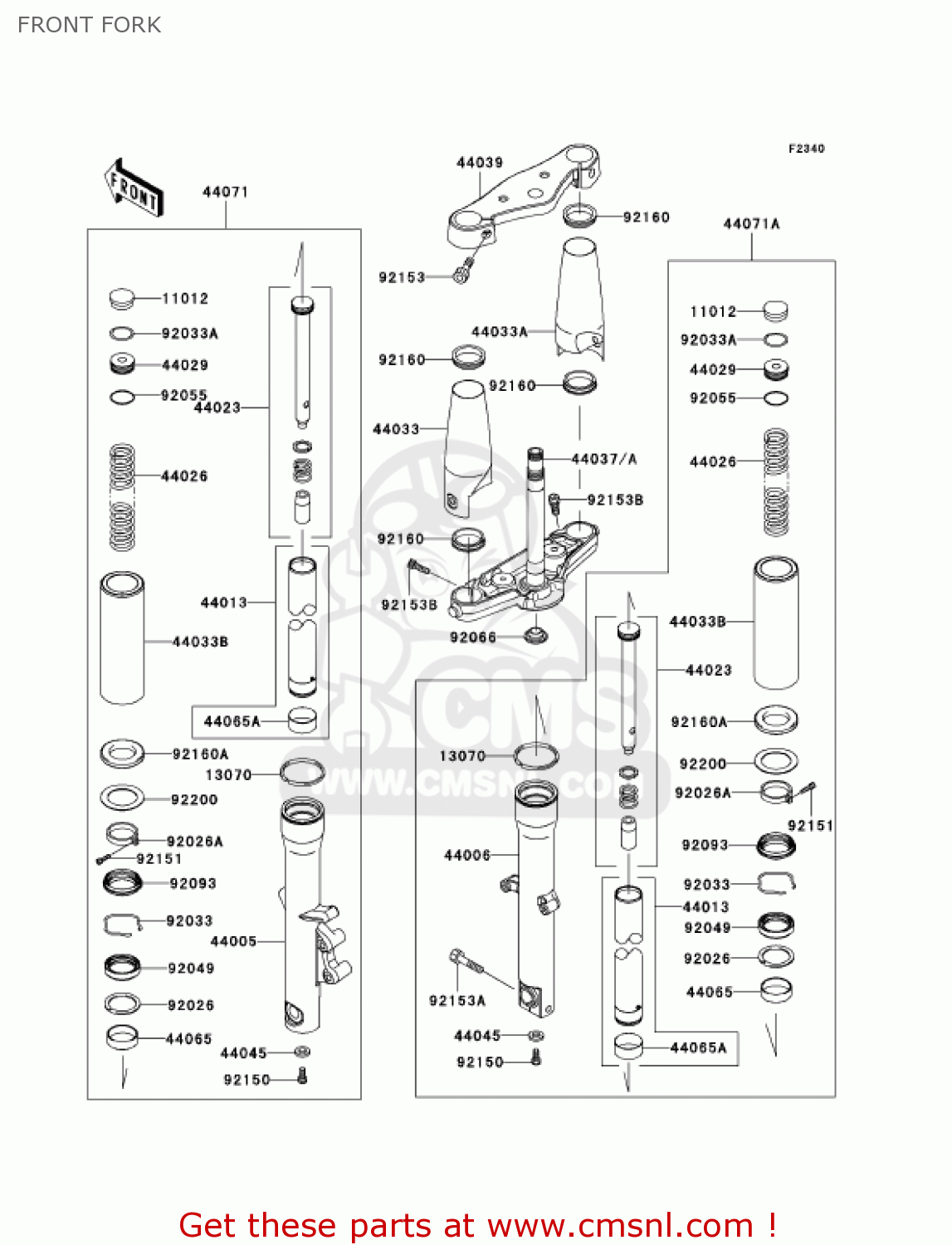

Front fork diagram VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT

FRONT FORK VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
FRONT FORK VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
FRONT FORK VN900D6F VULCAN 900 CLASSIC 2006 USA CALIFORNIA CANADA / LT
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
13070
130700056
ref: 13070
GUIDE
€ 8.50
44005
440050043
ref: 44005
PIPE-LEFT FORK OUTER
440050043
€ 328.50
44006
440060043
ref: 44006
PIPE-RIGHT FORK OUTER
€ 341.00
44013
440130049
ref: 44013
PIPE-FORK INNER
€ 195.00
44023
440230042
ref: 44023
CYLINDER-SET-FORK
€ 70.00
44026
440260074
ref: 44026
SPRING-FRONT FORK
440260074
€ 58.50
44029
440290008
ref: 44029
SEAT-FORK SPRING
440290008
€ 23.50
44033
440330035
ref: 44033
COVER-FORK,LH
440330035
€ 86.50
44033A
440330037
ref: 44033A
COVER-FORK,RH
440330037
€ 86.50
44033B
440330039
ref: 44033B
COVER-FORK
440330039
€ 79.50
44037
440370043
ref: 44037
HOLDER-FORK UNDER
440370043
€ 267.00
44039
440390039
ref: 44039
HOLDER-FORK UPPER
440390039
€ 283.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440650019
ref: 44065
BUSHING-FRONT FORK
440650019
€ 18.50
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
440651087
€ 19.00
44071
440710316
ref: 44071
DAMPER-ASSY,FORK,LH
440710316
€ 614.50
44071A
440710317
ref: 44071A
DAMPER-ASSY,FORK,RH
440710317
€ 614.50
92026
920260090
ref: 92026
SPACER,FORK
€ 15.00
92026A
920261515
ref: 92026A
SPACER
920261515
€ 13.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92049
920490058
ref: 92049
SEAL-OIL
920490058
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92066
920660078
ref: 92066
PLUG
€ 9.00
92093
920930035
ref: 92093
SEAL,DUST
920930035
€ 19.00
92150
921501432
ref: 92150
BOLT
921501432
€ 6.50
92151
921511356
ref: 92151
BOLT
921511356
€ 1.50
92153
921530500
ref: 92153
BOLT,SOCKET
921530500
€ 8.00
92153A
921530533
ref: 92153A
BOLT
€ 8.00
92153B
921531376
ref: 92153B
BOLT,SOCKET,10X25
€ 3.00
92160
921601892
ref: 92160
DAMPER
921601892
€ 2.50
92160A
921601927
ref: 92160A
DAMPER
921601927
€ 6.00
92200
922001417
ref: 92200
WASHER
€ 4.50
