SUSPENSION/SHOCK ABSORBER

VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

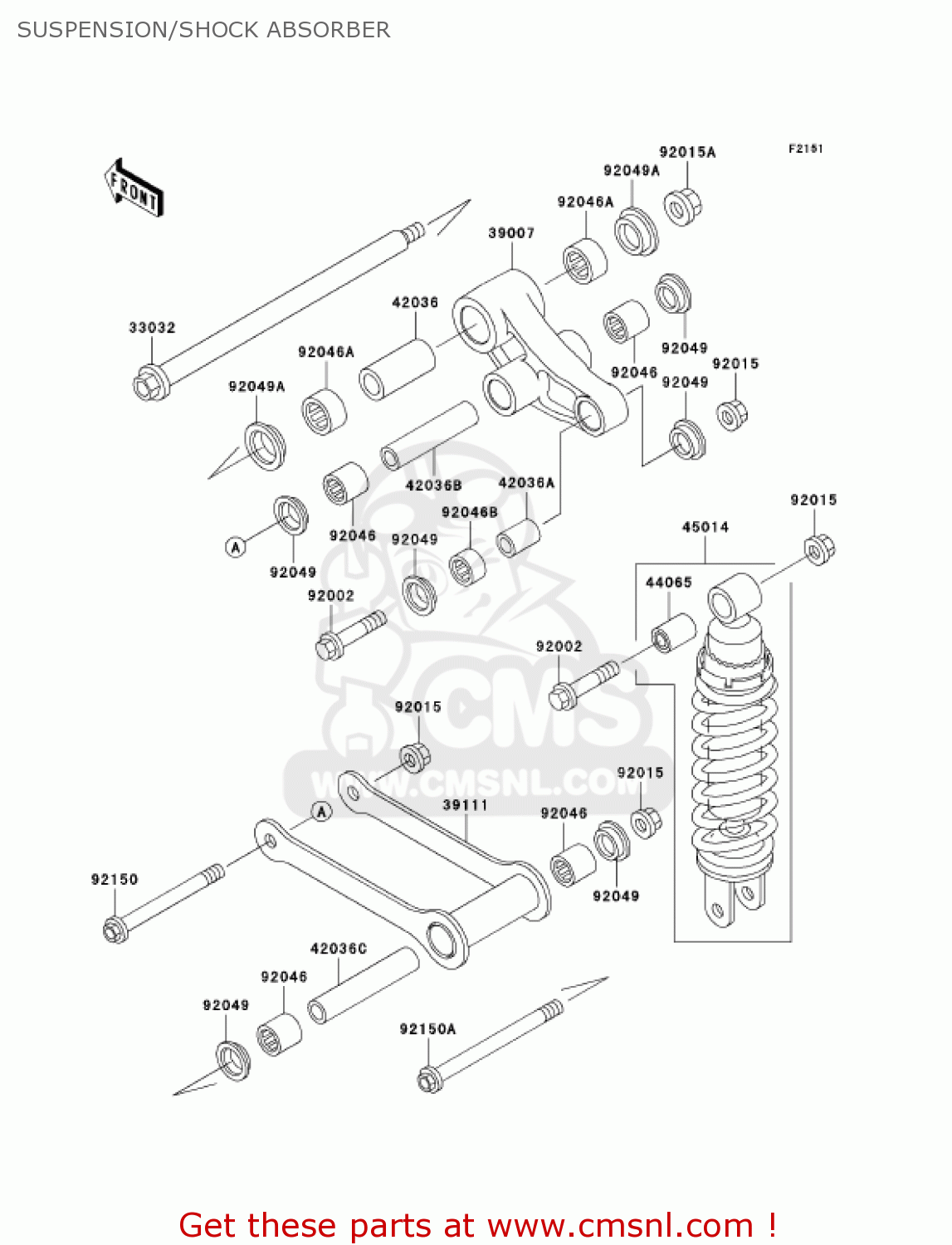

Suspension/shock absorber diagram VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

33032

330321176
ref: 33032

SHAFT-SWING ARM

€ 59.00

39007

390071233
ref: 39007

ARM-SUSP,UNI TRAK

€ 219.00

39111

391111141
ref: 39111

ROD-TIE,SUSPENSION

€ 117.50

42036

420361207
ref: 42036

SLEEVE,20X28X60

€ 22.50

42036A

420361234
ref: 42036A

SLEEVE,12.1X20X30

€ 10.50

42036B

420361322
ref: 42036B

SLEEVE,12.1X20X92

€ 12.50

42036C

420361323
ref: 42036C

SLEEVE,12.1X20X108

€ 14.50

44065

440651017
ref: 44065

BUSHING-FRONT FORK

€ 21.50

45014

450141598
ref: 45014

SHOCKABSORBER

€ 580.00

92002

920021130
ref: 92002

BOLT,12X55

€ 7.00

92015

920151433
ref: 92015

NUT,12MM

€ 6.00

92015A

920151946
ref: 92015A

NUT

€ 8.50

92046

920461110
ref: 92046

BEARING-NEEDLE,BM2027

€ 22.50

92046A

920461111
ref: 92046A

BEARING-NEEDLE,BM2817

€ 21.50

92046B

920461112
ref: 92046B

BEARING-NEEDLE,BM2027

€ 21.50

92049

920491109
ref: 92049

SEAL-OIL,ARM,CNT

€ 6.50

92049A

920491181
ref: 92049A

SEAL-OIL

€ 7.50

92150

921501895
ref: 92150

BOLT,FLANGED,12X117

€ 8.50

92150A

921501896
ref: 92150A

BOLT,FLANGED,12X145

€ 10.00
