IGNITION SWITCH/LOCKS/REFLECTORS

VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

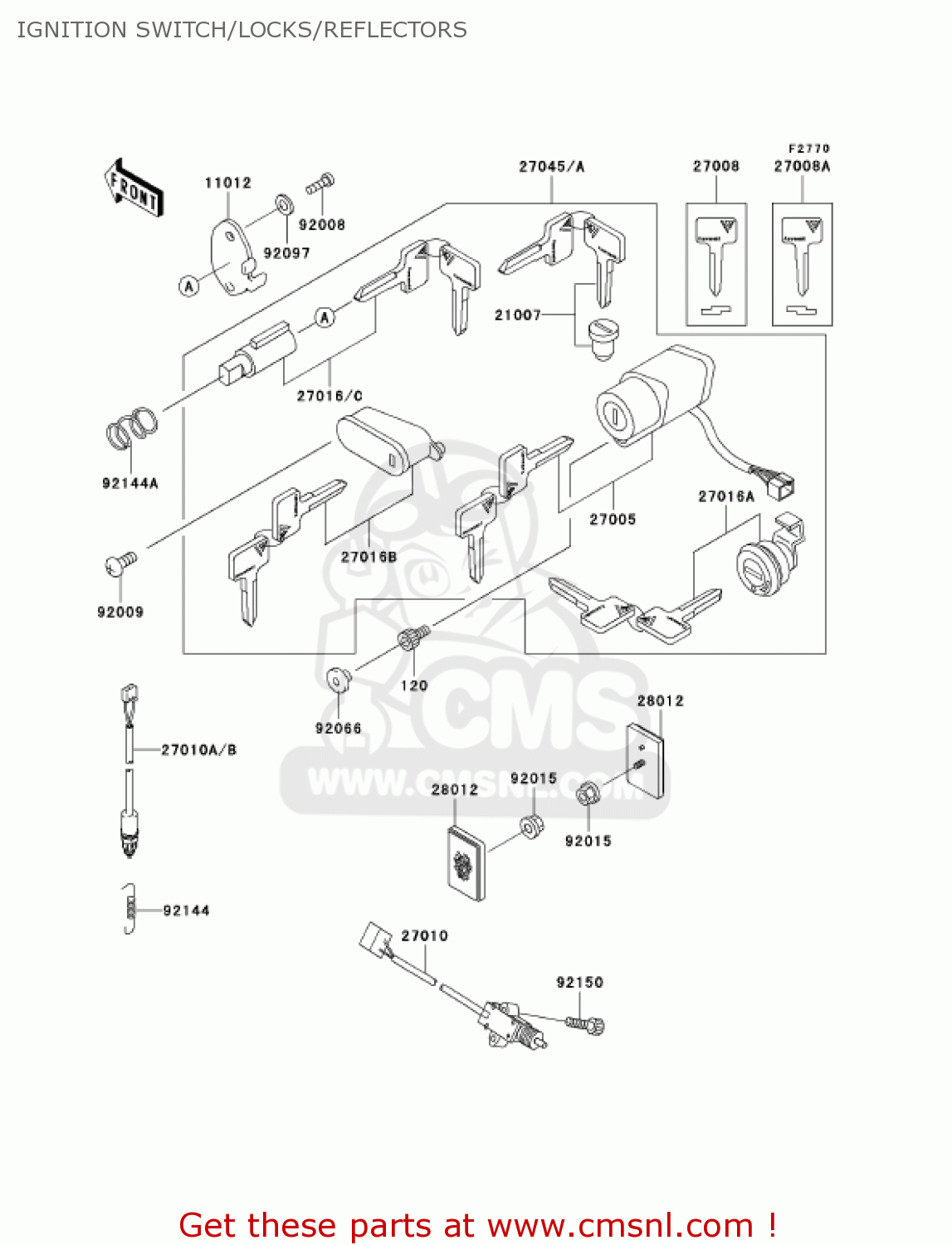

Ignition switch/locks/reflectors diagram VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
11012
110121586
ref: 11012
CAP,STEERING LOCK
110121586
€ 5.00
21007
210075024
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27005
270051204
ref: 27005
SWITCH-ASSY-IGNITION
270051204
€ 231.00
27008
270081138
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081138
€ 13.00
27008A
270081139
ref: 27008A
(OPTION)
KEY-LOCK,BLANK
270081139
€ 13.00
27010
270101352
ref: 27010
SWITCH,SIDE STAND
270101352
€ 57.00
27010B
270101487
ref: 27010B
SWITCH,REAR BRAKE
270101487
€ 25.50
27016A
270165225
ref: 27016A
LOCK-ASSY,LID
270165225
€ 53.50
27016B
270165226
ref: 27016B
LOCK-ASSY HELMET
€ 58.00
27016C
270165299
ref: 27016C
LOCK-ASSY,STEERING
270165299
€ 66.50
27045A
270455191
ref: 27045A
SWITCH-ASSY
270455191
€ 347.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92015
920151656
ref: 92015
NUT,FLANGED,5MM
920151656
€ 2.00
92066
920661435
ref: 92066
PLUG
920661435
€ 2.00
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92144A
921441222
ref: 92144A
SPRING,STEERING LOCK
921441222
€ 2.50
92150
921501491
ref: 92150
BOLT
921501491
€ 2.50
