CABLES

VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

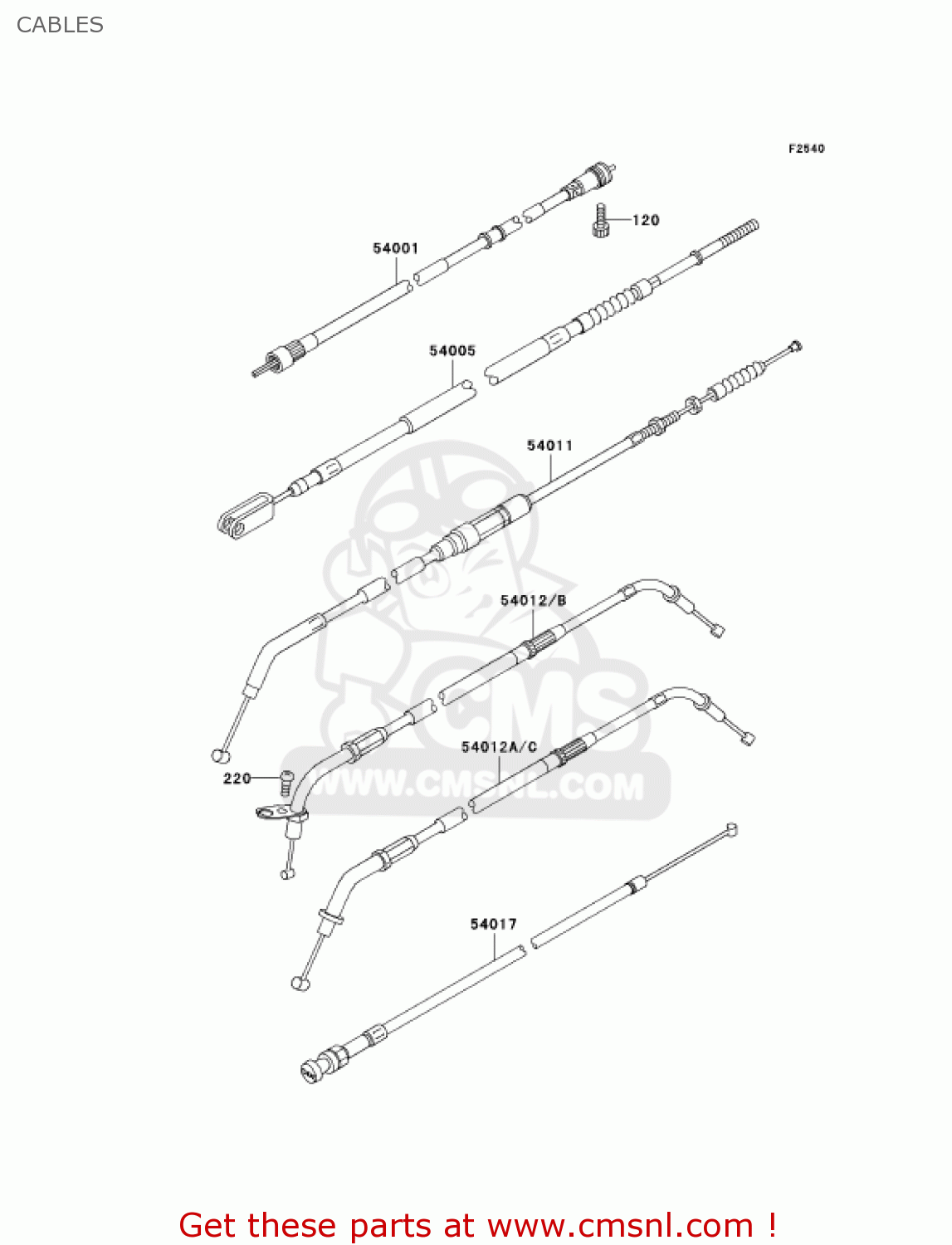

Cables diagram VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

120

120P0520
ref: 120

BOLT-SOCKET

€ 4.50

220

220F0514
ref: 220

SCREW-PAN-CROSS

€ 1.00

54001

540011219
ref: 54001

CABLE-SPEEDMETER

€ 30.00

54005

540051182
ref: 54005

CABLE-BRAKE

€ 38.50

54011

540111356
ref: 54011

CABLE-CLUTCH

€ 26.50

54012

540120056
ref: 54012

CABLE-THROTTLE,OPENIN

€ 28.00

54012A

540120057
ref: 54012A

CABLE-THROTTLE,CLOSIN

€ 28.00

54017

540171201
ref: 54017

CABLE-STARTER

€ 30.00
