FRONT WHEEL

VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

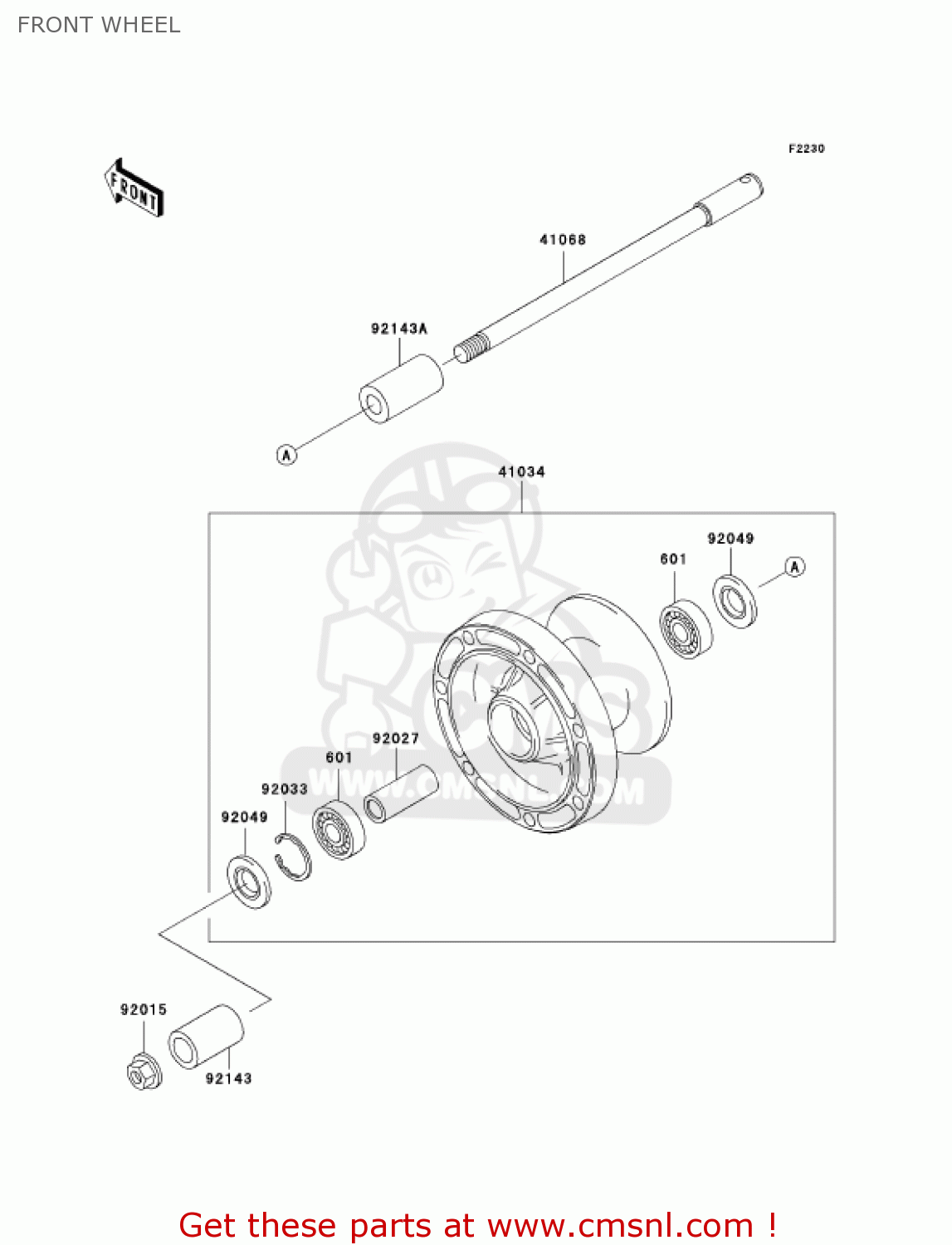

Front wheel diagram VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

FRONT WHEEL VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

FRONT WHEEL VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

41034

410341266
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 462.00

41068

410681378
ref: 41068

AXLE,FR

€ 61.50

92015

920151993
ref: 92015

NUT,FLANGED,18MM

€ 6.50

92027

920271752
ref: 92027

COLLAR,20.2X28X70

€ 13.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50

92143A

921431854
ref: 92143A

COLLAR,FR AXLE,RH,L=5

€ 23.00
