STARTER MOTOR

VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

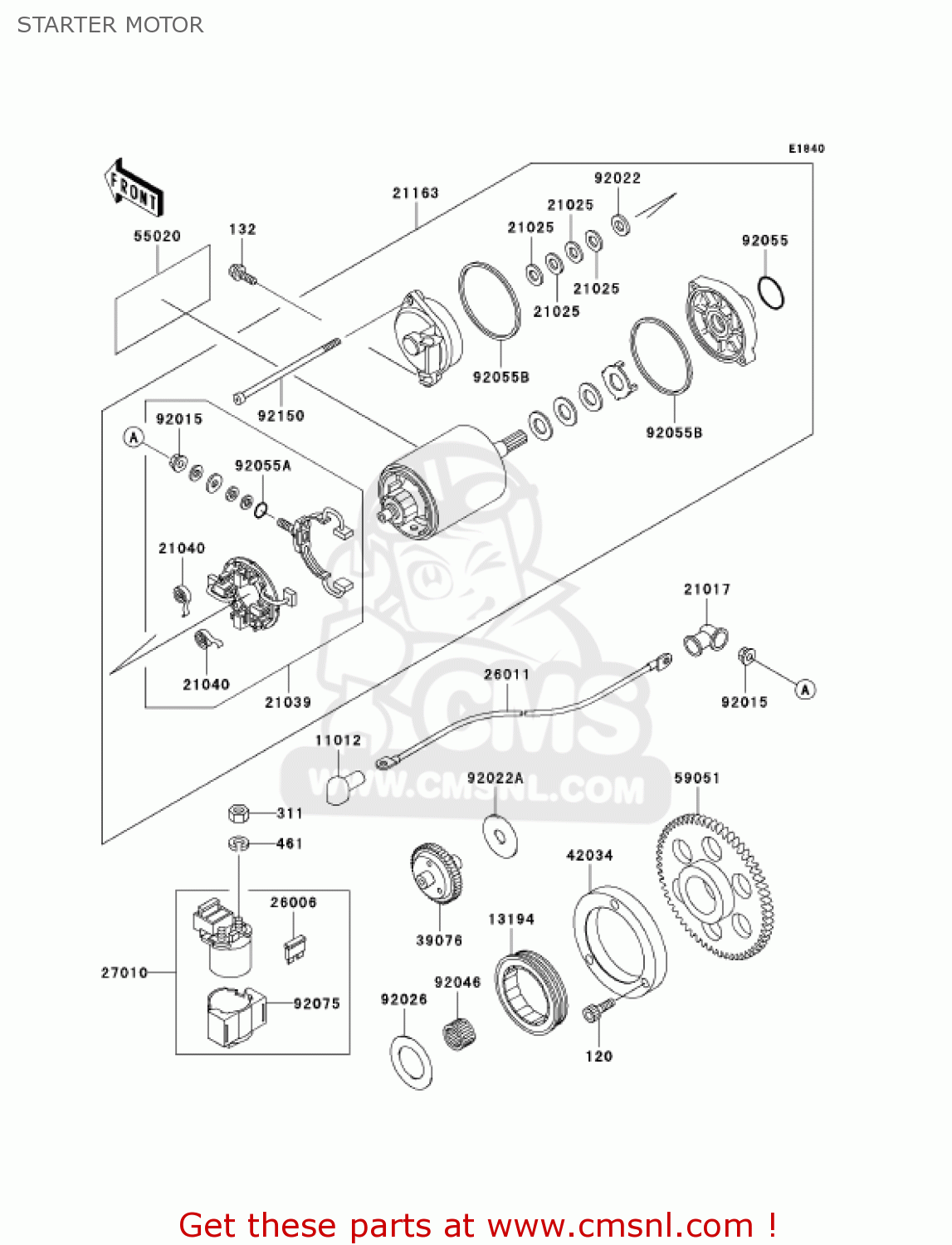

Starter motor diagram VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA

STARTER MOTOR VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
STARTER MOTOR VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
STARTER MOTOR VN800B9 VULCAN 800 CLASSIC 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120Q0820
ref: 120
BOLT,ALLEN,8X20
€ 2.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
132J0625
€ 2.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
110121354
€ 7.00
13194
131941085
ref: 13194
CLUTCH-ONEWAY
131941085
€ 138.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631263
ref: 21163
STARTER-ELECTRIC
211631263
€ 574.50
26006
260061006
ref: 26006
FUSE,30A-G
260061006
€ 3.00
26011
260111628
ref: 26011
WIRE-LEAD
€ 59.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
270101213
€ 111.00
39076
390761070
ref: 39076
LIMITER,STARTER IDLE
390761070
€ 90.50
42034
420341143
ref: 42034
COUPLING
420341143
€ 103.00
55020
550201589
ref: 55020
GUARD,STARTER MOTER
€ 4.50
59051
590511130
ref: 59051
GEAR-SPUR,STARTER,63T
590511130
€ 138.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92022A
920221664
ref: 92022A
WASHER,12.3X38X2.0
920221664
€ 4.50
92026
92026087
ref: 92026
SPACER,CONNECTING ROD
92026087
€ 6.50
92046
920461137
ref: 92046
BEARING-NEEDLE
920461137
€ 29.00
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92150
921501913
ref: 92150
BOLT,STARTER MOTOR
921501913
€ 6.50
