TAILLIGHT(S)
VN800B2A VN800 CLASSIC 1997 NETHERLANDS

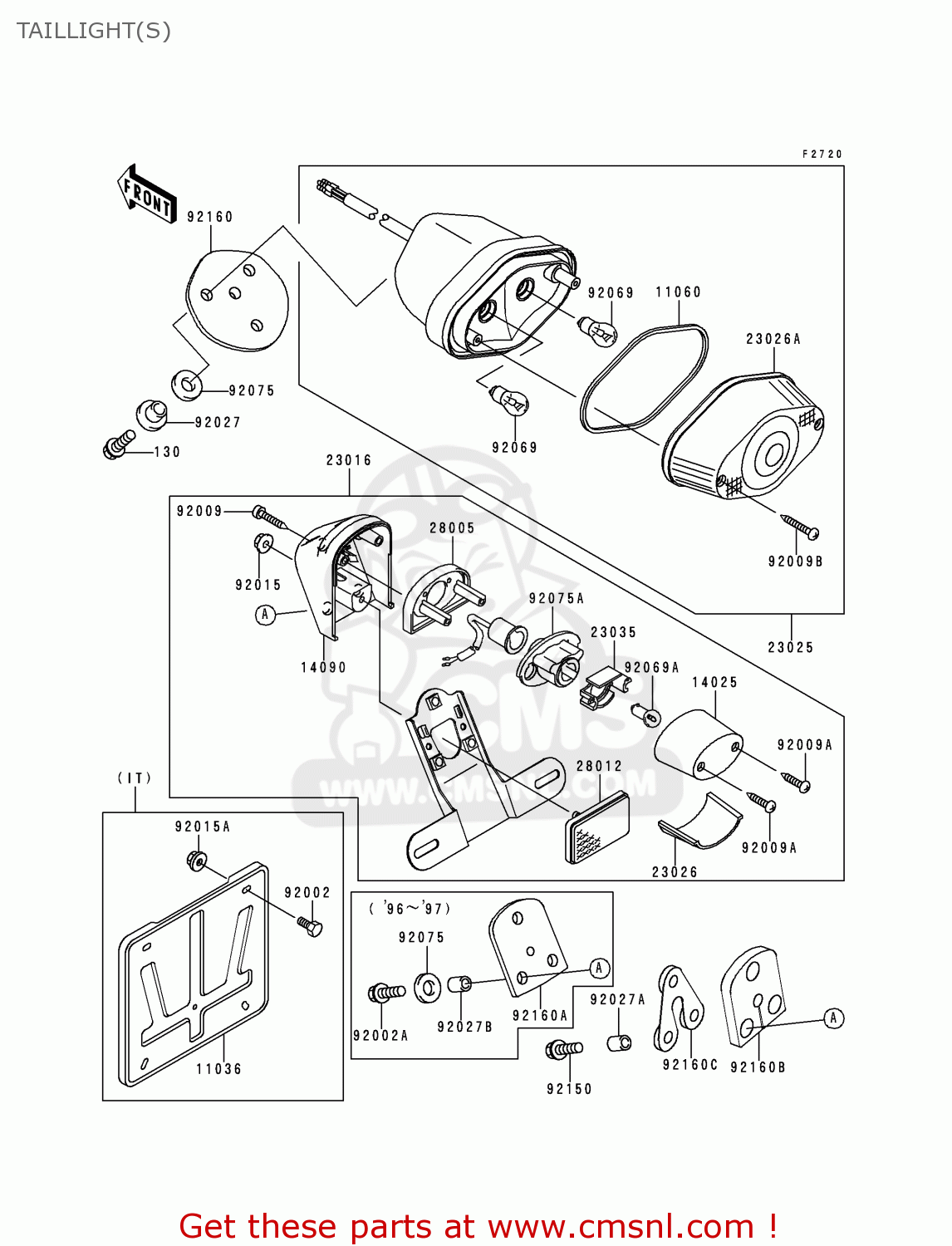

Taillight(s) diagram VN800B2A VN800 CLASSIC 1997 NETHERLANDS
TAILLIGHT(S) VN800B2A VN800 CLASSIC 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
130
130H0622
ref: 130
BOLT-FLANGED
€ 1.00
11060
110601727
ref: 11060
GASKET,TAIL LAMP (NAS)
€ 3.50
14025
140251725
ref: 14025
COVER,LICENSE LAMP
€ 12.50
14090
140901659
ref: 14090
COVER,LICENSE LAMP
€ 16.00
23016
230161150
ref: 23016
LAMP-ASSY,LICENSE
€ 138.00
23025
230251253
ref: 23025
LAMP-TAIL
€ 203.00
23026
230261064
ref: 23026
LENS,LICENSE LAMP
€ 24.00
23026A
230261187
ref: 23026A
LENS,TAIL LAMP
€ 50.00
23035
230351066
ref: 23035
REFLECTOR-LAMP,LICENS
€ 13.00
28005
280051051
ref: 28005
BODY-LAMP,LICENSE
€ 19.50
28012
280121078
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
92002A
920021135
ref: 92002A
BOLT,6X25
€ 2.50
92009
920091263
ref: 92009
SCREW,TAPPING,5X40
€ 2.50
92009A
920091378
ref: 92009A
SCREW,TAPPING,4X20
€ 2.50
92009B
920091761
ref: 92009B
SCREW
€ 2.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92027B
920271941
ref: 92027B
COLLAR,6.8X10X15
€ 3.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075121
ref: 92075
DAMPER,FENDER
€ 2.50
92075A
920751694
ref: 92075A
DAMPER,LICENSE LAMP
€ 12.00
92160
921601684
ref: 92160
DAMPER,TAIL LAMP
€ 13.50
92160A
921601685
ref: 92160A
DAMPER,LICENSE LAMP
€ 12.00
