FUEL TANK(VN800-B1∼B3)

VN800B2A VN800 CLASSIC 1997 NETHERLANDS

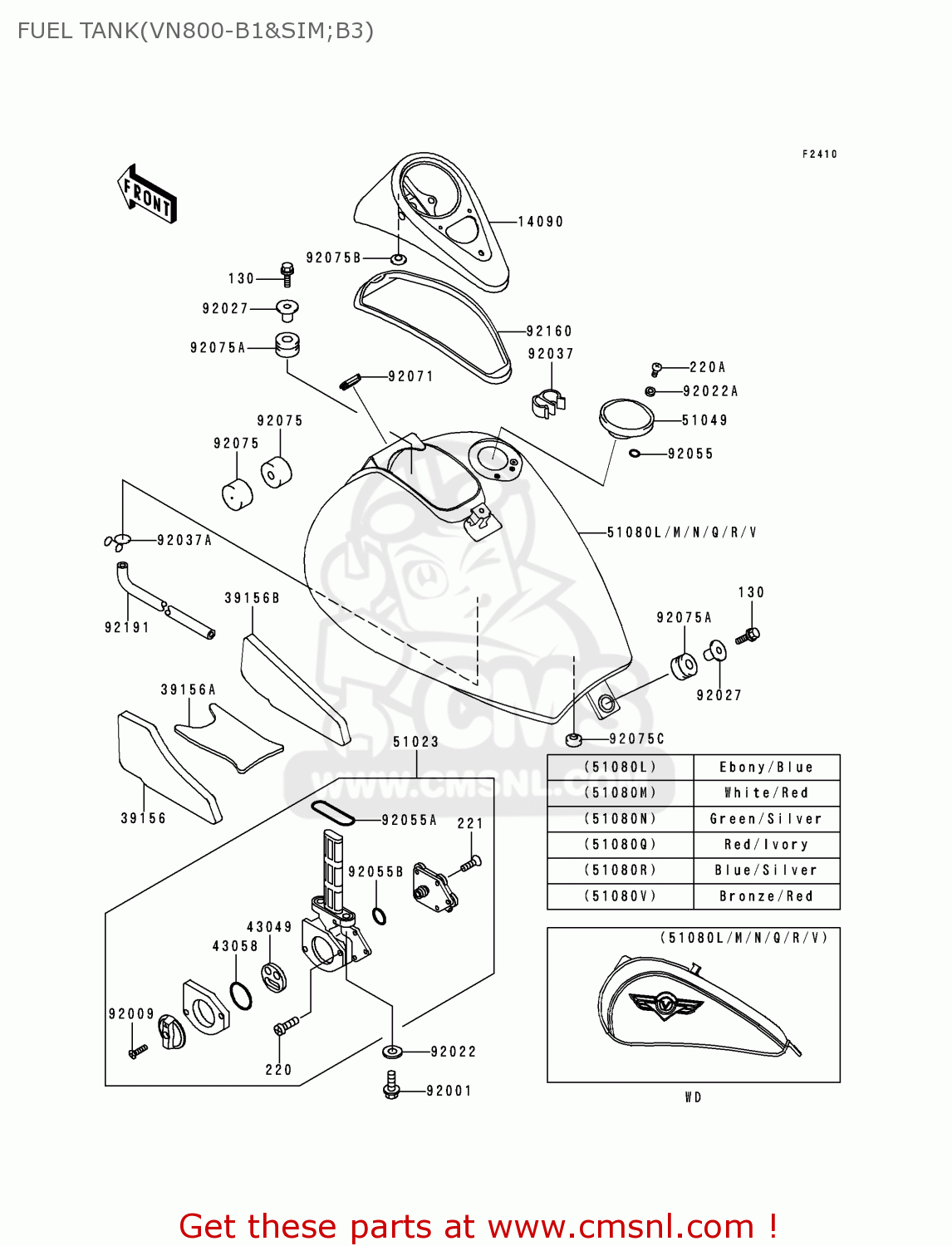

Fuel tank(vn800-b1∼b3) diagram VN800B2A VN800 CLASSIC 1997 NETHERLANDS

FUEL TANK(VN800-B1∼B3) VN800B2A VN800 CLASSIC 1997 NETHERLANDS
FUEL TANK(VN800-B1∼B3) VN800B2A VN800 CLASSIC 1997 NETHERLANDS
FUEL TANK(VN800-B1∼B3) VN800B2A VN800 CLASSIC 1997 NETHERLANDS
prices are in EUR
ref
part #
description
quantity
14090
140901560
ref: 14090
COVER,METER
140901560
€ 104.00
39156
391561512
ref: 39156
PAD,FUEL TANK,LH
391561512
€ 18.00
39156A
391561513
ref: 39156A
PAD,FUEL TANK,CNT
391561513
€ 15.00
39156B
391561514
ref: 39156B
PAD,FUEL TANK,RH
€ 18.50
43049
430491075
ref: 43049
PACKING,TAP VALVE (NAS)
430491075
€ 6.00
43058
430581083
ref: 43058
RING,TAP LEVER
430581083
€ 5.50
51023
510231219
ref: 51023
TAP-ASSY,FUEL
€ 97.50
51049
510491103
ref: 51049
CAP-TANK,FUEL
€ 91.00
51080L
5108052845S
ref: 51080L
TANK-COMP-FUEL,EBONY/
€ 748.50
51080Q
5108053602X
ref: 51080Q
TANK-COMP-FUEL,RED/IV
€ 748.50
51080R
510805361H6
ref: 51080R
TANK-COMP-FUEL,BLUE/S
€ 813.50
130
130H0830
ref: 130
BOLT-FLANGED,8X30
130H0830
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
220D0510
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
92001
920011524
ref: 92001
BOLT, 6X25
€ 1.50
92009
920091742
ref: 92009
SCREW
€ 1.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
920371458
ref: 92037
CLAMP,BRAKE HOSE & SE
920371458
€ 4.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
920551112
€ 3.00
92055B
920551539
ref: 92055B
RING-O
920551539
€ 4.00
92071
920711187
ref: 92071
GROMMET
920711187
€ 3.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
920751736
€ 4.00
92075B
92075261
ref: 92075B
DAMPER,BATTERY CASE
92075261
€ 3.00
92075C
92075281
ref: 92075C
DAMPER,9X24X14
92075281
€ 4.00
92160
921601593
ref: 92160
DAMPER,METER COVER
921601593
€ 33.00
92191
921911015
ref: 92191
TUBE
921911015
€ 19.50
