CHASSIS ELECTRICAL EQUIPMENT

VN800B2A VN800 CLASSIC 1997 NETHERLANDS

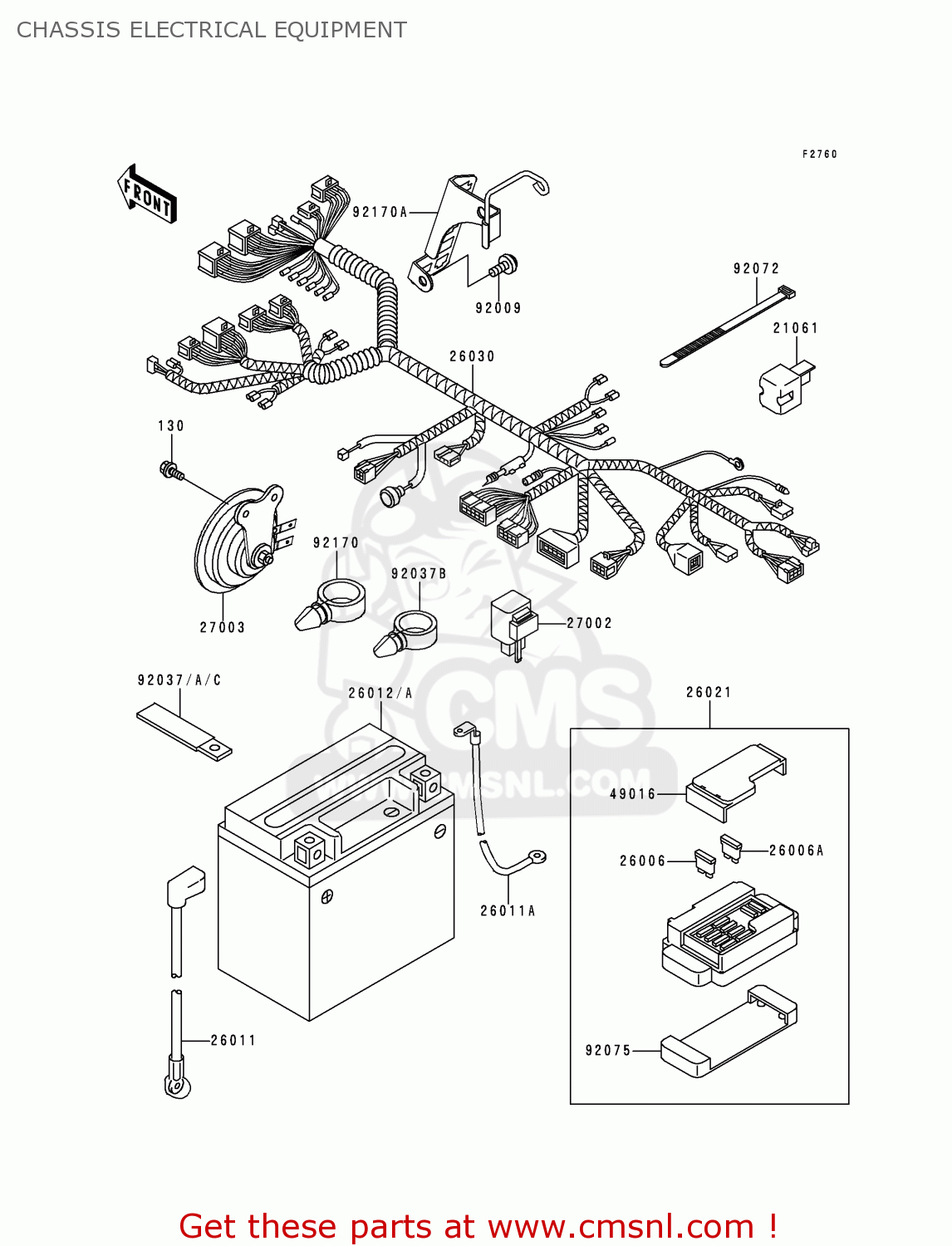

Chassis electrical equipment diagram VN800B2A VN800 CLASSIC 1997 NETHERLANDS

CHASSIS ELECTRICAL EQUIPMENT VN800B2A VN800 CLASSIC 1997 NETHERLANDS
CHASSIS ELECTRICAL EQUIPMENT VN800B2A VN800 CLASSIC 1997 NETHERLANDS
CHASSIS ELECTRICAL EQUIPMENT VN800B2A VN800 CLASSIC 1997 NETHERLANDS
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
21061
210611003
ref: 21061
RECTIFIER
210611003
€ 25.00
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111621
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 22.00
26011A
260111633
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 20.50
26012A
260121334
ref: 26012A
BATTERY,YTX14-BS,12V
€ 124.50
26021
260211090
ref: 26021
JUNCTION BOX
260211090
€ 140.50
26030
260301437
ref: 26030
HARNESS,MAIN
€ 238.00
27002
270021101
ref: 27002
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031239
ref: 27003
HORN,350HZ,LH
270031239
€ 58.50
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92009
920091662
ref: 92009
SCREW
920091662
€ 2.50
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
920371539
€ 3.00
92037B
920371827
ref: 92037B
CLAMP,HOSE
920371827
€ 5.00
92037C
920371993
ref: 92037C
CLAMP
920371993
€ 3.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
92170
921701067
ref: 92170
CLAMP,HOSE
921701067
€ 5.00
92170A
921701570
ref: 92170A
CLAMP,HARNESS
921701570
€ 14.00
