HEADLIGHT(S)
VN800B2A VN800 CLASSIC 1997 NETHERLANDS

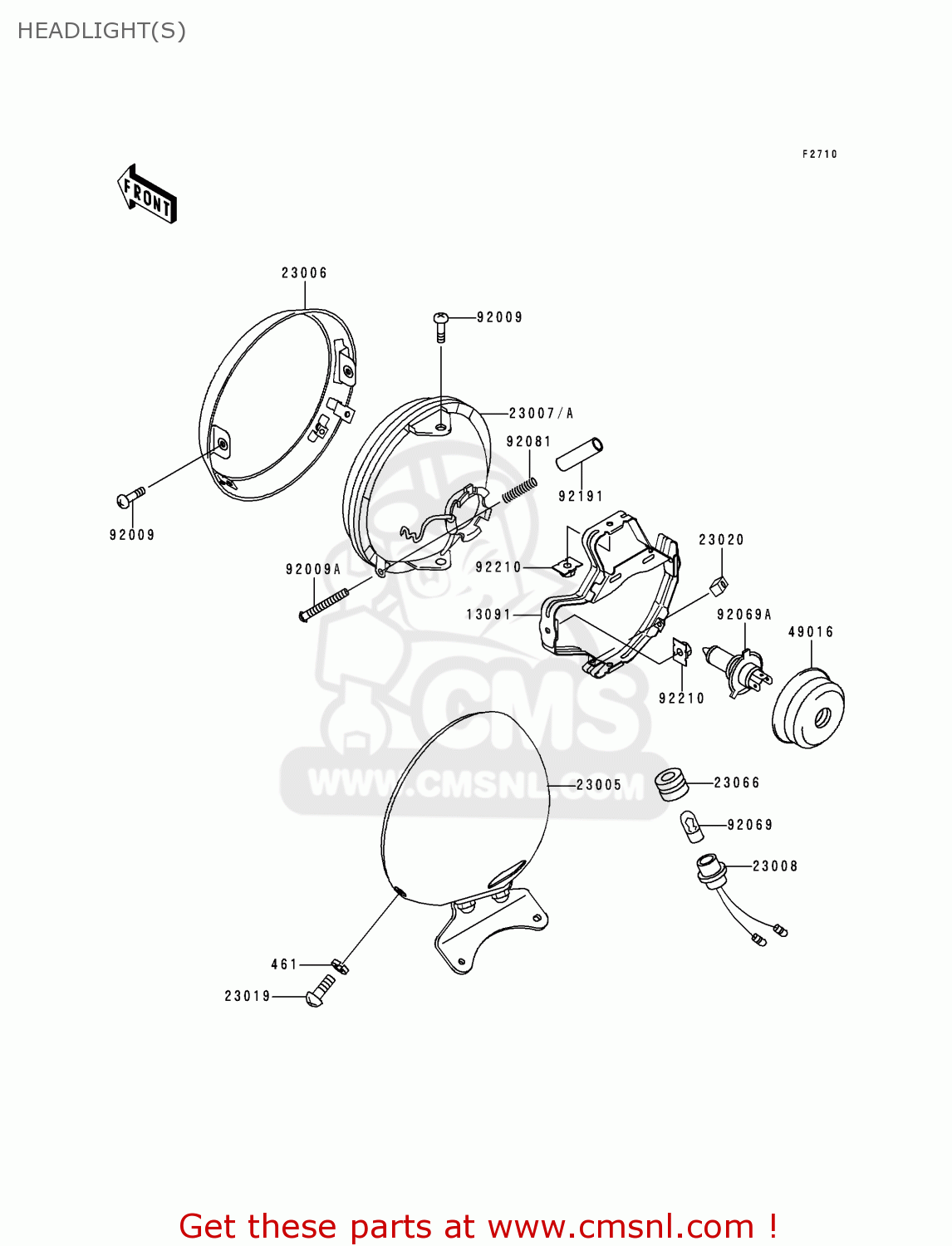

Headlight(s) diagram VN800B2A VN800 CLASSIC 1997 NETHERLANDS
HEADLIGHT(S) VN800B2A VN800 CLASSIC 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
13091
130911948
ref: 13091
HOLDER,HEAD LAMP
€ 33.50
23005
230051152
ref: 23005
BODY-COMP-HEAD LAMP
€ 233.50
23006
230061071
ref: 23006
RIM-LAMP
€ 68.00
23007
230071339
ref: 23007
LENS-COMP,HEAD LAMP
€ 159.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
23019
23019022
ref: 23019
SCREW-SPECIAL,5X14
€ 1.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
€ 3.00
23066
23066008
ref: 23066
DAMPER,PARKING LAMP
€ 3.00
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92009
920091296
ref: 92009
SCREW,5X12
€ 2.50
92009A
920091816
ref: 92009A
SCREW
€ 3.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
92191
921911217
ref: 92191
TUBE
€ 1.50
92210
922101060
ref: 92210
NUT
€ 1.50
