FRONT FORK
VN800B2A VN800 CLASSIC 1997 NETHERLANDS

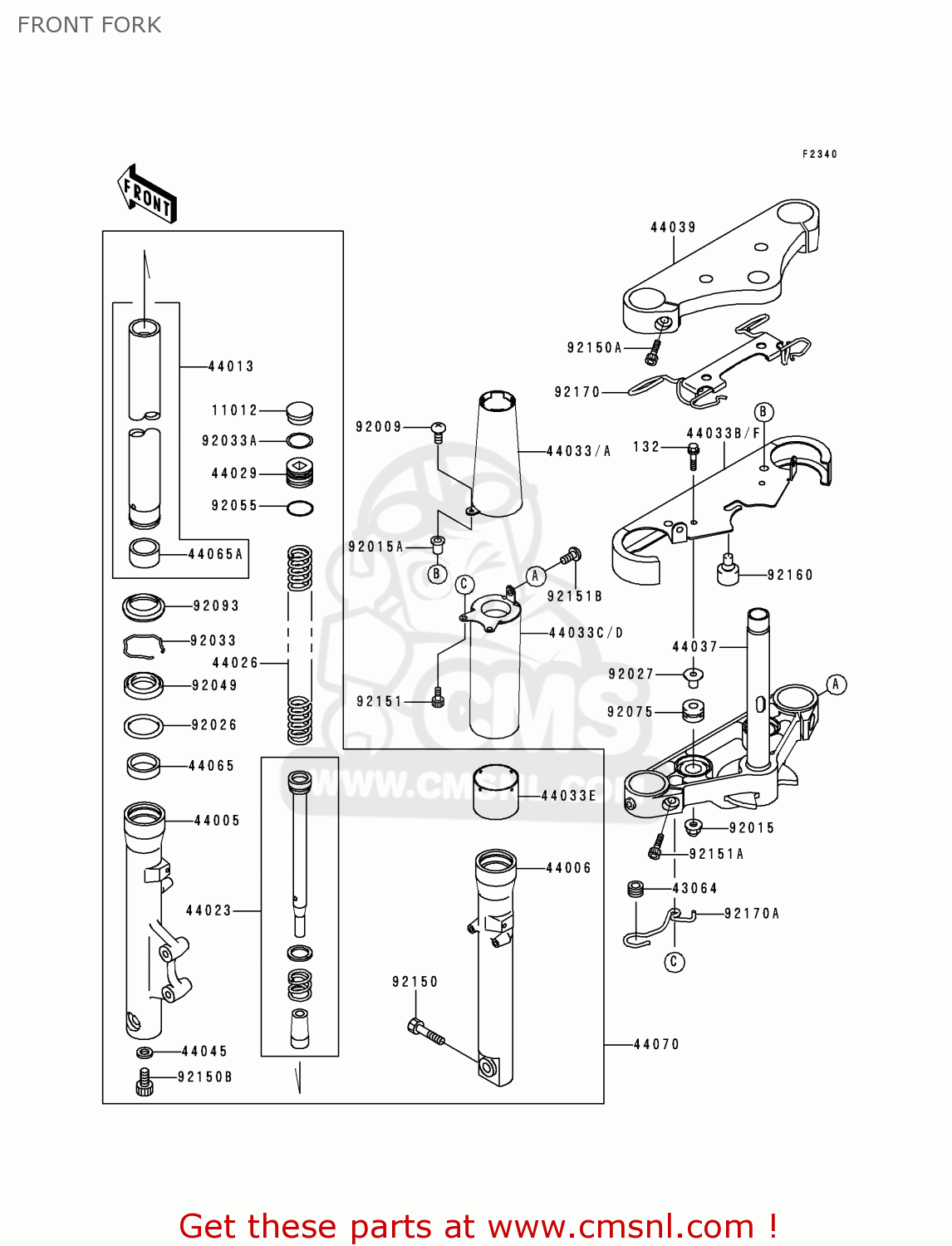

Front fork diagram VN800B2A VN800 CLASSIC 1997 NETHERLANDS
FRONT FORK VN800B2A VN800 CLASSIC 1997 NETHERLANDS
×
prices are in EUR
ref
part #
description
quantity
11012
110121618
ref: 11012
CAP,FORK TOP
€ 10.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
€ 2.50
44005
440051366
ref: 44005
PIPE-LEFT FORK OUTER
€ 385.50
44006
440061365
ref: 44006
PIPE-RIGHT FORK OUTER
€ 309.00
44013
440131426
ref: 44013
PIPE-FORK INNER
€ 185.00
44023
440231103
ref: 44023
CYLINDER-COMP-FORK
€ 108.00
44026
440261615
ref: 44026
SPRING-FRONT FORK
€ 58.50
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331215
ref: 44033
COVER-FORK,UPP,LH
€ 69.50
44033A
440331216
ref: 44033A
COVER-FORK,UPP,RH
€ 56.00
44033B
440331217
ref: 44033B
COVER-FORK,LWR
€ 153.50
44033C
440331221
ref: 44033C
COVER-FORK,UNDER,LH
€ 140.50
44033D
440331222
ref: 44033D
COVER-FORK,UNDER,RH
€ 140.50
44033E
440331223
ref: 44033E
COVER-FORK
€ 12.00
44037
440371344
ref: 44037
HOLDER-FORK UNDER
€ 292.50
44039
440391260
ref: 44039
HOLDER-FORK UPPER
€ 262.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44065
440651079
ref: 44065
BUSHING-FRONT FORK
€ 16.00
44065A
440651087
ref: 44065A
BUSHING-FRONT FORK,IN
€ 19.00
44070
440701511
ref: 44070
DAMPER-ASSY,FORK
€ 1,313.00
92009
920091654
ref: 92009
SCREW
€ 0.50
92015
920151385
ref: 92015
NUT,CAP,6MM
€ 2.50
92015A
920151757A
ref: 92015A
NUT,5MM
€ 5.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
€ 6.50
92027
920271847
ref: 92027
COLLAR,6=16.1
€ 4.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
€ 4.50
92075
920751035
ref: 92075
DAMPER RUBBER
€ 3.50
92093
920931268
ref: 92093
SEAL,FORK
€ 16.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
€ 6.00
92150B
921501432
ref: 92150B
BOLT
€ 6.50
92151
921511068
ref: 92151
BOLT,SOCKET,6X14
€ 2.50
92151A
921511083
ref: 92151A
BOLT
€ 6.00
92151B
921511097
ref: 92151B
BOLT
€ 2.00
92160
921601555
ref: 92160
DAMPER
€ 4.50
92170
921701546
ref: 92170
CLAMP
€ 52.50
92170A
921701658
ref: 92170A
CLAMP,CABLE
€ 10.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
