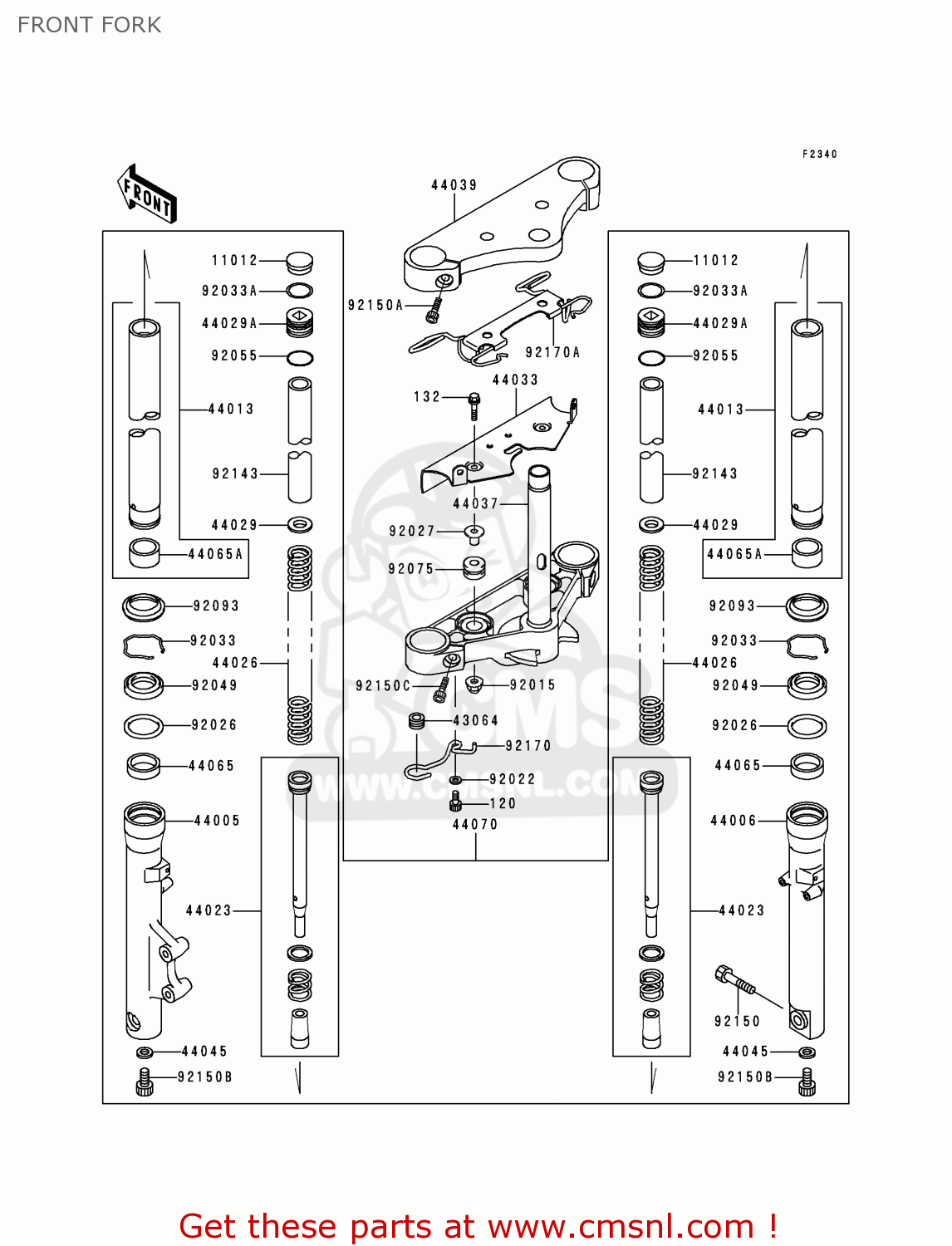

FRONT FORK

ref

part #

description

quantity

120

120P0614
ref: 120

BOLT,6X14

€ 3.00

132

132E0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11012

110121618
ref: 11012

CAP,FORK TOP

€ 10.00

43064

43064006
ref: 43064

GROMMET,BRAKE HOSE

€ 2.50

44005

440051357
ref: 44005

PIPE-LEFT FORK OUTER

€ 391.00

44006

440061356
ref: 44006

PIPE-RIGHT FORK OUTER

€ 372.50

44013

440131412
ref: 44013

PIPE-FORK INNER

€ 166.50

44023

440231097
ref: 44023

CYLINDER-COMP-FORK

€ 111.00

44026

440261589
ref: 44026

SPRING-FRONT FORK

€ 62.00

44029

440291131
ref: 44029

SEAT-FORK SPRING

€ 7.00

44029A

440291144
ref: 44029A

SEAT-FORK SPRING

€ 15.00

44033

440331211
ref: 44033

COVER-FORK

€ 33.00

44037

440371334
ref: 44037

HOLDER-FORK UNDER

€ 292.50

44039

440391260
ref: 44039

HOLDER-FORK UPPER

€ 262.00

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44065

440651079
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651087
ref: 44065A

BUSHING-FRONT FORK,IN

€ 19.00

44070

440701429
ref: 44070

DAMPER-ASSY,FORK

€ 1,447.50

92015

920151385
ref: 92015

NUT,CAP,6MM

€ 2.50

92022

920221523
ref: 92022

WASHER,6.5X13X2.0

€ 1.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92027

920271847
ref: 92027

COLLAR,6=16.1

€ 4.00

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92033A

920331223
ref: 92033A

RING-SNAP,SPRING SEAT

€ 4.00

92049

920491363
ref: 92049

SEAL-OIL,FORK

€ 17.50

92055

920551481
ref: 92055

RING-O

€ 3.50

92075

920751035
ref: 92075

DAMPER RUBBER

€ 3.50

92093

920931268
ref: 92093

SEAL,FORK

€ 16.50

92143

921431792
ref: 92143

COLLAR,FORK,L=100

€ 5.50

92150

921501029
ref: 92150

BOLT,SOCKET,10X40

€ 7.00

92150A

921501031
ref: 92150A

BOLT,SOCKET,8MM

€ 6.00

92150B

921501432
ref: 92150B

BOLT

€ 6.50

92150C

921501960
ref: 92150C

BOLT

€ 7.00

92170

921701545
ref: 92170

CLAMP,HOSE

€ 10.00

92170A

921701546
ref: 92170A

CLAMP

€ 52.50
