FRAME

VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

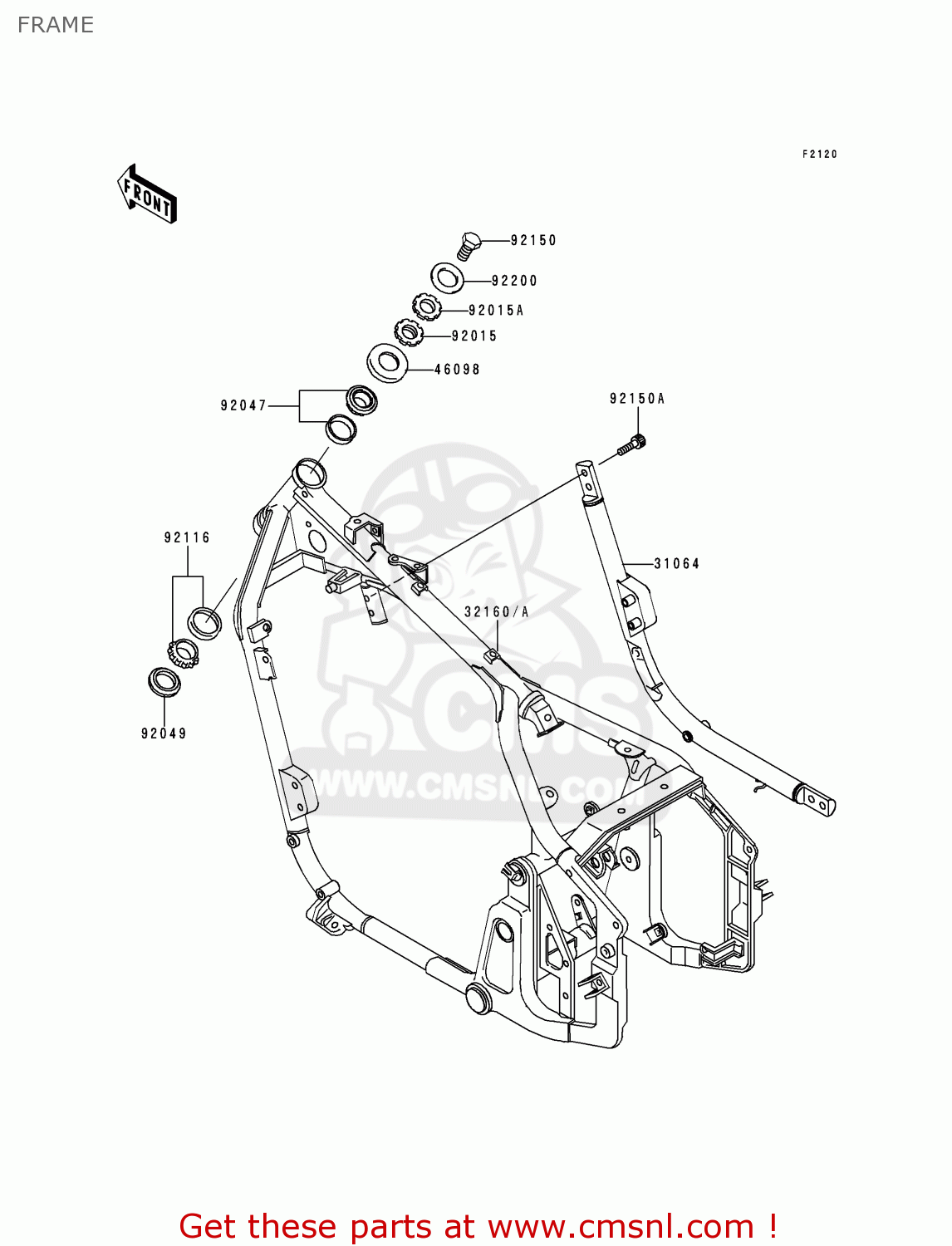

Frame diagram VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

31064

310641176
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 267.50

32160

321601400
ref: 32160
CN

FRAME-COMP,FR

€ 1,093.00

32160A

321601502
ref: 32160A
CAUS

FRAME-COMP,FR

€ 1,093.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92150A

921501942
ref: 92150A

BOLT,SOCKET,10X23

€ 4.50

92200

922001140
ref: 92200

WASHER

€ 8.00
