BRAKE PEDAL/TORQUE LINK

VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

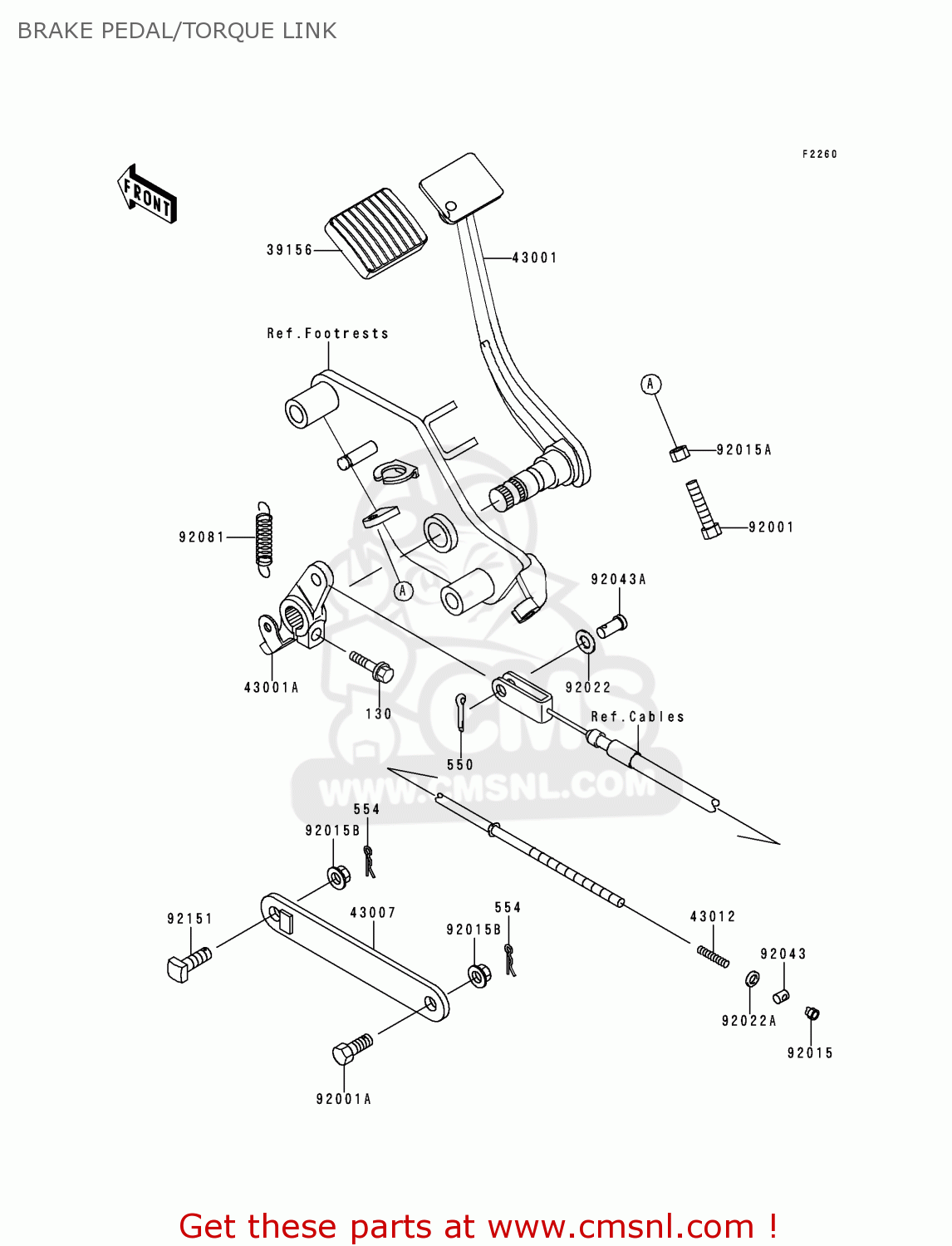

Brake pedal/torque link diagram VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0825
ref: 130

BOLT-FLANGED,8X25,BLA

€ 2.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

39156

391561071
ref: 39156

PAD,BRAKE PEDAL

€ 7.50

43001

430011222
ref: 43001

LEVER-BRAKE,PEDAL

€ 83.50

43001A

430011356
ref: 43001A

LEVER-BRAKE

€ 26.00

43007

430071179
ref: 43007

ROD-TORQUE

€ 11.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92022A

920221588
ref: 92022A

WASHER,6.3X10.2X1.6

€ 2.50

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

920431013
ref: 92043A

PIN

€ 6.50

92081

920811845
ref: 92081

SPRING,BRAKE PEDAL

€ 6.50

92151

921511125
ref: 92151

BOLT

€ 4.00

BRAKE PEDAL/TORQUE LINK

all assemblies
