FRAME FITTINGS

VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

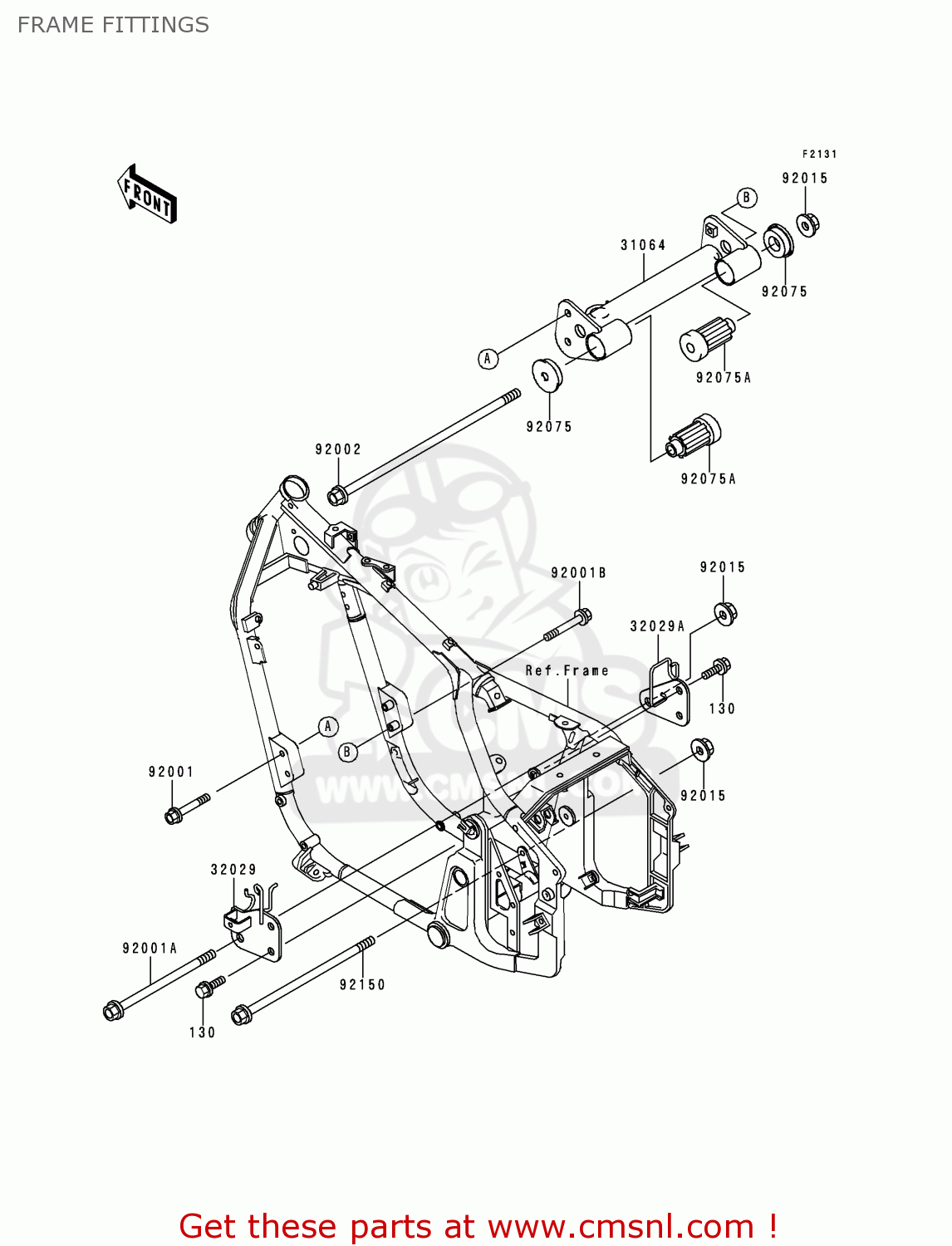

Frame fittings diagram VN800A5 VULCAN 800 1999 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

31064

310641175
ref: 31064

PIPE-COMP,ENGINE MOUN

€ 120.50

32029

320291947
ref: 32029

BRACKET-ENGINE,RR,UPP

€ 14.50

32029A

320291948
ref: 32029A

BRACKET-ENGINE,RR,UPP

€ 16.00

92001

920011614
ref: 92001

BOLT,FLANGED,8X50

€ 3.50

92001A

920011620
ref: 92001A

BOLT

€ 14.00

92001B

920011641
ref: 92001B

BOLT,FLANGED,8X55,BLA

€ 4.50

92002

920021206
ref: 92002

BOLT,10X285

€ 16.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92075

920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 16.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92150

921501899
ref: 92150

BOLT,FLANGED,10X205

€ 11.50

FRAME FITTINGS

all assemblies
