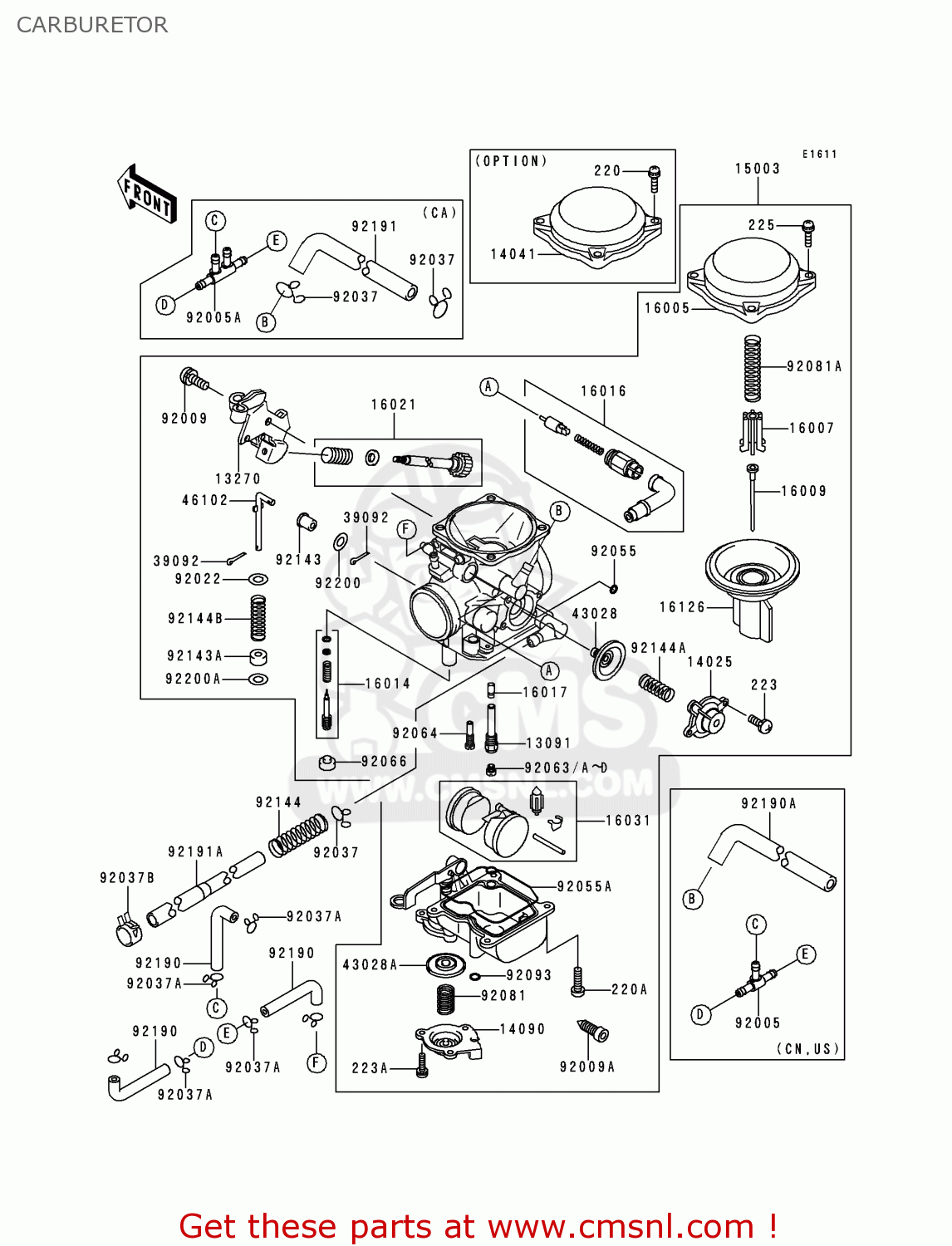

CARBURETOR

ref

part #

description

quantity

13091

130911930
ref: 13091

HOLDER

€ 20.50

13270

132701513
ref: 13270

PLATE

€ 31.00

14025

140251903
ref: 14025

COVER,AIR CUT VALVE

€ 43.00

14041

140411076
ref: 14041

TOP-CHAMBER

€ 68.00

14090

140901635
ref: 14090

COVER,ACCELERATOR

€ 40.50

15003

150031200
ref: 15003

CARBURETOR-ASSY

€ 1,268.50

16005

160051057
ref: 16005

TOP-CHAMBER,MIXING,27

€ 30.50

16007

160071117
ref: 16007

SEAT-SPRING,THROTTLE

€ 16.50

16009

160091861
ref: 16009

NEEDLE-JET

€ 26.00

16014

160141081
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161100
ref: 16016

PLUNGER,STARTER

€ 32.00

16017

160171377
ref: 16017

JET-NEEDLE

€ 41.00

16021

160211207
ref: 16021

SCREW-THROTTLE STOP

€ 83.00

16031

160311089
ref: 16031

FLOAT

€ 47.50

16126

161261170
ref: 16126

VALVE,VACUUM

€ 168.00

39092

390921058
ref: 39092

PIN-HAIR

€ 2.00

43028

430281053
ref: 43028

DIAPHRAGM,5.9MM,AIR C

€ 62.50

43028A

430281077
ref: 43028A

DIAPHRAGM

€ 62.50

46102

461021385
ref: 46102

ROD

€ 13.00

92005

920051017
ref: 92005
CNUS

FITTING,TUBE

€ 6.50

92005A

920051307
ref: 92005A
CA

FITTING

€ 4.00

92009

920091365
ref: 92009

SCREW

€ 4.50

92009A

920091551
ref: 92009A

SCREW,DRAIN

€ 6.50

92022

920221480
ref: 92022

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371104
ref: 92037
CNUS

CLAMP,HOSE

€ 1.00

92037

920371104
ref: 92037
CA

CLAMP,HOSE

€ 1.00

92037A

920371610
ref: 92037A

CLAMP

€ 1.50

92037B

920372082
ref: 92037B

CLAMP

€ 1.00

92055

920551245
ref: 92055

RING-O

€ 3.50

92055A

920551518
ref: 92055A

RING-O,FLOAT CHAMBER

€ 15.00

92063

920631013
ref: 92063

MAIN JET,#140

€ 9.00

92063A

920631014
ref: 92063A

MAIN JET,#135

€ 9.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0414
ref: 220A

SCREW-PAN-CROS

€ 2.00

223

223C0408
ref: 223

SCREW-PAN-WS-CROS

€ 1.00

223A

223D0410
ref: 223A

SCREW-PAN-WS-CROS

€ 2.50

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

92063B

920631015
ref: 92063B

MAIN JET,#138

€ 9.50

92063C

920631075
ref: 92063C

MAIN JET,2ND #130

€ 9.50

92063D

920631076
ref: 92063D

JET-MAIN,#132

€ 9.50

92064

920641174
ref: 92064

JET-PILOT

€ 12.50

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811092
ref: 92081

SPRING,DIAPHRAGM

€ 8.00

92081A

920811826
ref: 92081A

SPRING,VACUUM VALVE

€ 16.50

92093

920931046
ref: 92093

SEAL-"U"RING

€ 4.00

92143

921431790
ref: 92143

COLLAR

€ 1.50

92143A

921431791
ref: 92143A

COLLAR

€ 5.50

92144

921441874
ref: 92144

SPRING

€ 4.50

92144A

921441885
ref: 92144A

SPRING

€ 7.50

92144B

921441886
ref: 92144B

SPRING

€ 6.00

92190

921901610
ref: 92190

TUBE,4X9X80

€ 3.00

92190A

921901619
ref: 92190A
CNUS

TUBE,7X12X540,GREEN

€ 17.50

92191

921911008
ref: 92191
CA

TUBE,7X12X480,YELLOW

€ 12.00

92191A

921911041
ref: 92191A

TUBE

€ 10.50

92200

922001274
ref: 92200

WASHER

€ 1.50

92200A

922001275
ref: 92200A

WASHER

€ 1.50

all assemblies
