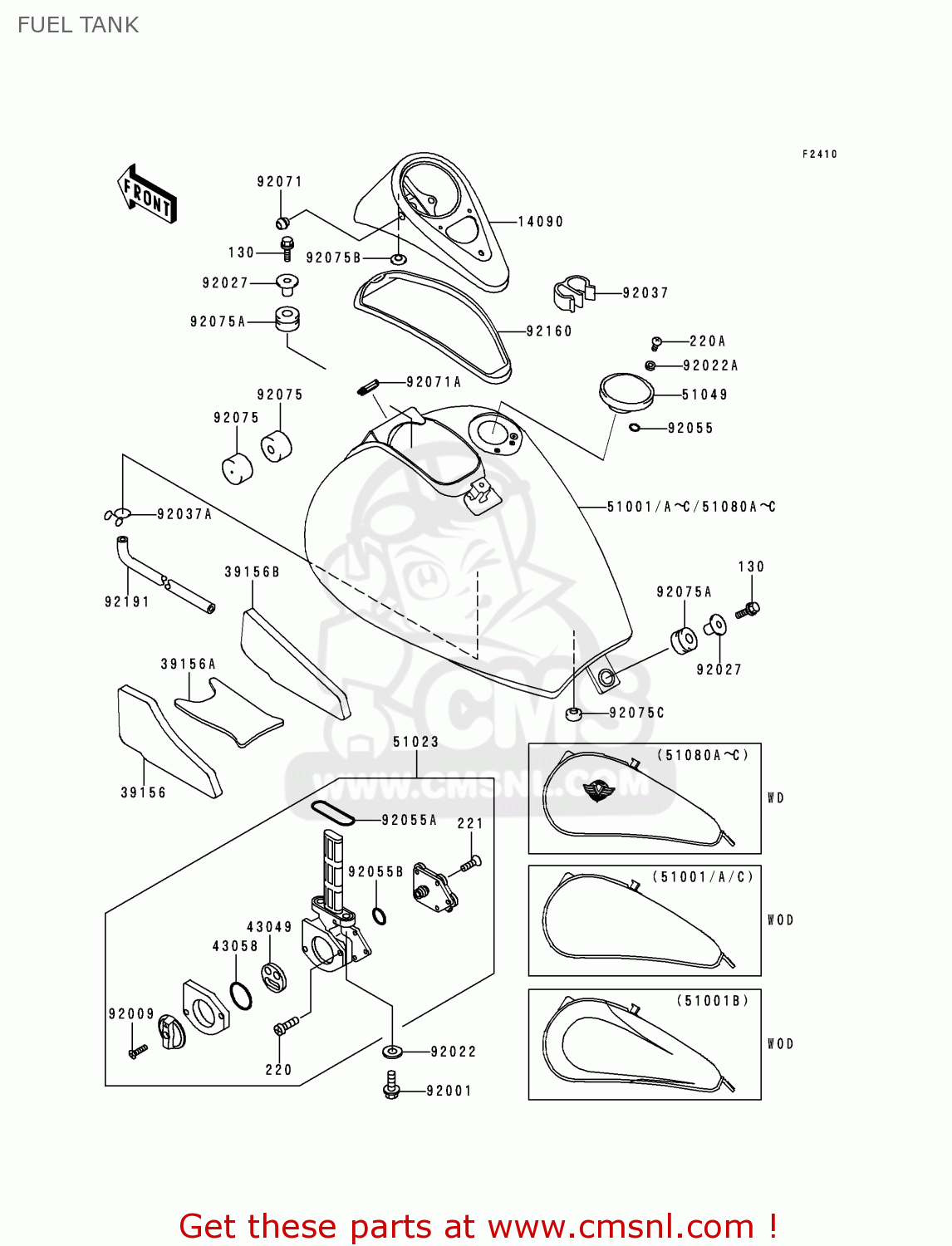

FUEL TANK

ref

part #

description

quantity

14090

140901560
ref: 14090

COVER,METER

€ 104.00

39156

391561512
ref: 39156

PAD,FUEL TANK,LH

€ 18.00

39156A

391561513
ref: 39156A

PAD,FUEL TANK,CNT

€ 15.00

39156B

391561514
ref: 39156B

PAD,FUEL TANK,RH

€ 18.50

43049

430491075
ref: 43049

PACKING,TAP VALVE (NAS)

€ 6.00

43058

430581083
ref: 43058

RING,TAP LEVER

€ 5.50

51001

510011479L1
ref: 51001
AREUFGFRGRNRSD

TANK-COMP-FUEL,C.C.RE

€ 740.00

51001A

510011479RL
ref: 51001A
AREUFGGRNRSTUK

TANK-COMP-FUEL,P.G.BL

€ 705.00

51001C

51001147935
ref: 51001C

TANK-COMP-FUEL,L.P.BL

€ 705.00

51023

510231219
ref: 51023

TAP-ASSY,FUEL

€ 97.50

51049

510491103
ref: 51049

CAP-TANK,FUEL

€ 91.00

130

130H0830
ref: 130

BOLT-FLANGED,8X30

€ 1.00

220

220B0308
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220D0510
ref: 220A

SCREW-PAN-CROS

€ 0.50

221

221B0414
ref: 221

SCREW-CSR-CROS,4X14

€ 2.50

92001

920011524
ref: 92001

BOLT, 6X25

€ 1.50

92009

920091742
ref: 92009

SCREW

€ 1.50

92022

92022183
ref: 92022

WASHER,6.2X11X1.5

€ 2.50

92022A

920221977
ref: 92022A

WASHER,5.1X10X1.0

€ 2.50

92027

920271780
ref: 92027

COLLAR,L=19.3

€ 4.50

92037

920371458
ref: 92037

CLAMP,BRAKE HOSE & SE

€ 4.00

92037A

92037147
ref: 92037A

CLAMP,CHAIN OILER

€ 4.50

92055

920551023
ref: 92055

ORING

€ 2.50

92055A

920551112
ref: 92055A

RING-/,FUEL TAP PACKI

€ 3.00

92055B

920551539
ref: 92055B

RING-O

€ 4.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

920711187
ref: 92071A

GROMMET

€ 3.00

92075

92075125
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

920751736
ref: 92075A

DAMPER

€ 4.00

92075B

92075261
ref: 92075B

DAMPER,BATTERY CASE

€ 3.00

92075C

92075281
ref: 92075C

DAMPER,9X24X14

€ 4.00

92160

921601593
ref: 92160

DAMPER,METER COVER

€ 33.00

92191

921911015
ref: 92191

TUBE

€ 19.50

all assemblies
