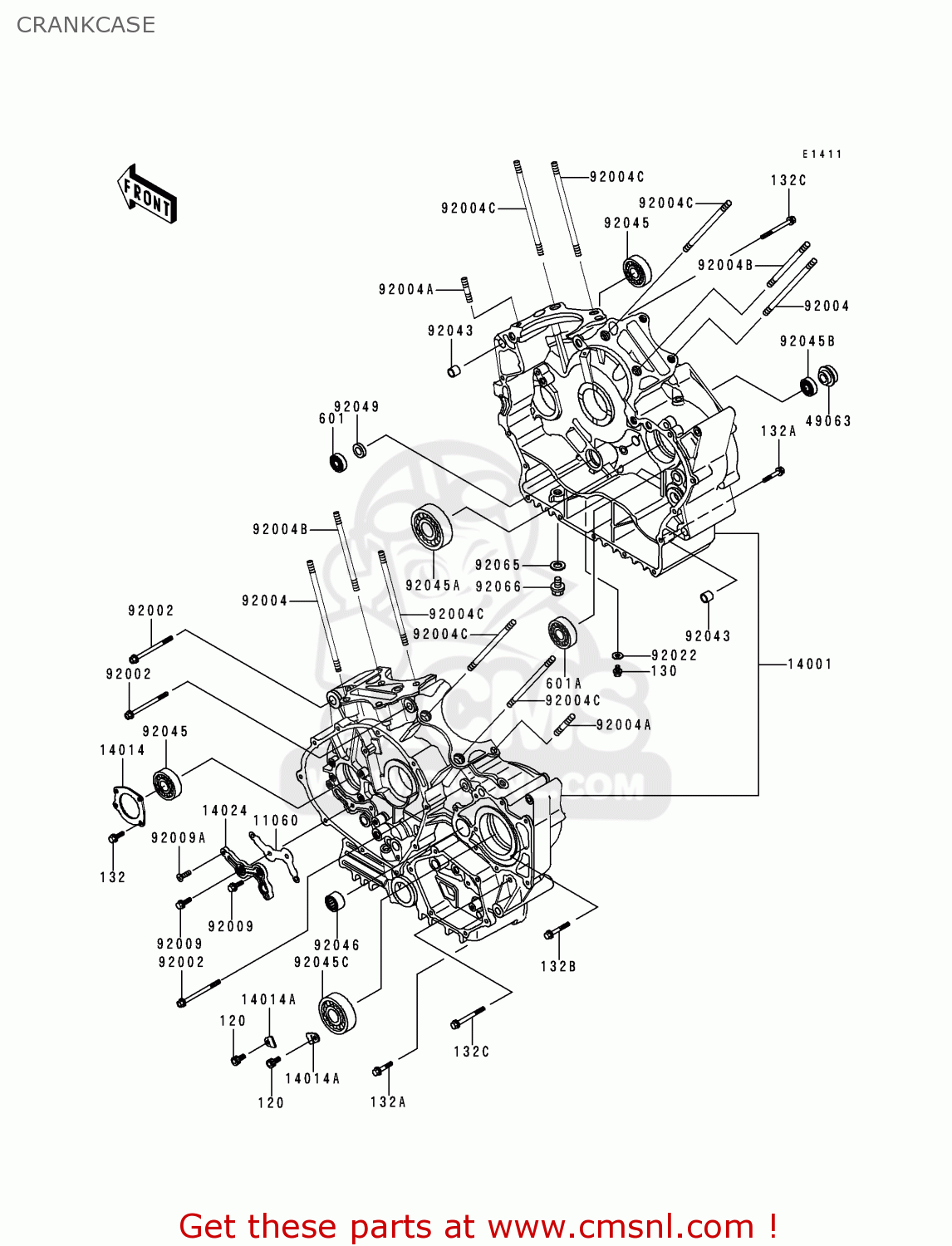

CRANKCASE

ref

part #

description

quantity

120

120S0612
ref: 120

BOLT-SOCKET

€ 1.50

130

130J0610
ref: 130

BOLT-FLANGED

€ 1.50

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

132A

132J0630
ref: 132A

BOLT-FLANGED-SMALL

€ 2.50

132B

132J0640
ref: 132B

BOLT-FLANGED-SMALL

€ 3.00

132C

132J0660
ref: 132C

BOLT-FLANGED-SMALL

€ 3.50

601

601A6001
ref: 601

BEARING-BALL

€ 9.00

601A

601A6204Z
ref: 601A

BEARING-BALL

€ 28.00

11060

110601087
ref: 11060

GASKET,OIL LINE COVER (NAS)

€ 4.50

14001

140015342
ref: 14001

SET-CRANKCASE

€ 1,621.50

14014

140141068
ref: 14014

PLATE-POSITION

€ 10.50

14014A

140141121
ref: 14014A

PLATE-POSITION

€ 2.50

14024

140241074
ref: 14024

COVER,OIL LINE

€ 19.00

49063

490631052
ref: 49063

SEAL-MECHANICAL

€ 32.50

92002

920021542
ref: 92002

BOLT,10X80

€ 6.50

92004

920041035
ref: 92004

STUD,8M/M

€ 6.00

92004A

920041142
ref: 92004A

STUD,8X28.5

€ 6.00

92004B

920041220
ref: 92004B

STUD,10X148

€ 9.00

92004C

920041221
ref: 92004C

STUD,10X160

€ 9.00

92009

920091266
ref: 92009

SCREW

€ 2.50

92009A

920091447
ref: 92009A

SCREW,6X20

€ 3.00

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92045

920451041
ref: 92045

BEARING-BALL,TMB204 J

€ 32.50

92045A

920451137
ref: 92045A

BEARING-BALL,TMB305

€ 43.50

92045B

920451151
ref: 92045B

BEARING-BALL,6001JRXL

€ 26.00

92045C

920451167
ref: 92045C

BEARING-BALL,TMB305X3

€ 43.50

92046

920461239
ref: 92046

BEARING-NEEDLE

€ 20.00

92049

920491228
ref: 92049

SEAL-OIL,AC037AE0

€ 7.00

92065

92065097
ref: 92065

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

92066

920661174
ref: 92066

PLUG,OIL DRAIN,12X15

€ 4.00
