FRONT HUB

VN800A3 1997 EUROPE UK FR AR FG GR NR SD ST

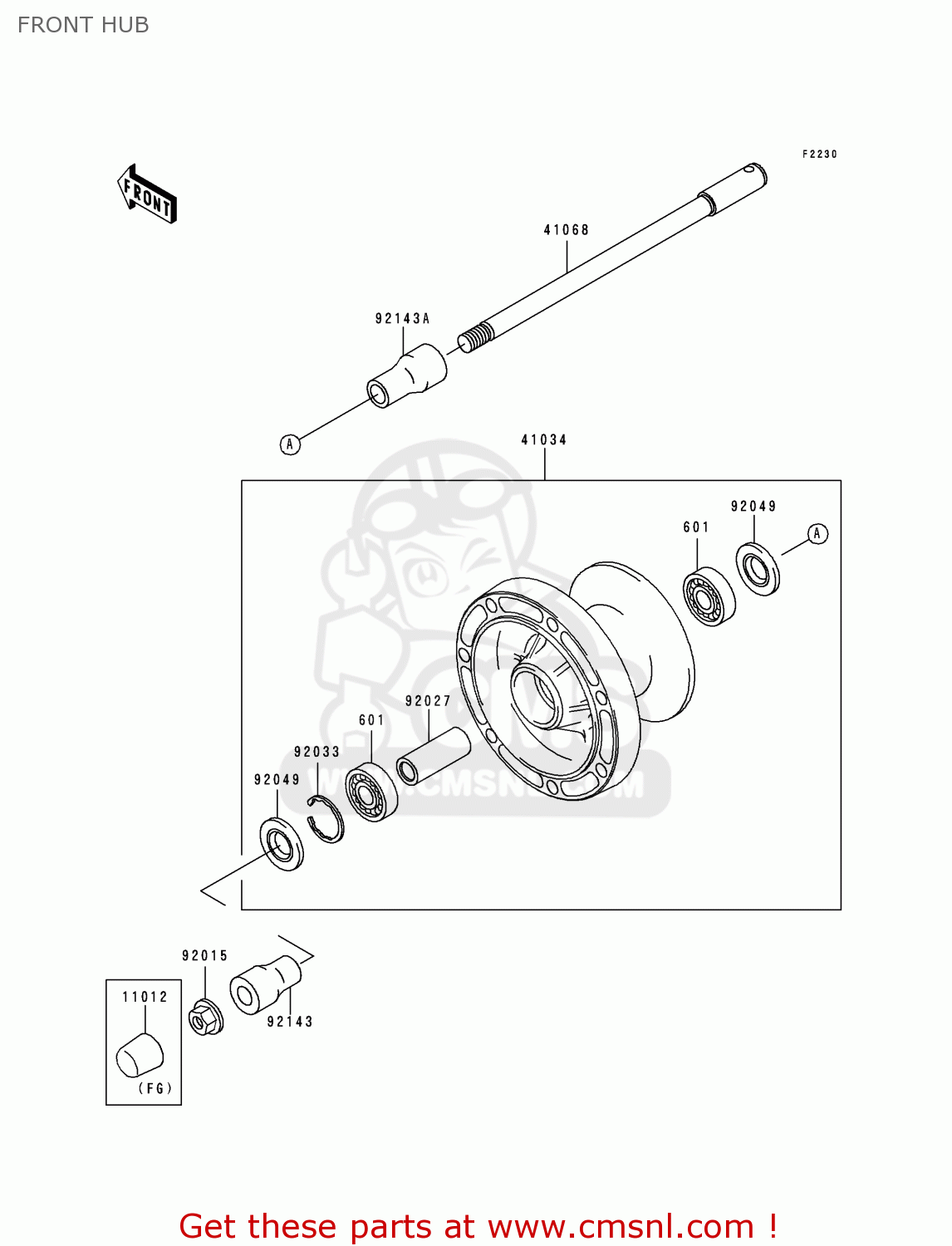

Front hub diagram VN800A3 1997 EUROPE UK FR AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

601

601B6302UG
ref: 601

BEARING BALL

€ 29.00

11012

110121591
ref: 11012
FG

CAP,AXLE NUT

€ 3.00

41034

410341247
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 493.50

41068

410681243
ref: 41068

AXLE,FR

€ 63.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92027

920271866
ref: 92027

COLLAR,L=70

€ 14.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491058
ref: 92049

OIL SEAL,BJN22425

€ 7.50

92143

921431737
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 23.00

92143A

921431738
ref: 92143A

COLLAR,FR AXLE,RH,L=5

€ 20.50

FRONT HUB

all assemblies
