FRAME

VN800A3 1997 EUROPE UK FR AR FG GR NR SD ST

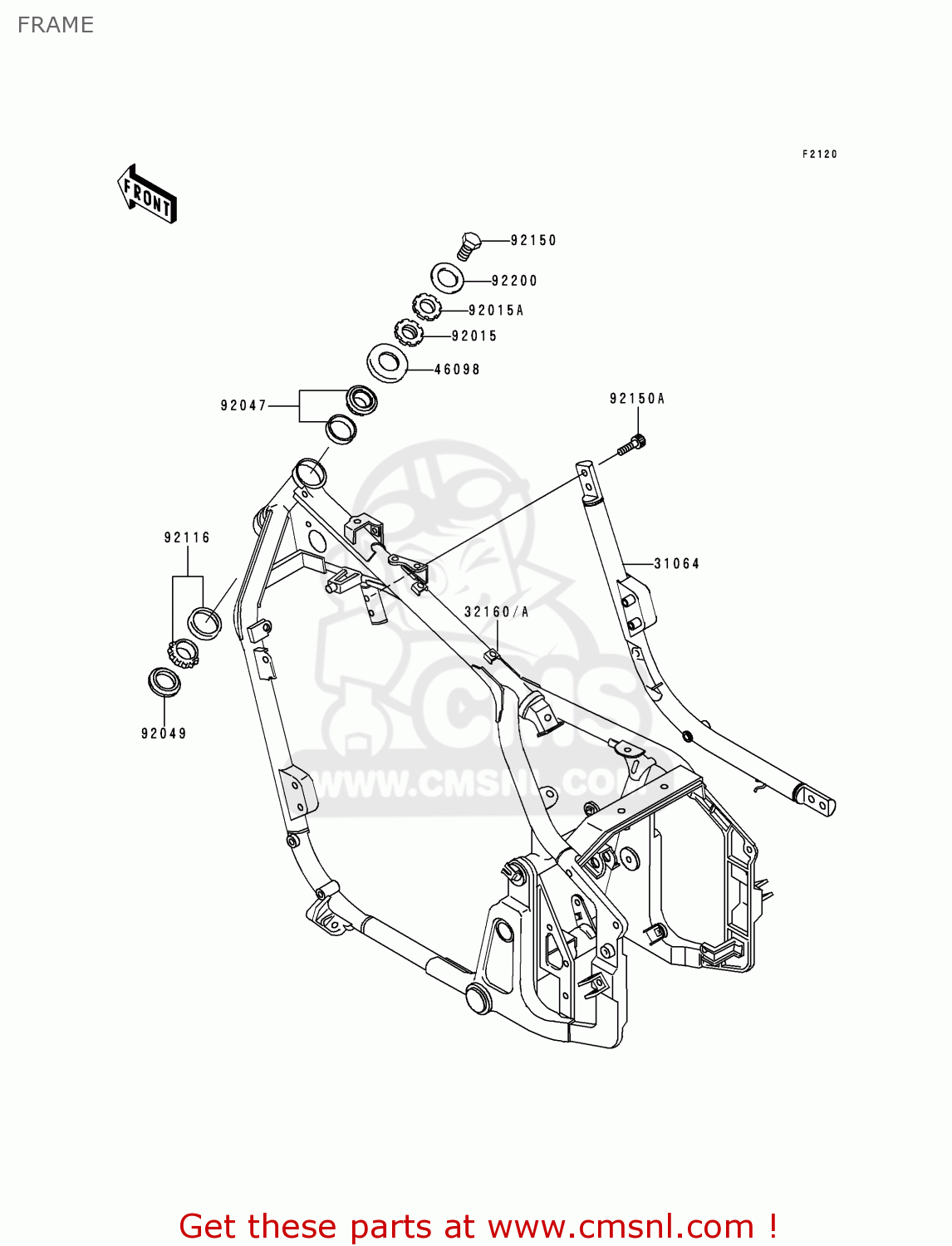

Frame diagram VN800A3 1997 EUROPE UK FR AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

31064

310641176
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 267.50

32160

321601400
ref: 32160
AREUFRGRSTUK

FRAME-COMP,FR

€ 1,093.00

32160A

321601406
ref: 32160A
FGNRSD

FRAME-COMP,FR

€ 1,087.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92150A

921501942
ref: 92150A

BOLT,SOCKET,10X23

€ 4.50

92200

922001140
ref: 92200

WASHER

€ 8.00
