RADIATOR
VN750A20 VULCAN 750 2004 USA CALIFORNIA

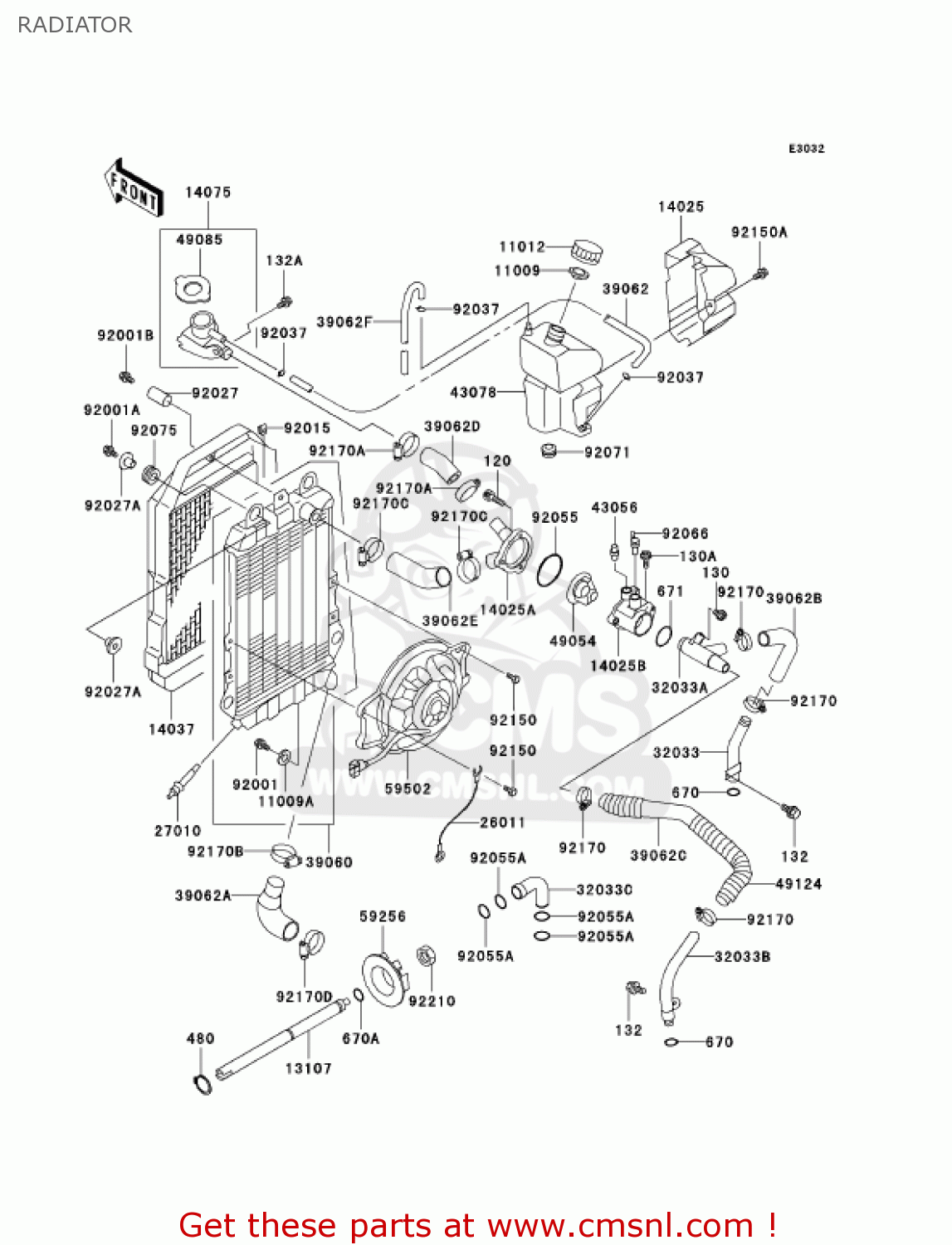

Radiator diagram VN750A20 VULCAN 750 2004 USA CALIFORNIA
RADIATOR VN750A20 VULCAN 750 2004 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
13107
131071155
ref: 13107
SHAFT,IMPELLER
€ 35.00
14025
140251962
ref: 14025
COVER,RESORVOIR
€ 38.50
14025A
140251972
ref: 14025A
COVER,THERMOSTAT,UPP
€ 31.50
14025B
140251973
ref: 14025B
COVER,THERMOSTAT,LWR
€ 33.50
14037
140371066
ref: 14037
SCREEN,RADIATOR
€ 55.50
14075
140751057
ref: 14075
CAP-ASSY,RADIATOR
€ 142.00
26011
260111326
ref: 26011
WIRE-LEAD
€ 13.50
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
32033
320331484
ref: 32033
PIPE
€ 31.50
32033A
320331486
ref: 32033A
PIPE
€ 47.50
32033B
320331738
ref: 32033B
PIPE
€ 38.00
32033C
320331966
ref: 32033C
PIPE
€ 20.00
39060
390601065
ref: 39060
RADIATOR
€ 725.50
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621100
ref: 39062A
HOSE-COOLING
€ 21.50
39062B
390621101
ref: 39062B
HOSE-COOLING
€ 20.00
39062C
390621102
ref: 39062C
HOSE-COOLING
€ 28.00
39062D
390621103
ref: 39062D
HOSE-COOLING
€ 14.00
39062E
390621104
ref: 39062E
HOSE-COOLING
€ 21.50
39062F
390621122
ref: 39062F
HOSE-COOLING
€ 18.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781057
ref: 43078
RESERVOIR
€ 36.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49124
491241051
ref: 49124
SPRING-TUBE GUARD
€ 12.00
59256
592561058
ref: 59256
IMPELLER
€ 32.00
59502
595021059
ref: 59502
FAN-ASSY
€ 621.50
92001
920011277
ref: 92001
PLUG,RADIATOR DRAIN
€ 13.50
92001A
920011352
ref: 92001A
BOLT,FLANGED,6X22
€ 2.50
92001B
920011852
ref: 92001B
BOLT,6X25
€ 2.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92027A
920271906
ref: 92027A
COLLAR
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551308
ref: 92055A
RING-O,19MM
€ 3.50
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
120
120P0620
ref: 120
BOLT-HEX HEAD,6X20
€ 0.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
130A
130C0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0614
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670D1509
ref: 670A
O RING,9MM
€ 3.00
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
€ 3.50
92075
920751665
ref: 92075
DAMPER
€ 5.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92150A
921501764
ref: 92150A
BOLT,6X16
€ 2.50
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
€ 16.50
92170A
921701033
ref: 92170A
CLAMP,COOLING HOSE
€ 10.50
92170B
921701034
ref: 92170B
CLAMP,COOLING HOSE
€ 14.00
92170C
921701035
ref: 92170C
CLAMP,COOLING HOSE
€ 12.00
92170D
921701036
ref: 92170D
CLAMP,COOLING HOSE
€ 16.50
92210
922100006
ref: 92210
NUT,LOCK,6MM
€ 2.00
