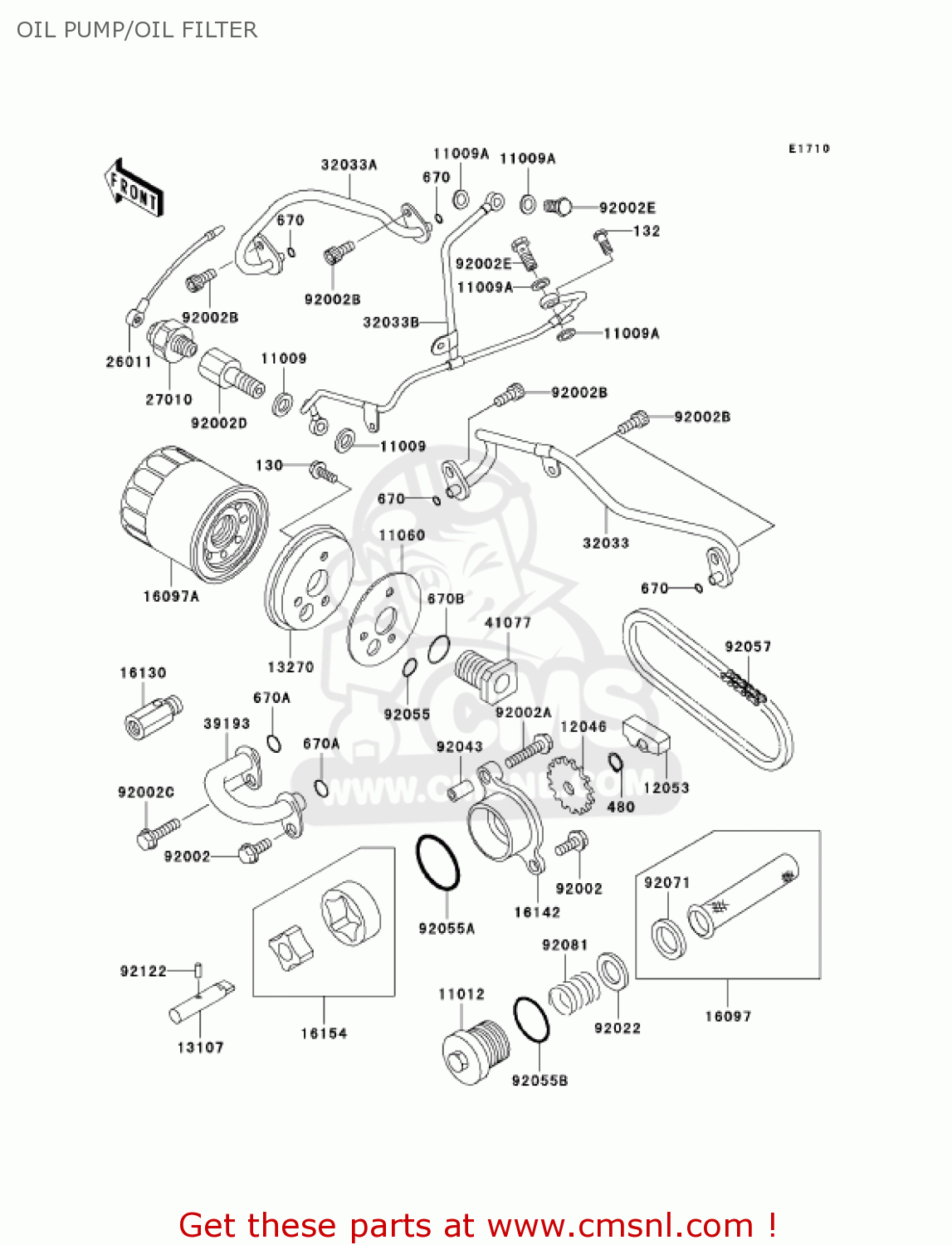

OIL PUMP/OIL FILTER

ref

part #

description

quantity

11009

110091105
ref: 11009

GASKET,10X14.5X1.5 (NAS)

€ 4.00

11009A

110091344
ref: 11009A

GASKET,OIL PIPE,8.2X1 (NAS)

€ 1.50

11012

110121483
ref: 11012

CAP,OIL FILTER

€ 30.00

11060

110601092
ref: 11060

GASKET,OIL FILTER (NAS)

€ 5.50

12046

120461079
ref: 12046

SPROCKET,OIL PUMP,19T

€ 16.00

12053

120531187
ref: 12053

GUIDE-CHAIN

€ 15.00

13107

131071131
ref: 13107

SHAFT,OIL PUMP

€ 18.50

13270

132701170
ref: 13270

PLATE,OIL FILTER

€ 19.50

16097

160971058
ref: 16097

FILTER-ASSY-OIL

€ 9.50

16097A

160971072
ref: 16097A

FILTER-ASSY-OIL

€ 10.50

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

16142

161421061
ref: 16142

COVER-PUMP,OIL

€ 43.50

16154

161541056
ref: 16154

ROTOR-PUMP

€ 49.50

26011

260111295
ref: 26011

WIRE-LEAD

€ 4.00

27010

270101313
ref: 27010

SWITCH,OIL PRESSURE

€ 28.00

32033

320331741
ref: 32033

PIPE,OIL,FILTER-TRANS

€ 34.00

32033A

320331742
ref: 32033A

PIPE,OIL,FILTER-CRANK

€ 28.50

32033B

320331863
ref: 32033B

PIPE,FILTER-HEAD

€ 138.00

39193

391931021
ref: 39193

PIPE-OIL,PUMP-FILTER

€ 31.00

41077

410771052
ref: 41077

ADAPTER,OIL FILTER

€ 23.50

92002

920021439
ref: 92002

BOLT,6X16

€ 3.00

92002A

920021534
ref: 92002A

BOLT,6X30

€ 4.00

92002B

920021592
ref: 92002B

BOLT,6X12

€ 2.50

92002C

920021612
ref: 92002C

BOLT

€ 3.00

92002D

920021617
ref: 92002D

BOLT,OIL SWITCH

€ 14.00

92002E

920021618
ref: 92002E

BOLT,BANJO,8X20

€ 7.00

92022

92022169
ref: 92022

WASHER-PLAIN

€ 3.00

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92055

920551011
ref: 92055

O RING,METER GEAR

€ 4.50

92055A

920551279
ref: 92055A

RING-O,45MM

€ 4.50

92055B

920551358
ref: 92055B

RING-O

€ 4.50

92057

920571183
ref: 92057

CHAIN,PUMP,BS25HX50L

€ 11.00

92071

92071100
ref: 92071

GROMMET OIL STRAINER

€ 3.50

92081

920811862
ref: 92081

SPRING,OIL FILTER

€ 9.00

92122

921221126
ref: 92122

ROLLER,3X15.8

€ 2.50

130

130P0514
ref: 130

BOLT-FLANGED

€ 2.50

132

132E0612
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

480

480J1100
ref: 480

CIRCLIP-TYPE-C,11MM

€ 0.50

670

670D1506
ref: 670

O RING,6MM

€ 1.00

670A

670D2012
ref: 670A

O RING,12MM

€ 1.50

670B

670D2020
ref: 670B

O RING,20MM

€ 4.00

all assemblies
