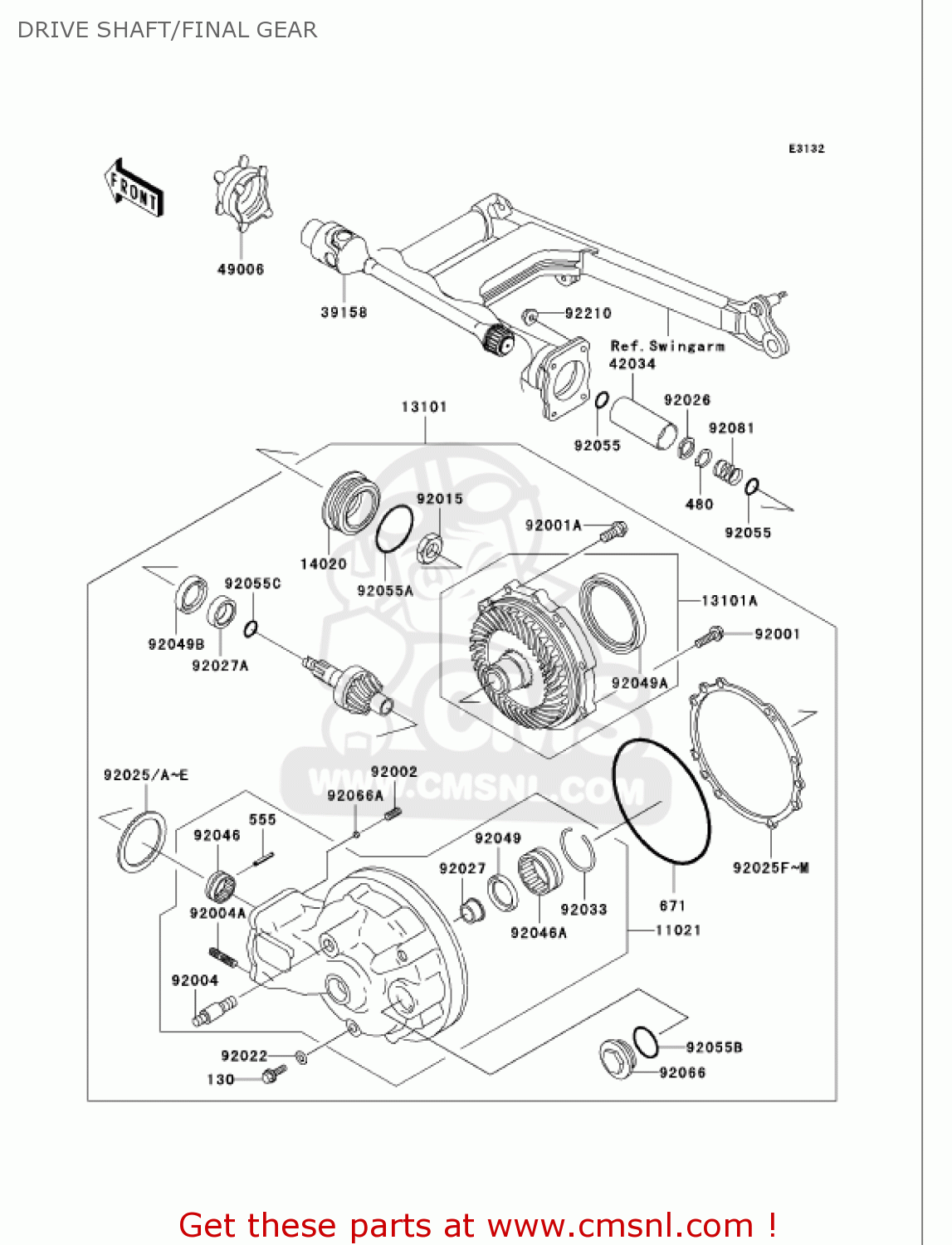

DRIVE SHAFT/FINAL GEAR

ref

part #

description

quantity

11021

1102110667J
ref: 11021

CASE-ASSY,FINAL GEAR,

€ 1,012.00

13101

1310111247J
ref: 13101

GEAR-ASSY,FINAL,M.SIL

€ 2,364.00

13101A

131015056
ref: 13101A

GEAR-ASSY,FINAL BEVEL

€ 1,508.50

14020

140201055
ref: 14020

RETAINER

€ 59.50

39158

391581052
ref: 39158

SHAFT-ASSY-DRIVE

€ 319.50

42034

420341035
ref: 42034

COUPLING,DRIVE SHAFT,

€ 113.50

49006

490061173
ref: 49006

BOOT,PROPELLER SHAFT

€ 19.00

92001

920011095
ref: 92001

BOLT,8X28

€ 4.50

92001A

920011778
ref: 92001A

BOLT,FLANGED,10X23

€ 3.50

92002

920021836
ref: 92002

BOLT

€ 2.50

92004

920041047
ref: 92004

STUD,RR SHOCKABSORBER

€ 10.00

92004A

920041159
ref: 92004A

STUD

€ 3.00

92015

920151241
ref: 92015

NUT,25MM

€ 11.50

92022

920221086
ref: 92022

WASHER,8.2X16X1

€ 2.50

92025

920251519
ref: 92025

SHIM,50X61X0.10

€ 7.00

92025A

920251520
ref: 92025A

SHIM,50X61X0.15

€ 7.00

92025B

920251521
ref: 92025B

SHIM,50X61X0.20

€ 7.00

92025C

920251522
ref: 92025C

SHIM,50X61X0.30

€ 7.00

92025D

920251523
ref: 92025D

SHIM,50X61X0.40

€ 7.00

92025E

920251524
ref: 92025E

SHIM,50X61X0.50

€ 7.00

92025F

920251525
ref: 92025F

SHIM,T=0.15

€ 13.00

92025G

920251526
ref: 92025G

SHIM,T=0.50

€ 13.00

92025H

920251527
ref: 92025H

SHIM,T=0.60

€ 14.00

92025I

920251528
ref: 92025I

SHIM,T=0.70

€ 14.00

92025J

920251529
ref: 92025J

SHIM,T=0.80

€ 14.00

92025K

920251530
ref: 92025K

SHIM,T=0.90

€ 14.00

92025L

920251531
ref: 92025L

SHIM,T=1.00

€ 14.00

92025M

920251532
ref: 92025M

SHIM,T=1.20

€ 13.00

92026

920261129
ref: 92026

SPACER,DRIVE SHAFT

€ 5.00

92027

920271412
ref: 92027

COLLAR

€ 10.00

92027A

920271972
ref: 92027A

COLLAR,25X35X11

€ 11.00

92033

920331187
ref: 92033

RING-SNAP,50.4MM

€ 3.00

92046

920461131
ref: 92046

BEARING-NEEDLE,NK22/2

€ 41.50

92046A

920461132
ref: 92046A

BEARING-NEEDLE,NK35/2

€ 61.50

92049

920491210
ref: 92049

SEAL-OIL,S3141 5.5

€ 11.50

92049A

920491212
ref: 92049A

SEAL-OIL,S75 9510

€ 18.50

92049B

920491234
ref: 92049B

SEAL-OIL

€ 20.50

92055

920551044
ref: 92055

RING-O,ID=18.64

€ 3.00

92055A

920551280
ref: 92055A

RING-O,61.6MM

€ 7.00

92055B

920551281
ref: 92055B

RING-O,35.8MM

€ 4.50

130

130X0812
ref: 130

BOLT-FLANGED

€ 2.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

555

555A0428
ref: 555

PIN-SPRING

€ 1.00

671

671B25145
ref: 671

O RING

€ 13.50

92055C

920551332
ref: 92055C

RING-O

€ 3.00

92066

9206610067J
ref: 92066

PLUG,OIL FILLER CAP,M

€ 10.00

92066A

920661272
ref: 92066A

PLUG

€ 2.00

92081

920811717
ref: 92081

SPRING,DRIVE SHAFT

€ 4.50

92210

922100004
ref: 92210

NUT,FLANGED,8MM

€ 1.00
