FUEL TANK
VN750A20 VULCAN 750 2004 USA CALIFORNIA

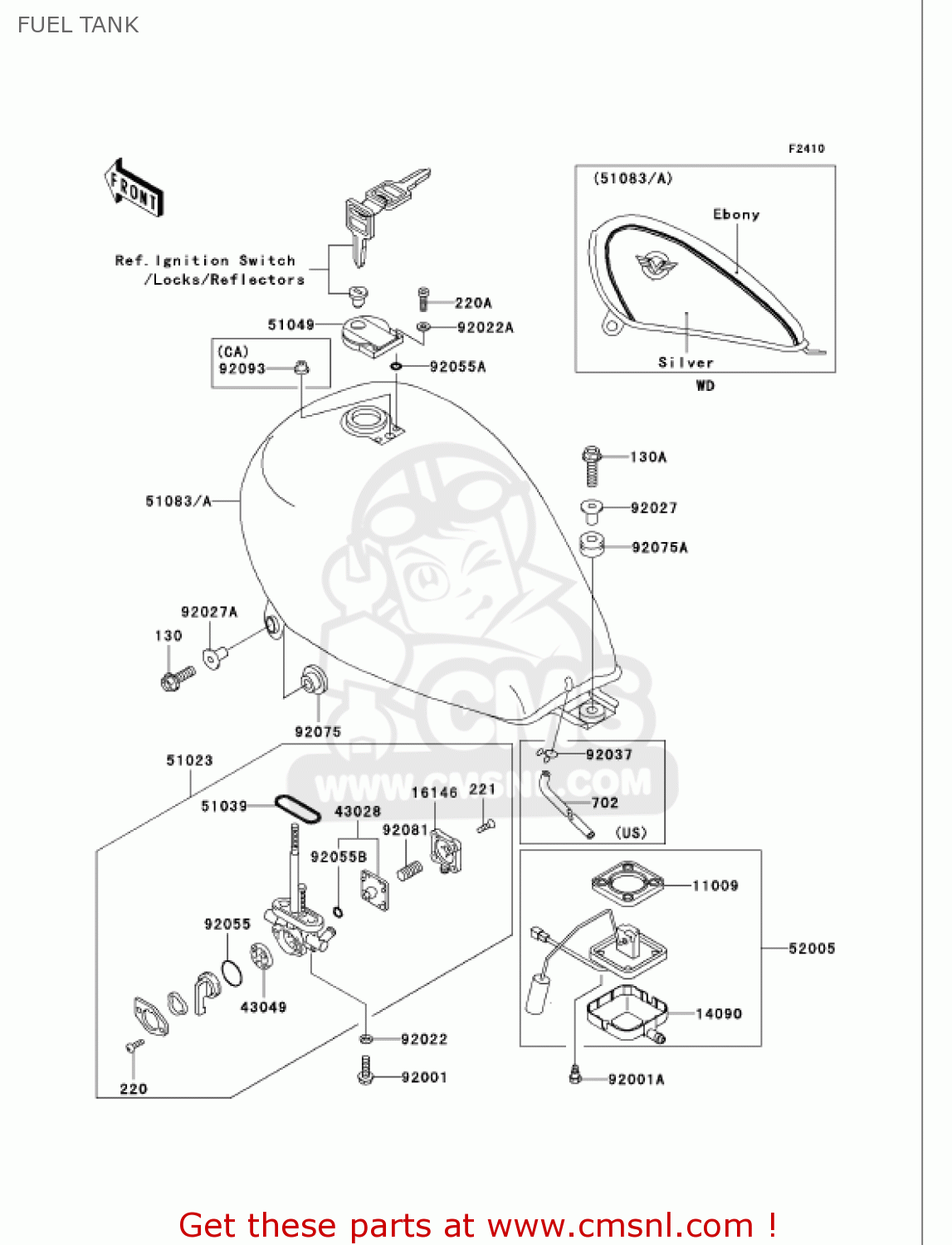

Fuel tank diagram VN750A20 VULCAN 750 2004 USA CALIFORNIA
FUEL TANK VN750A20 VULCAN 750 2004 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091656
ref: 11009
GASKET,FUEL GAUGE (NAS)
€ 14.50
14090
140901624
ref: 14090
COVER,FUEL GAUGE
€ 11.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
43049
430491103
ref: 43049
PACKING (NAS)
€ 4.00
51023
510231392
ref: 51023
TAP-ASSY,FUEL
€ 102.00
51039
51039003
ref: 51039
'O' RING
€ 4.00
51049
510491139
ref: 51049
CAP-TANK,FUEL
€ 98.50
51083
510835095376
ref: 51083
[US]
TANK-COMP-FUEL,EBONY/
€ 525.00
51083A
510835096376
ref: 51083A
[CA]
TANK-COMP-FUEL,EBONY/
€ 525.00
130
130C0825
ref: 130
BOLT-FLANGED,8X25
€ 2.00
130A
130G0830
ref: 130A
BOLT,8X30
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0510
ref: 220A
SCREW-PAN-CROS,5X10
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
702
702A05630
ref: 702
[US]
TUBE-RUBBER,5X8X630
€ 50.00
52005
520051070
ref: 52005
GAUGE,FUEL
€ 102.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
€ 4.50
92027A
920271929
ref: 92027A
COLLAR
€ 4.00
92037
920371461
ref: 92037
[US]
CLAMP,TUBE
€ 1.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92055A
920551552
ref: 92055A
RING-O
€ 2.00
92055B
920551664
ref: 92055B
RING-O
€ 3.00
92075
920751677
ref: 92075
DAMPER,FUEL TANK
€ 4.50
92075A
920751736
ref: 92075A
DAMPER
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
€ 5.00
