IGNITION SWITCH/LOCKS/REFLECTORS

VN750A20 VULCAN 750 2004 USA CALIFORNIA

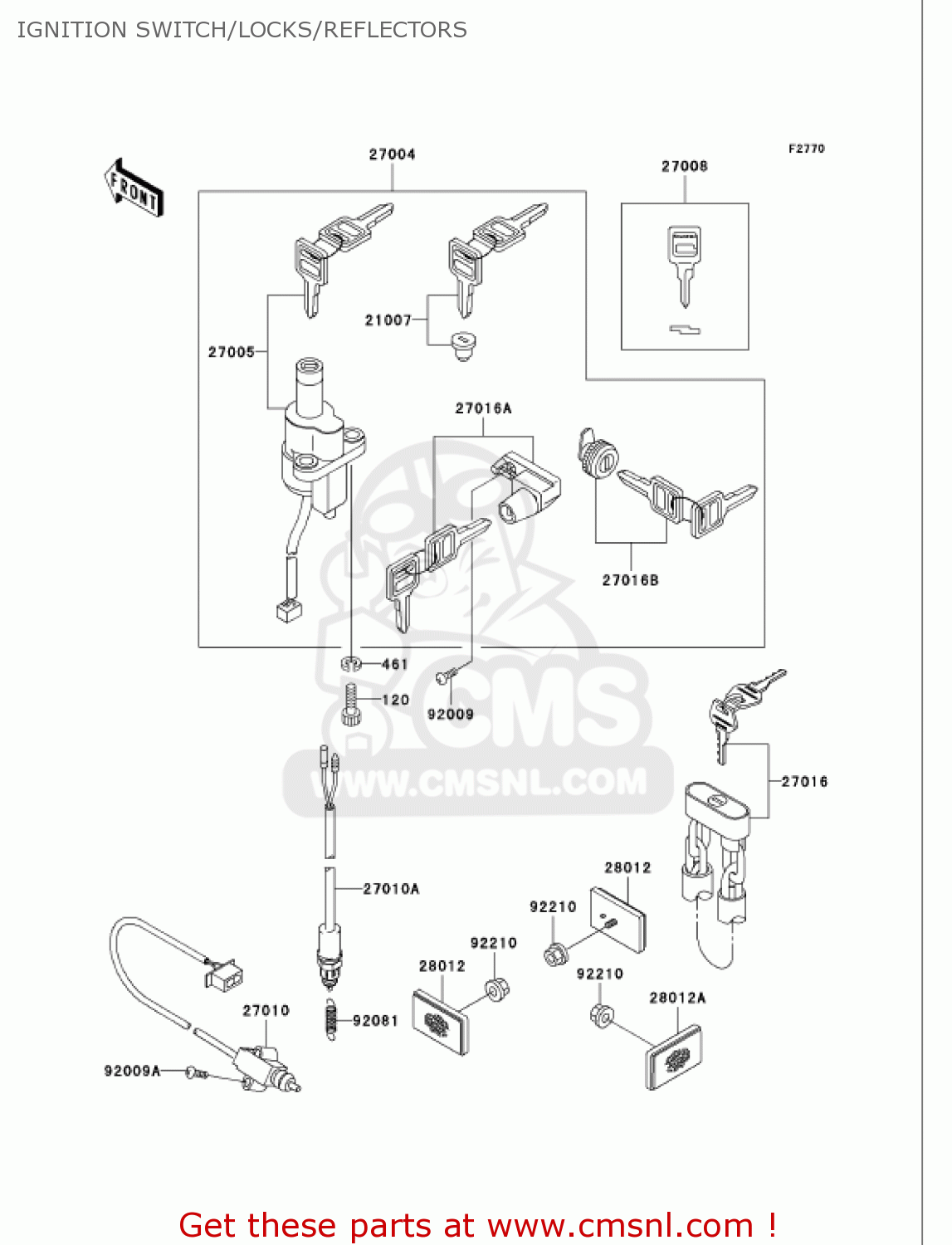

Ignition switch/locks/reflectors diagram VN750A20 VULCAN 750 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

120

120T0822
ref: 120

BOLT-SOCKET

€ 3.00

461

461L0800
ref: 461

WASHER-SPRING

€ 0.50

21007

210075005
ref: 21007

ROTOR,FUEL TANK

€ 71.00

27004

270045270
ref: 27004

SWITCH-ASSY

€ 368.00

27005

270055052
ref: 27005

SWITCH-ASSY-IGNITION

€ 251.00

27008

270081103
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.50

27010

270101189
ref: 27010

SWITCH,SIDE STAND

€ 54.50

27010A

270101475
ref: 27010A

SWITCH,REAR BRAKE

€ 20.50

27016

270161051
ref: 27016

LOCK-ASSY,WHEEL

€ 104.50

27016A

270165060
ref: 27016A

LOCK-ASSY,HELMET

€ 71.50

27016B

270165081
ref: 27016B

LOCK-ASSY,BOX

€ 88.50

28012

280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 16.00

28012A

280121051
ref: 28012A

REFLECTOR-REFLEX,RR

€ 15.50

92009

920091305
ref: 92009

SCREW,5X16

€ 2.50

92009A

920091359
ref: 92009A

SCREW

€ 2.50

92081

920811544
ref: 92081

SPRING,SEAT LOCK

€ 3.50

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
