TRANSMISSION
VN400C4 VULCAN CLASSIC 1994 GREECE

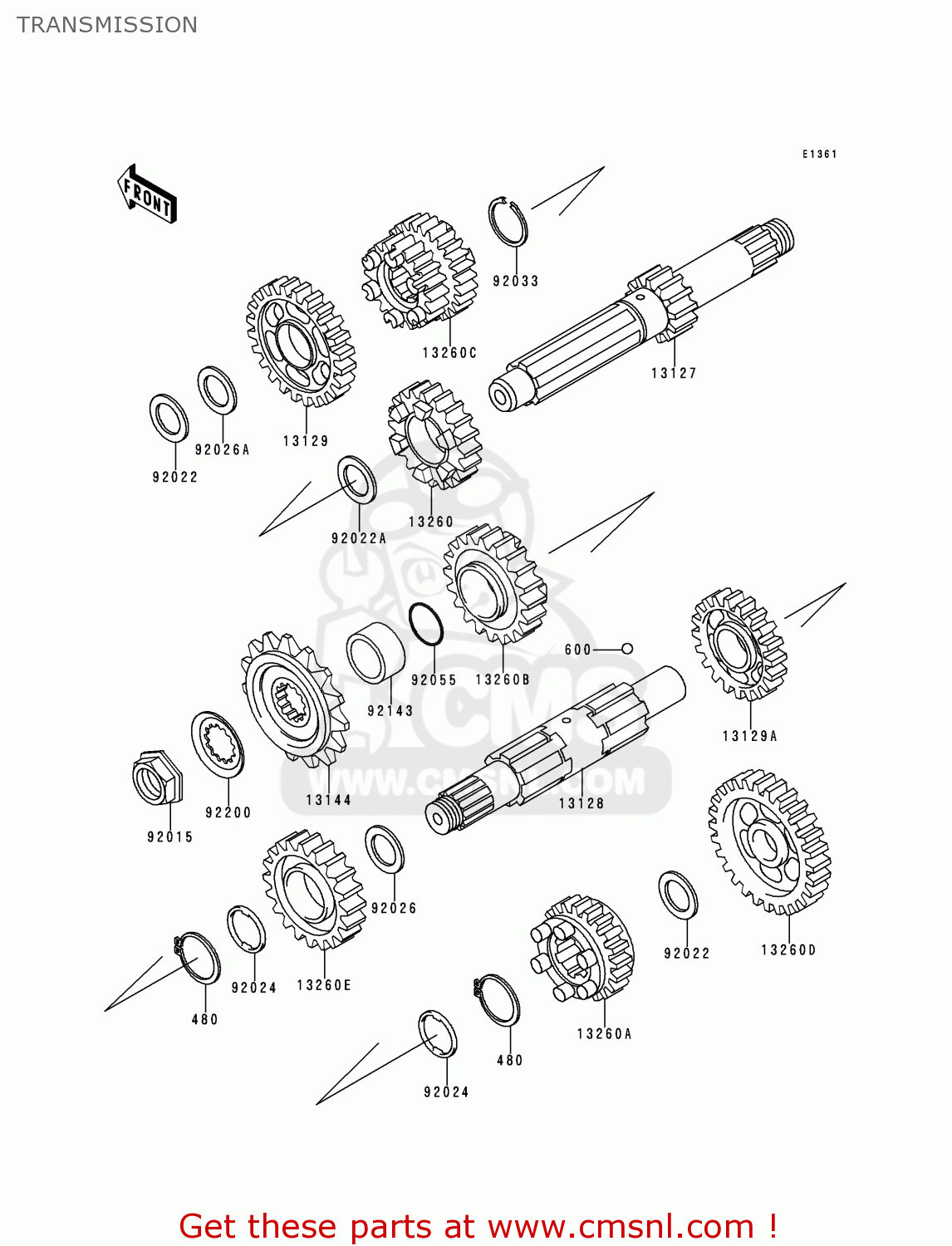

Transmission diagram VN400C4 VULCAN CLASSIC 1994 GREECE
TRANSMISSION VN400C4 VULCAN CLASSIC 1994 GREECE
×
prices are in EUR
ref
part #
description
quantity
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271241
ref: 13127
SHAFT-TRANSMISSION IN
€ 244.00
13128
131281204
ref: 13128
SHAFT-TRANSMISSION OU
€ 203.50
13129
131291632
ref: 13129
GEAR,INPUT 5TH,28T
€ 51.00
13129A
131291635
ref: 13129A
GEAR,OUTPUT 3RD,32T
€ 105.00
13144
131441244
ref: 13144
SPROCKET-OUTPUT,18T
€ 38.00
13260
132601473
ref: 13260
GEAR,INPUT 4TH,29T
€ 113.50
13260A
132601476
ref: 13260A
GEAR,OUTPUT 4TH,29T
€ 108.00
13260B
132601477
ref: 13260B
GEAR,OUTPUT 5TH,24T
€ 121.00
13260C
132601486
ref: 13260C
GEAR,INPUT 2ND&3RD,20
€ 96.50
13260D
132601487
ref: 13260D
GEAR,OUTPUT LOW,38T
€ 121.00
13260E
132601488
ref: 13260E
GEAR,OUTPUT 2ND,33T
€ 108.50
92015
920151963
ref: 92015
NUT,20MM
€ 10.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
92022161
ref: 92022A
WASHER-THRUST,25MM
€ 7.00
92024
92024069
ref: 92024
WASHER,TOOTHED,30.5X3
€ 3.50
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92026A
920261535
ref: 92026A
SPACER,20.5X30X0.5
€ 4.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92055
92055035
ref: 92055
O RING
€ 3.00
92143
921431735
ref: 92143
COLLAR
€ 14.00
92200
922001065
ref: 92200
WASHER
€ 4.50
