LEFT ENGINE COVER(S)
VN400C4 VULCAN CLASSIC 1994 GREECE

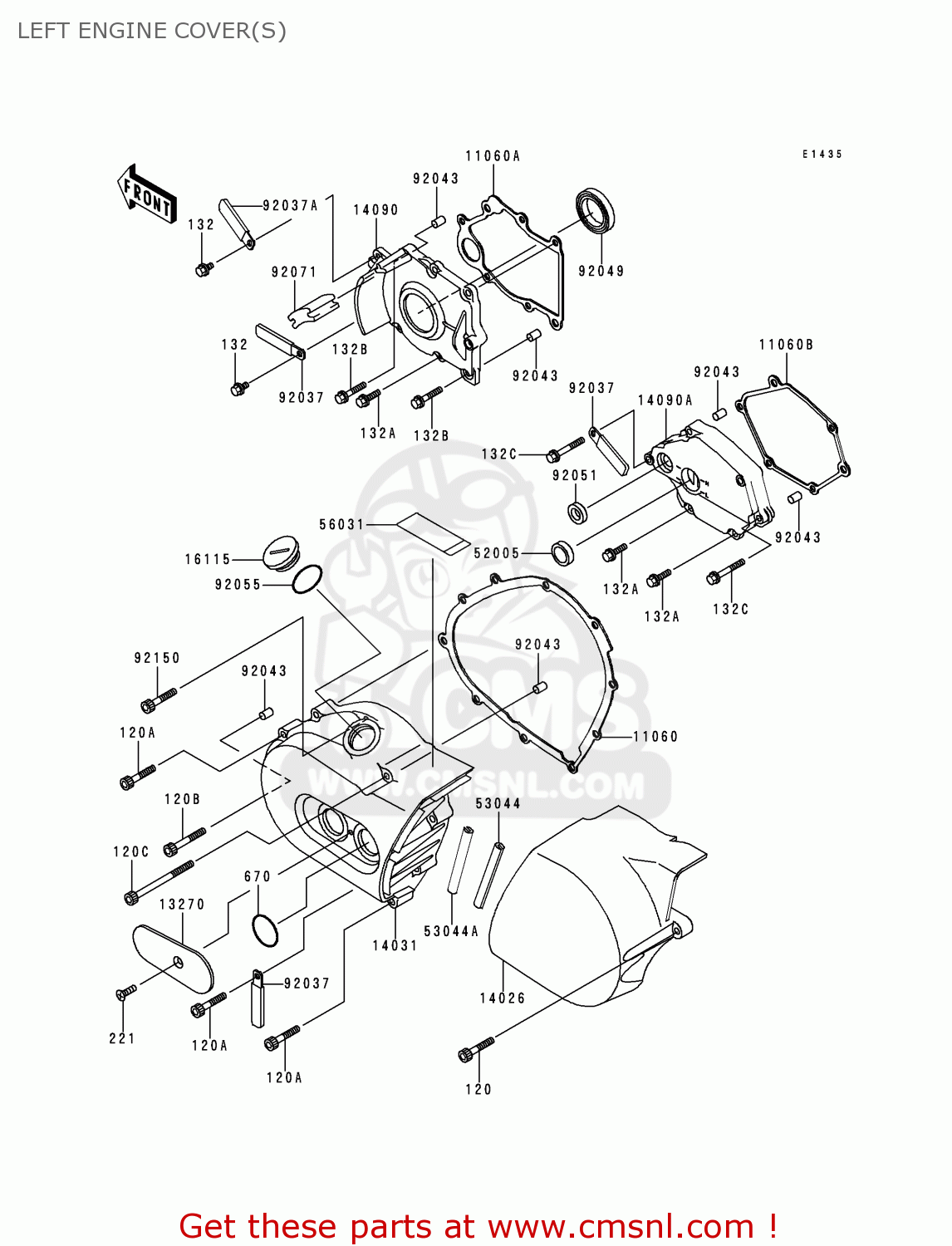

Left engine cover(s) diagram VN400C4 VULCAN CLASSIC 1994 GREECE
LEFT ENGINE COVER(S) VN400C4 VULCAN CLASSIC 1994 GREECE
×
prices are in EUR
ref
part #
description
quantity
120
120R0630
ref: 120
BOLT-SOCKET
€ 2.50
120A
120R0635
ref: 120A
BOLT-SOCKET
€ 2.50
120B
120R0645
ref: 120B
BOLT-SOCKET
€ 3.50
120C
120R0685
ref: 120C
BOLT-SOCKET
€ 5.50
132
132H0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.00
132A
132J0620
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0640
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
221
221R0614
ref: 221
SCREW-CSK-CROS,6X14
€ 2.00
670
670B3034
ref: 670
O RING
€ 1.00
11060
110601089
ref: 11060
GASKET,GENERATOR COVE (NAS)
€ 18.00
11060A
110601683
ref: 11060A
GASKET,TRANSMISSION C (NAS)
€ 14.00
11060B
110601685
ref: 11060B
GASKET,MECHANISM COVE (NAS)
€ 10.50
13270
132701397
ref: 13270
PLATE
€ 22.00
14026
140261217
ref: 14026
COVER-CHAIN
€ 299.50
14031
140311308
ref: 14031
COVER-GENERATOR
€ 349.00
14090
140901552
ref: 14090
COVER,TRANSMISSION
€ 91.00
14090A
140901559
ref: 14090A
COVER,MECHANISM
€ 87.00
16115
161151063
ref: 16115
CAP-OIL FILLER
€ 19.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
53044
530441285
ref: 53044
TRIM
€ 3.50
53044A
530441286
ref: 53044A
TRIM
€ 4.00
56031
560311894
ref: 56031
LABEL-MANUAL,OIL CAPA
€ 3.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92037A
920371993
ref: 92037A
CLAMP
€ 3.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92049
920491361
ref: 92049
SEAL-OIL
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92071
920711232
ref: 92071
GROMMET
€ 4.00
92150
921501887
ref: 92150
BOLT,SOCKET,6X35
€ 2.50
