OIL PUMP
VN400C4 VULCAN CLASSIC 1994 GREECE

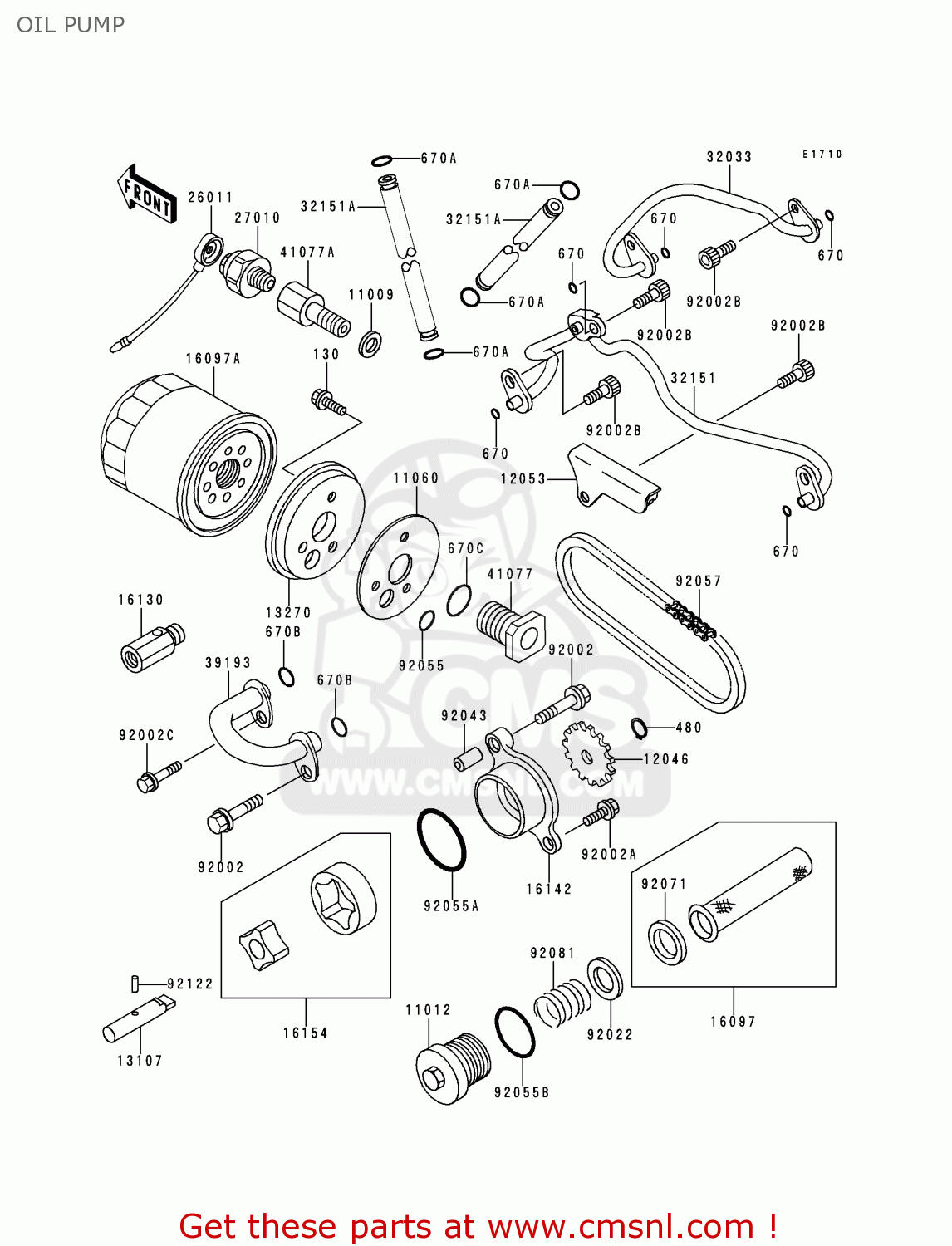

Oil pump diagram VN400C4 VULCAN CLASSIC 1994 GREECE
OIL PUMP VN400C4 VULCAN CLASSIC 1994 GREECE
×
prices are in EUR
ref
part #
description
quantity
130
130P0514
ref: 130
BOLT-FLANGED
€ 2.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50
670
670D1506
ref: 670
O RING,6MM
€ 1.00
670A
670D1507
ref: 670A
O RING,7MM
€ 1.00
670B
670D2012
ref: 670B
O RING,12MM
€ 1.50
670C
670D2020
ref: 670C
O RING,20MM
€ 4.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11012
110121461
ref: 11012
CAP,OIL FILTER
€ 32.00
11060
110601092
ref: 11060
GASKET,OIL FILTER (NAS)
€ 5.50
12046
120461079
ref: 12046
SPROCKET,OIL PUMP,19T
€ 16.00
12053
120531356
ref: 12053
GUIDE-CHAIN
€ 23.50
13107
131071131
ref: 13107
SHAFT,OIL PUMP
€ 18.50
13270
132701170
ref: 13270
PLATE,OIL FILTER
€ 19.50
16097
160971058
ref: 16097
FILTER-ASSY-OIL
€ 9.50
16097A
160971063
ref: 16097A
FILTER-ASSY-OIL
€ 10.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
€ 28.50
16142
161421061
ref: 16142
COVER-PUMP,OIL
€ 43.50
16154
161541056
ref: 16154
ROTOR-PUMP
€ 49.50
26011
260111626
ref: 26011
WIRE-LEAD
€ 12.00
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
€ 28.00
32033
320331742
ref: 32033
PIPE,OIL,FILTER-CRANK
€ 28.50
32151
321511894
ref: 32151
PIPE
€ 58.00
32151A
321511895
ref: 32151A
PIPE
€ 9.50
39193
391931021
ref: 39193
PIPE-OIL,PUMP-FILTER
€ 31.00
41077
410771052
ref: 41077
ADAPTER,OIL FILTER
€ 23.50
41077A
410771084
ref: 41077A
ADAPTER,PRESSURE SWIT
€ 9.00
92002
920021439
ref: 92002
BOLT,6X16
€ 3.00
92002A
920021534
ref: 92002A
BOLT,6X30
€ 4.00
92002B
920021592
ref: 92002B
BOLT,6X12
€ 2.50
92002C
920021612
ref: 92002C
BOLT
€ 3.00
92022
92022169
ref: 92022
WASHER-PLAIN
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92055
920551021
ref: 92055
RING-O,13X1.9
€ 4.50
92055A
920551279
ref: 92055A
RING-O,45MM
€ 4.50
92055B
920551358
ref: 92055B
RING-O
€ 4.50
92057
920571183
ref: 92057
CHAIN,PUMP,BS25HX50L
€ 11.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
€ 3.50
92081
920811862
ref: 92081
SPRING,OIL FILTER
€ 9.00
92122
921221126
ref: 92122
ROLLER,3X15.8
€ 2.50
