Genuine VN Kawasaki Parts delivered quickly!
home
CLUTCH
VN400C4 VULCAN CLASSIC 1994 GREECE

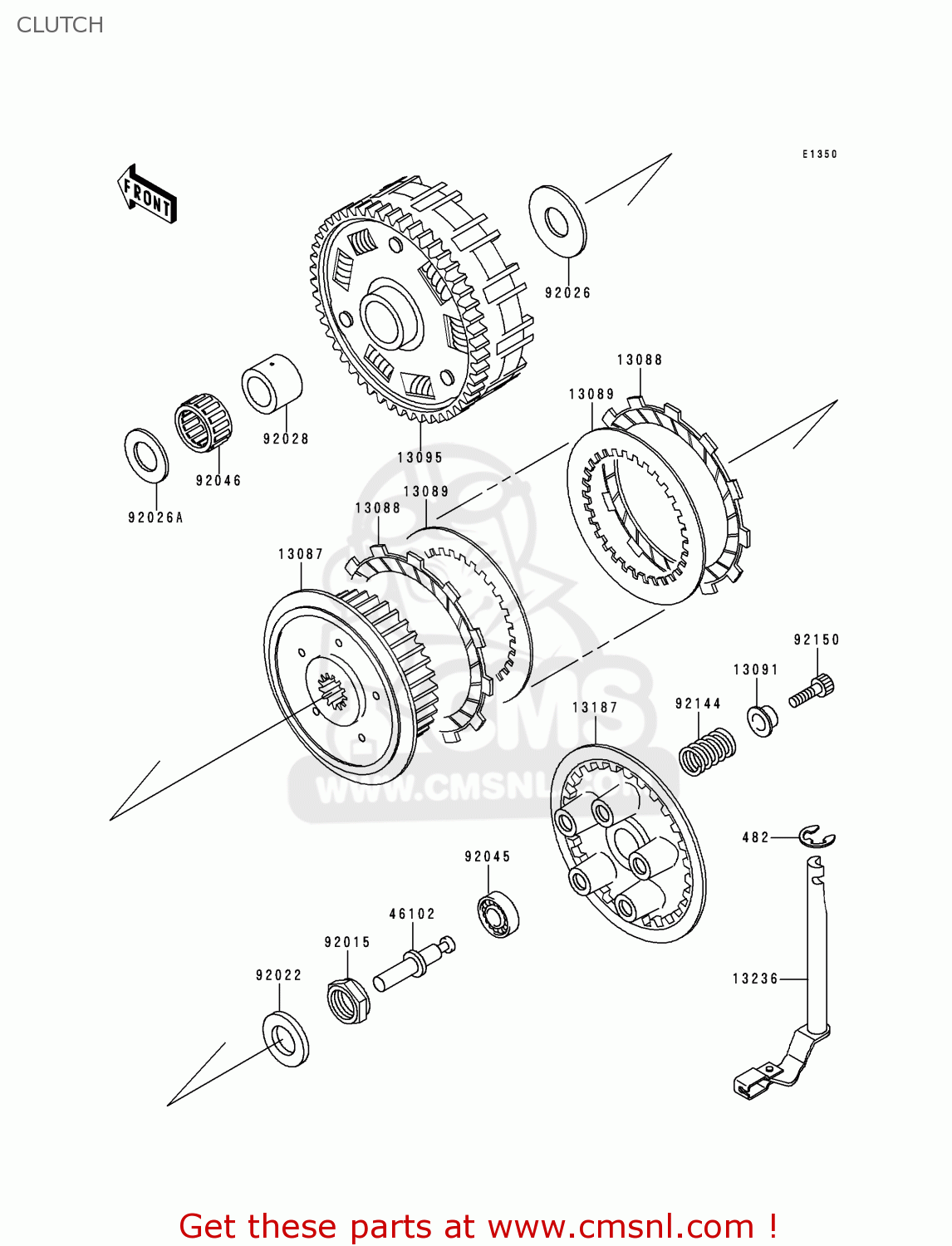

Clutch diagram VN400C4 VULCAN CLASSIC 1994 GREECE
CLUTCH VN400C4 VULCAN CLASSIC 1994 GREECE
×
prices are in EUR
ref
part #
description
quantity
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
13087
13087042
ref: 13087
HUB,CLUTCH
€ 133.00
13088
130881051
ref: 13088
PLATE-FRICTION (NAS)
€ 14.00
13089
130891004
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13091
130911840
ref: 13091
HOLDER,CLUTCH SPRING
€ 3.00
13095
130951307
ref: 13095
HOUSING-COMP-CLUTCH
€ 424.50
13187
131871006
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 58.00
13236
132361269
ref: 13236
LEVER-COMP,CLUTCH REL
€ 26.50
46102
461021374
ref: 46102
ROD,PULL
€ 13.50
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221868
ref: 92022
WASHER
€ 6.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
€ 17.00
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
€ 20.50
92144
921441763
ref: 92144
SPRING,CLUTCH
€ 6.50
92150
921501713
ref: 92150
BOLT
€ 3.00
