Genuine VN Kawasaki Parts delivered quickly!


SWINGARM

VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

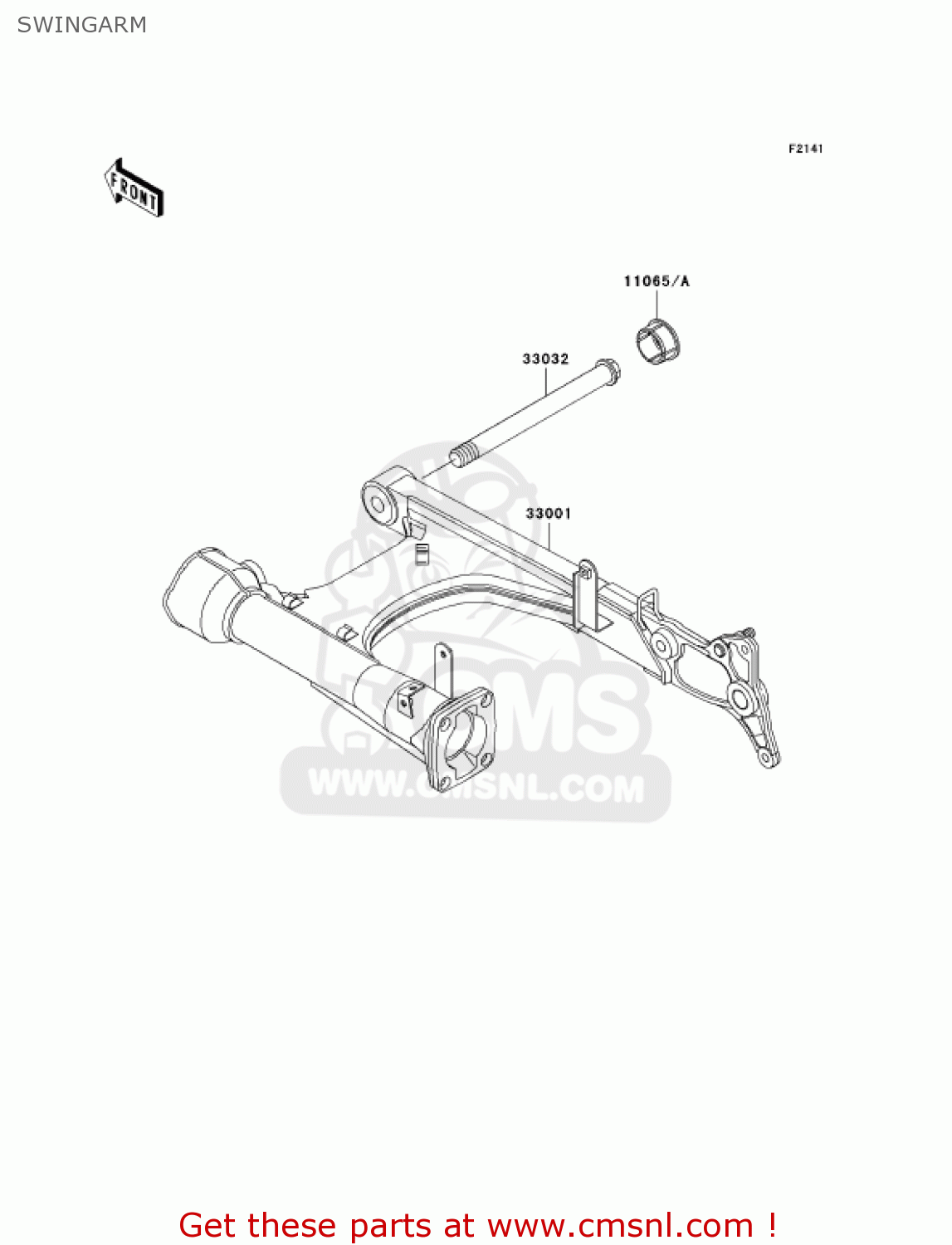

Swingarm diagram VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA

SWINGARM VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
SWINGARM VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
SWINGARM VN1500R5 VULCAN 1500 DRIFTER 2005 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11065
110651259
ref: 11065
CAP,SWING ARM
110651259
€ 3.50
33001
330011561
ref: 33001
ARM-COMP-SWING
€ 895.00
33032
330321181
ref: 33032
SHAFT-SWING ARM
€ 47.50
